Bladder rupture: pelvic fracture + cystogram

7 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

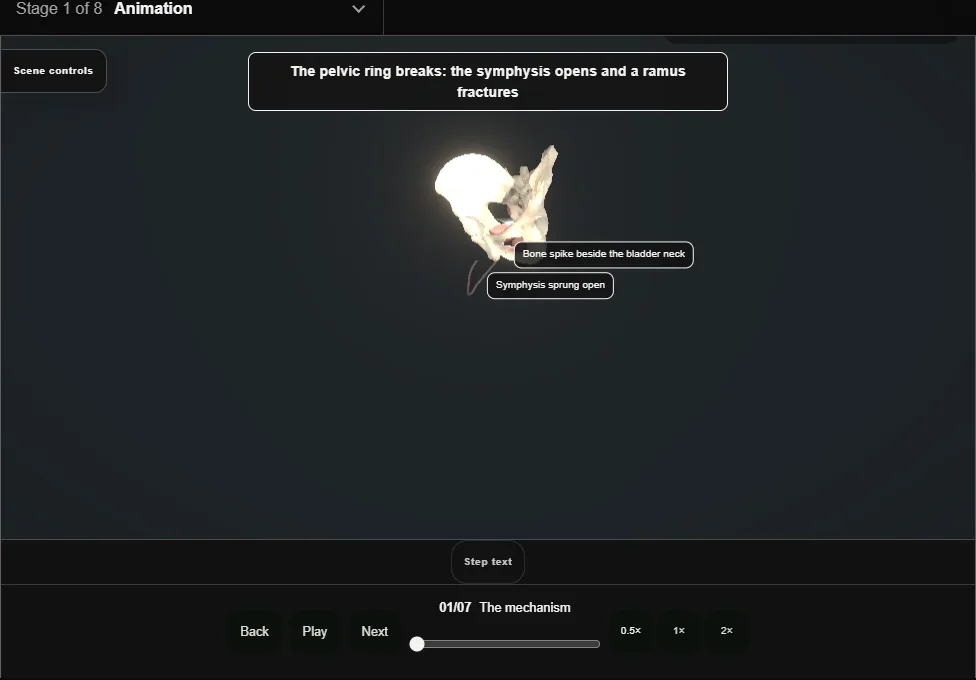

    The mechanism

    Bladder rupture: pelvic fracture + cystogram. Step 1: The mechanism. Captured frame from the interactive animation.
    • Blunt trauma breaks the pelvic ring: the symphysis springs open, rami fracture, and the bladder is torn either against the bone at its neck or burst at the peritonealised dome by pressure.
    • The same force decides both patterns.
  2. 02

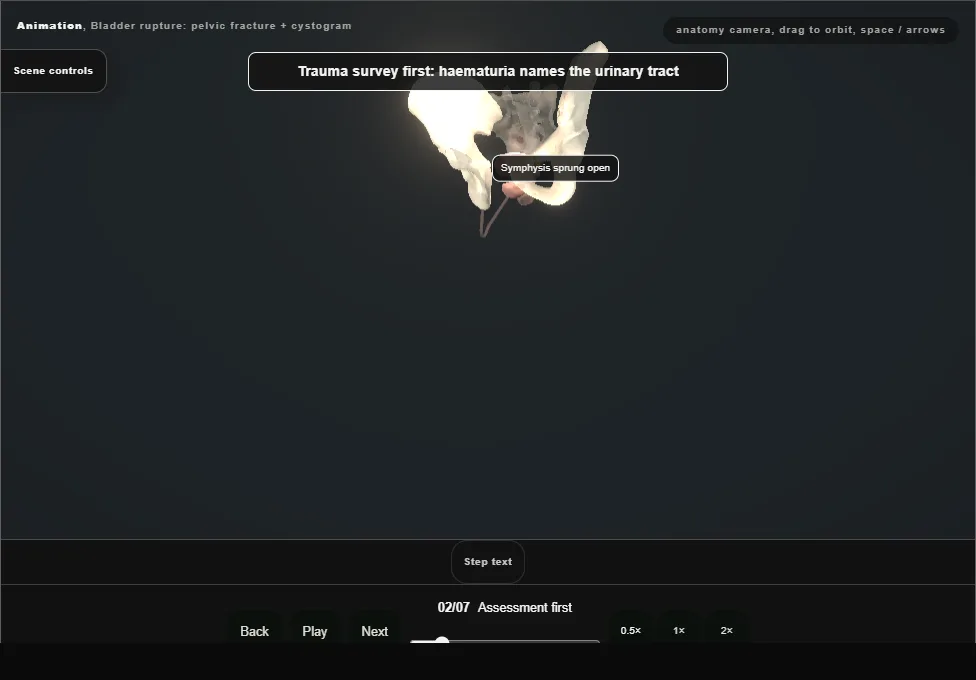

    Assessment first

    Bladder rupture: pelvic fracture + cystogram. Step 2: Assessment first. Captured frame from the interactive animation.
    • Trauma survey before urology: gross haematuria names the urinary tract, but bleeding and shock are managed by the whole team.
    • Blood at the meatus changes the plan to a urethral study before any catheter.
  3. 03

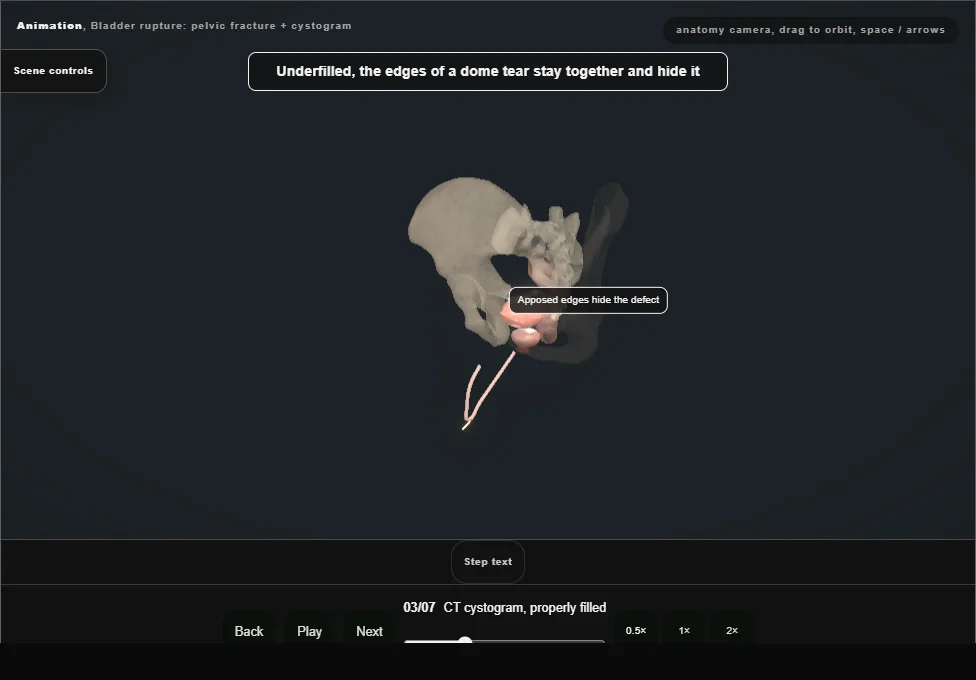

    CT cystogram, properly filled

    Bladder rupture: pelvic fracture + cystogram. Step 3: CT cystogram, properly filled. Captured frame from the interactive animation.
    • Retrograde contrast with the bladder filled to discomfort and the catheter clamped.
    • An underfilled bladder wall apposes the tear and hides it: the underfilled cystogram is a false-negative machine.
  4. 04

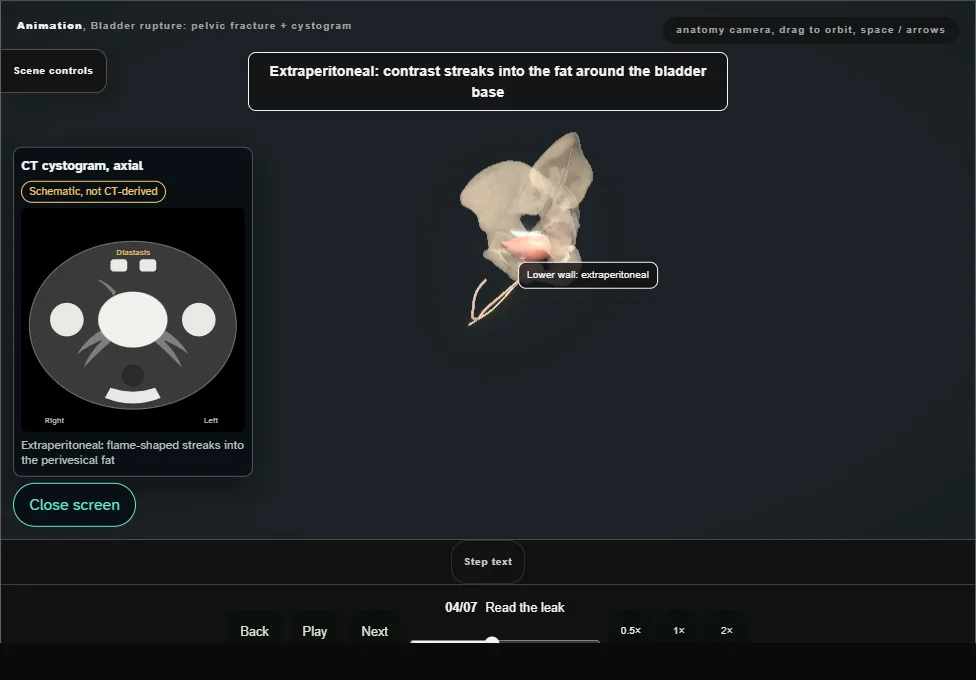

    Read the leak

    Bladder rupture: pelvic fracture + cystogram. Step 4: Read the leak. Captured frame from the interactive animation.
    • Extraperitoneal contrast stripes into the pelvic haematoma around the neck.
    • Intraperitoneal contrast outlines bowel loops: the dome tear has burst into the peritoneal cavity.
    • The two leaks go to two different theatres.
  5. 05

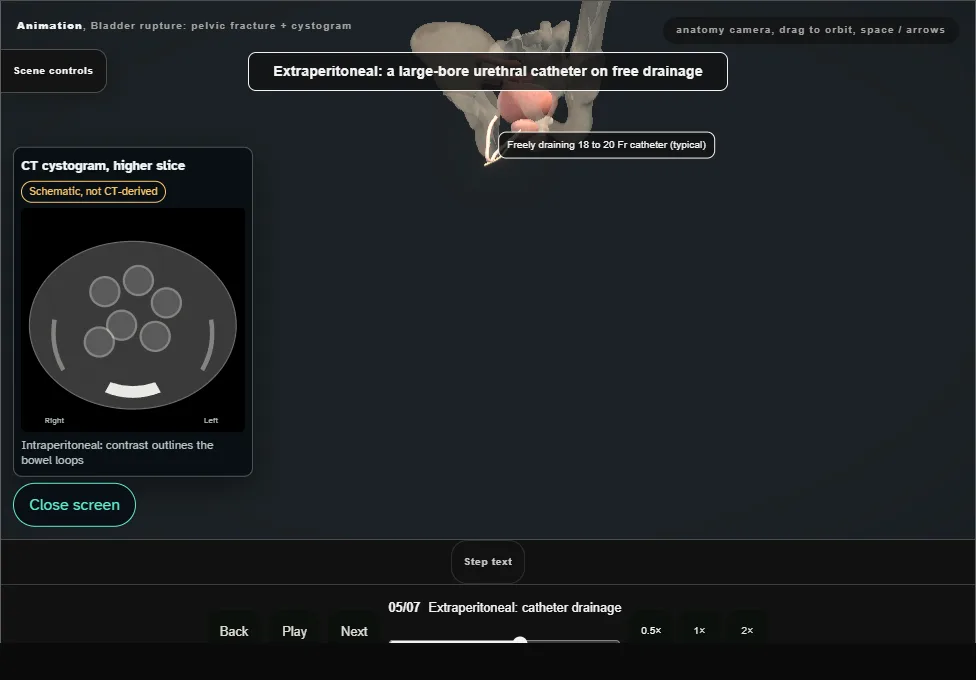

    Extraperitoneal: catheter drainage

    Bladder rupture: pelvic fracture + cystogram. Step 5: Extraperitoneal: catheter drainage. Captured frame from the interactive animation.
    • Extraperitoneal rupture heals on a freely draining catheter.
    • The bladder is closed by the body, not the surgeon, provided the urine is diverted and the catheter never blocks.
    • The exceptions go to theatre: bladder neck involvement, a bone fragment in the wall, a rectal or vaginal injury, or a pelvis already being opened for fixation.
  6. 06

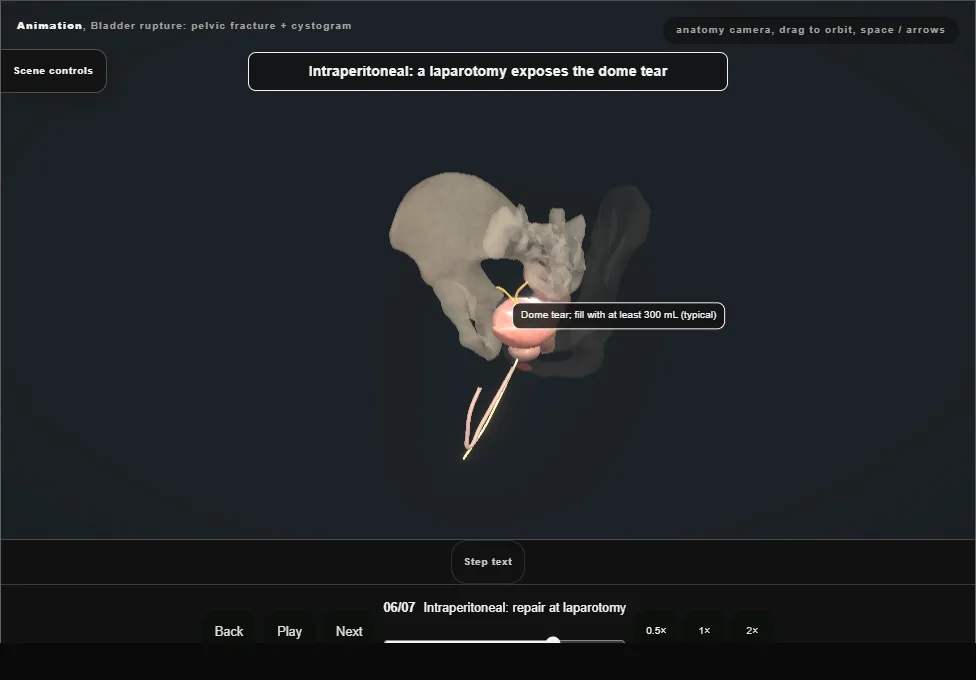

    Intraperitoneal: repair at laparotomy

    Bladder rupture: pelvic fracture + cystogram. Step 6: Intraperitoneal: repair at laparotomy. Captured frame from the interactive animation.
    • Intraperitoneal rupture is a laparotomy: the dome tear is closed in two absorbable layers, the bladder neck is inspected, and a catheter keeps the repair at rest.
  7. 07

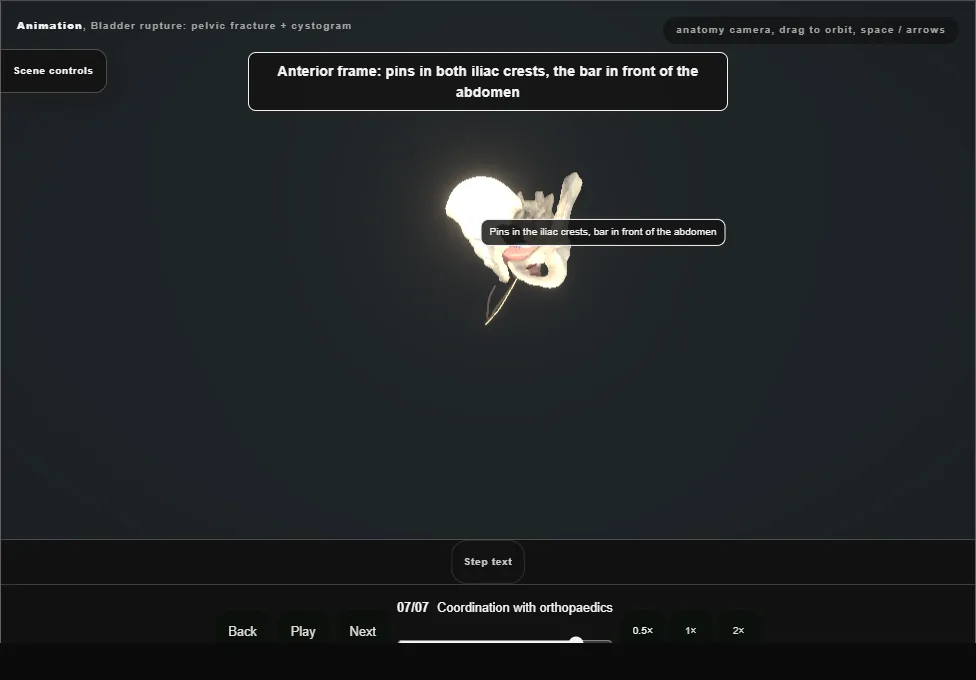

    Coordination with orthopaedics

    Bladder rupture: pelvic fracture + cystogram. Step 7: Coordination with orthopaedics. Captured frame from the interactive animation.
    • The external fixator pins and bar own the same lower abdominal wall as the suprapubic corridor.
    • Fixator position and catheter route are decided in one conversation, not two.
