Revision sheet

Urogenital sinus and cloacal reconstruction

8 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

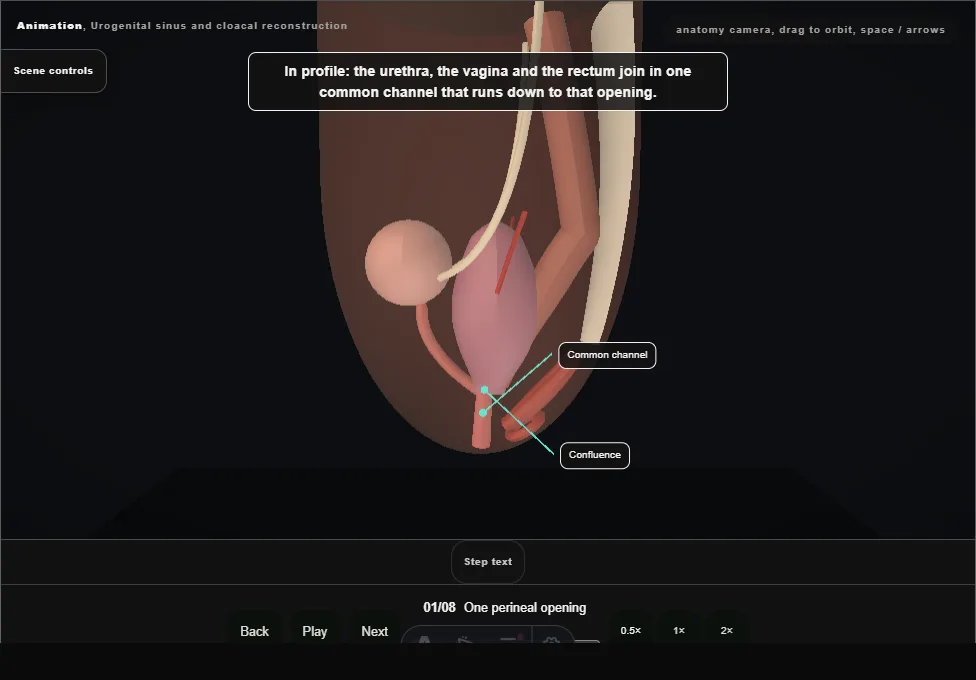

  1. 01

    One perineal opening

    Urogenital sinus and cloacal reconstruction. Step 1: One perineal opening. Captured frame from the interactive animation.
    • A newborn girl with a single perineal opening and a distended lower abdomen.
    • The urethra, the vagina and the rectum join in one common channel.
    • In a urogenital sinus the rectum opens separately; in a cloaca it opens into the channel too.
    • The vagina is distended by a hydrocolpos.

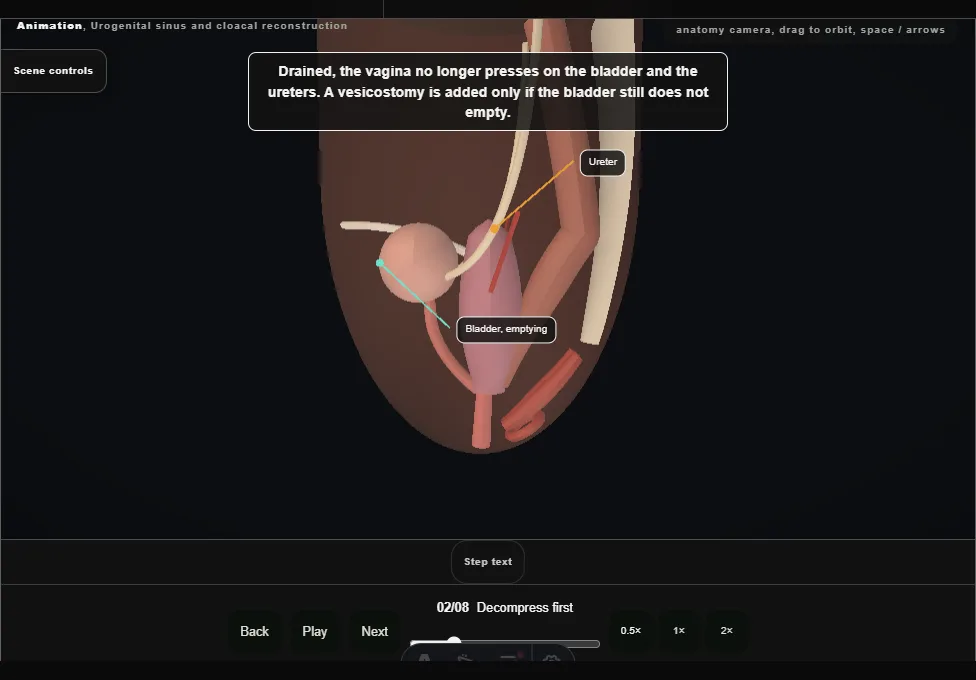

  2. 02

    Decompress first

    Urogenital sinus and cloacal reconstruction. Step 2: Decompress first. Captured frame from the interactive animation.
    • Nothing is reconstructed in the newborn.
    • A divided colostomy diverts the stool, leaving distal bowel for the pull-through, and the hydrocolpos is drained by a vaginostomy so that it no longer obstructs the bladder and ureters.
    • A vesicostomy only if the bladder still does not empty.

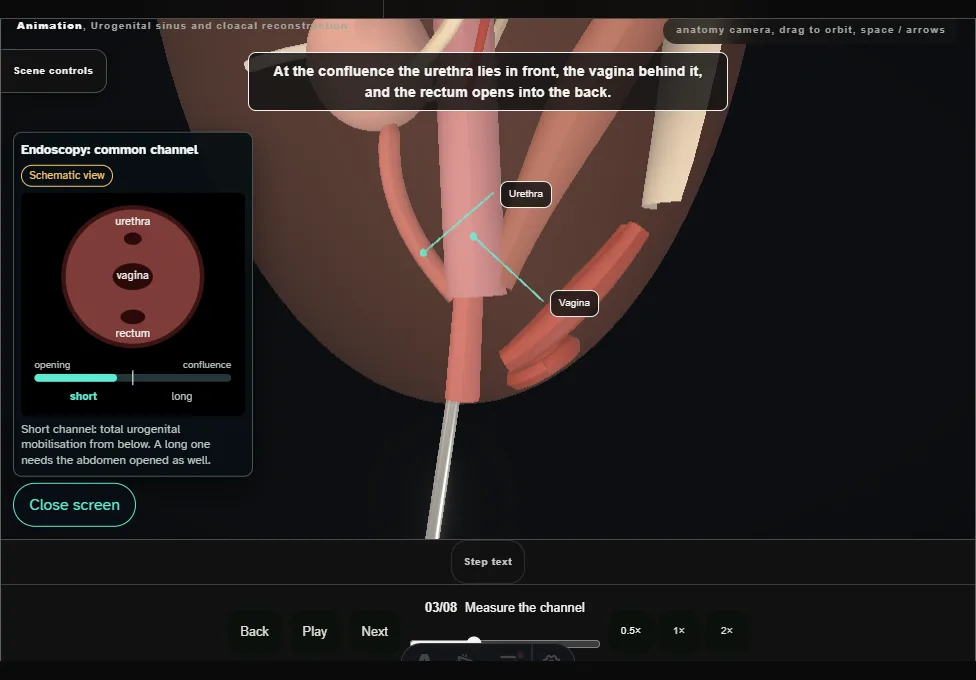

  3. 03

    Measure the channel

    Urogenital sinus and cloacal reconstruction. Step 3: Measure the channel. Captured frame from the interactive animation.
    • Endoscopy through the single opening passes up the common channel to the confluence.
    • The length of the common channel decides the repair: a short channel is repaired from below, a long one usually needs the abdomen opened as well.
    • The plan is agreed by the specialist team with the parents.

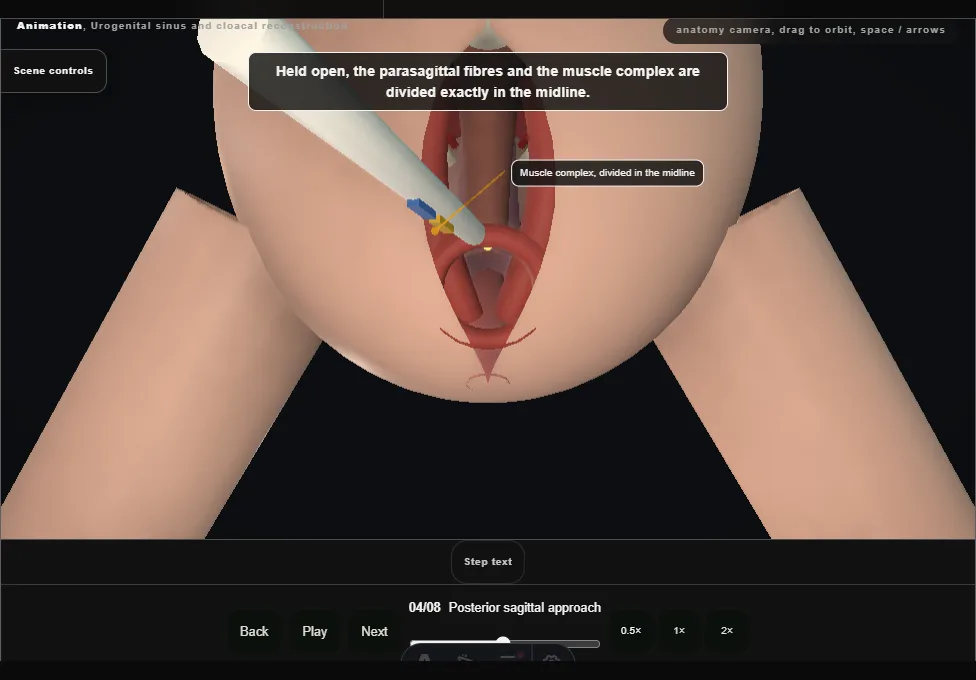

  4. 04

    Posterior sagittal approach

    Urogenital sinus and cloacal reconstruction. Step 4: Posterior sagittal approach. Captured frame from the interactive animation.
    • Months later, prone with the pelvis raised.
    • The muscle stimulator maps the sphincter on the skin.
    • The incision runs in the midline from the coccyx to the single opening, and the parasagittal fibres and the muscle complex are divided exactly in the midline, so that each half can be brought back together.

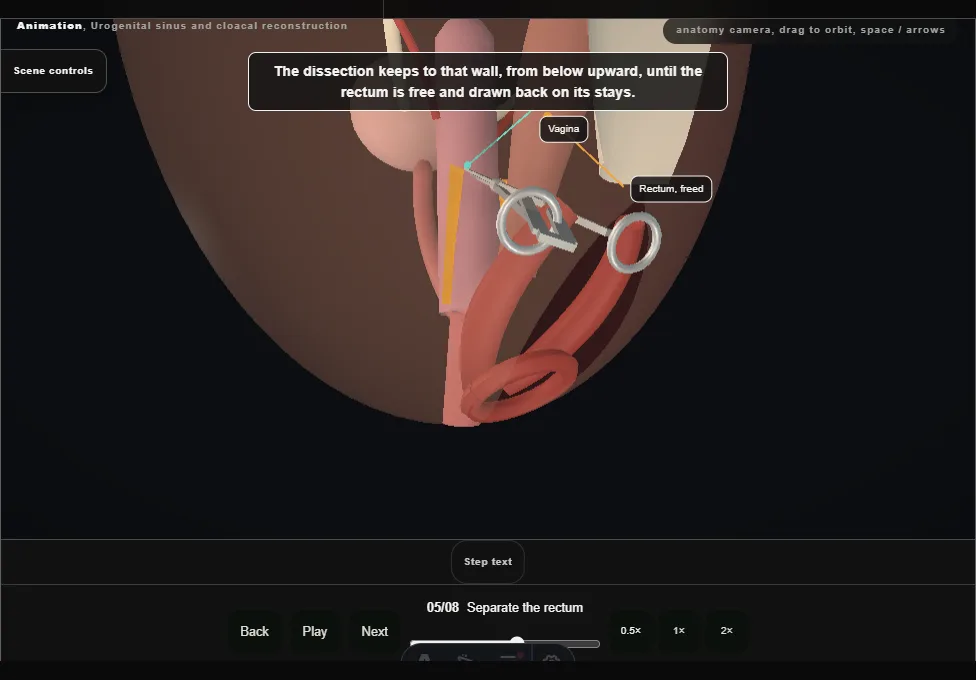

  5. 05

    Separate the rectum

    Urogenital sinus and cloacal reconstruction. Step 5: Separate the rectum. Captured frame from the interactive animation.
    • The rectum opens into the back of the channel and shares a common wall with the vagina.
    • It is separated from the vagina along that wall, from below upward, until it is free, and the opening it leaves in the vagina is closed.

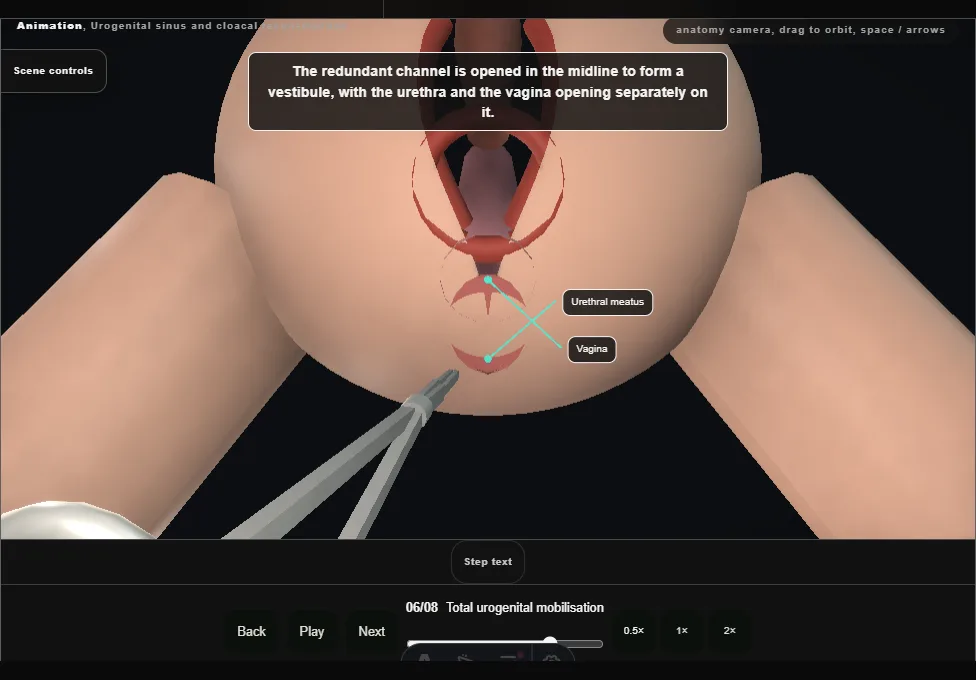

  6. 06

    Total urogenital mobilisation

    Urogenital sinus and cloacal reconstruction. Step 6: Total urogenital mobilisation. Captured frame from the interactive animation.
    • Stays go round the edge of the channel, and the urethra and the vagina are mobilised together as one block and brought down to the perineum.
    • The redundant channel is opened in the midline to form a vestibule.
    • For a long channel this is not enough: the vagina is separated and pulled through or replaced.

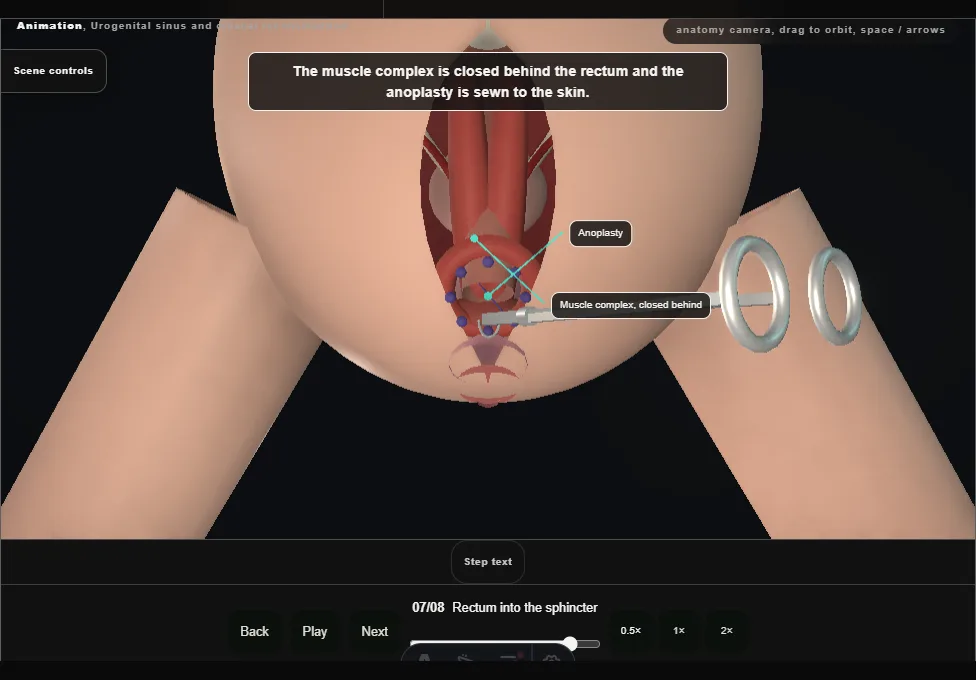

  7. 07

    Rectum into the sphincter

    Urogenital sinus and cloacal reconstruction. Step 7: Rectum into the sphincter. Captured frame from the interactive animation.
    • The stimulator finds the limits of the sphincter complex again.
    • The perineal body is rebuilt between the vagina and the anal site, and the rectum is brought down within the limits of the sphincter complex.
    • The muscle complex is closed behind it and the anoplasty is sewn.

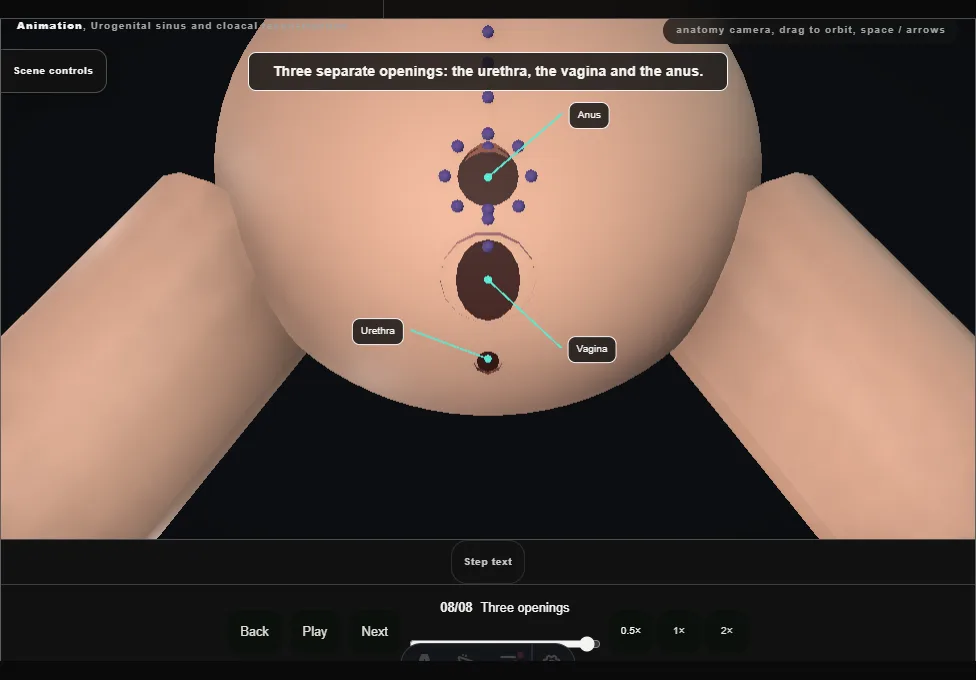

  8. 08

    Three openings

    Urogenital sinus and cloacal reconstruction. Step 8: Three openings. Captured frame from the interactive animation.
    • The wound is closed from the coccyx down.
    • At the end there are three separate openings: the urethra, the vagina and the anus.
    • Follow-up is lifelong: the kidneys, bladder emptying and continence, bowel control, menstruation, and later sexual and psychological health.
