Revision sheet

The forgotten stent

6 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

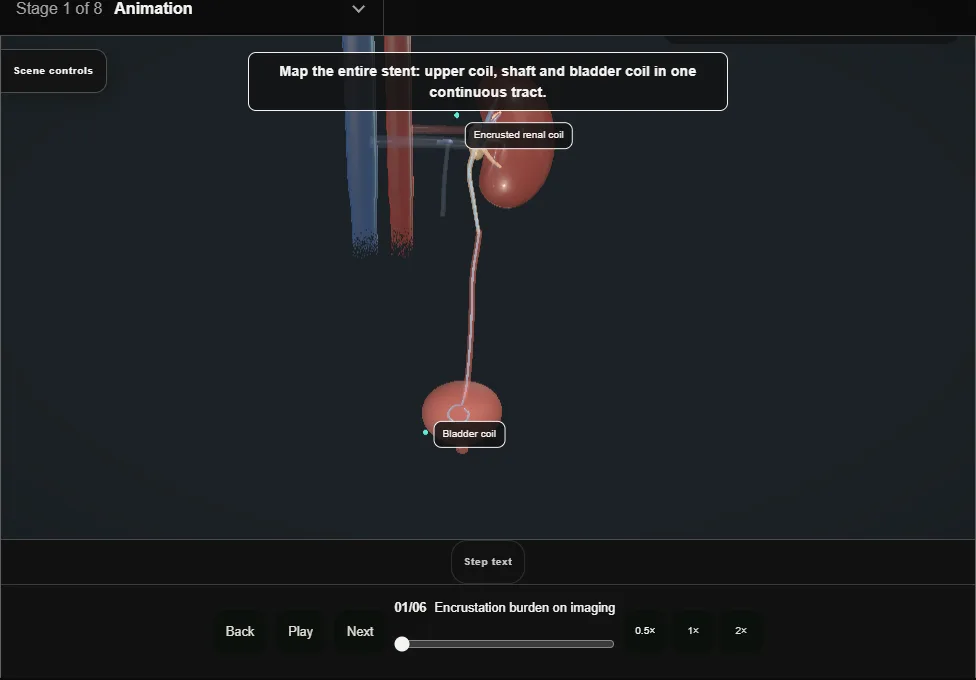

    Encrustation burden on imaging

    The forgotten stent. Step 1: Encrustation burden on imaging. Captured frame from the interactive animation.
    • A plain film with a cross-sectional map: every encrusted segment of the stent is located before any instrument is picked up.
    • The question imaging answers is where is it free, and where is it welded: the strategy follows the answer.
  2. 02

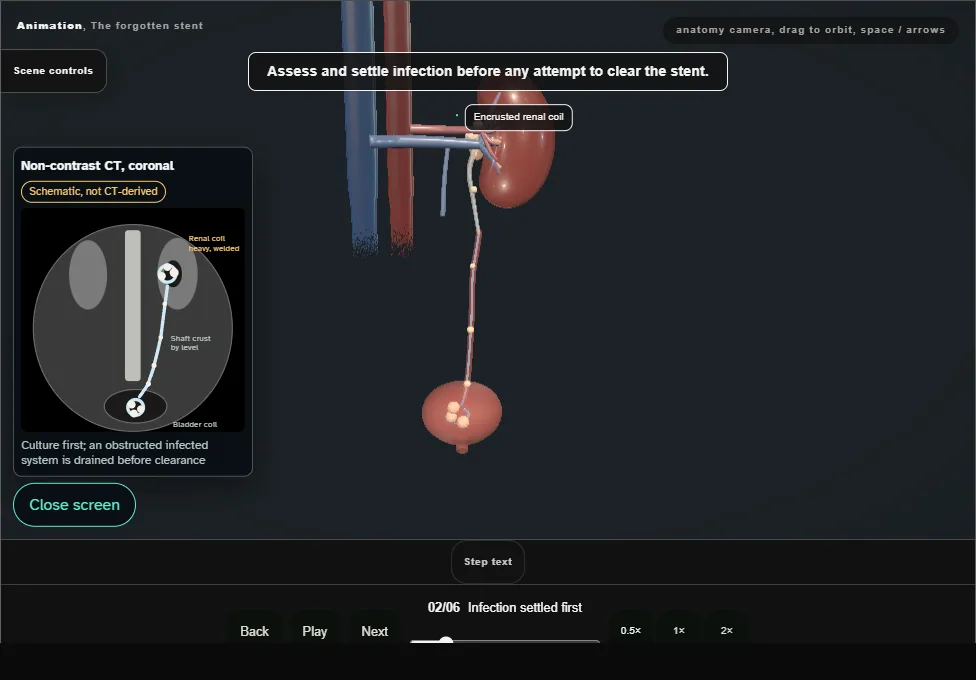

    Infection settled first

    The forgotten stent. Step 2: Infection settled first. Captured frame from the interactive animation.
    • Culture before instrumentation, every time.
    • An obstructed infected system behind an encrusted stent is drained and treated before clearance is attempted: opening a closed infection under pressure is how a stent problem becomes a septic problem.
  3. 03

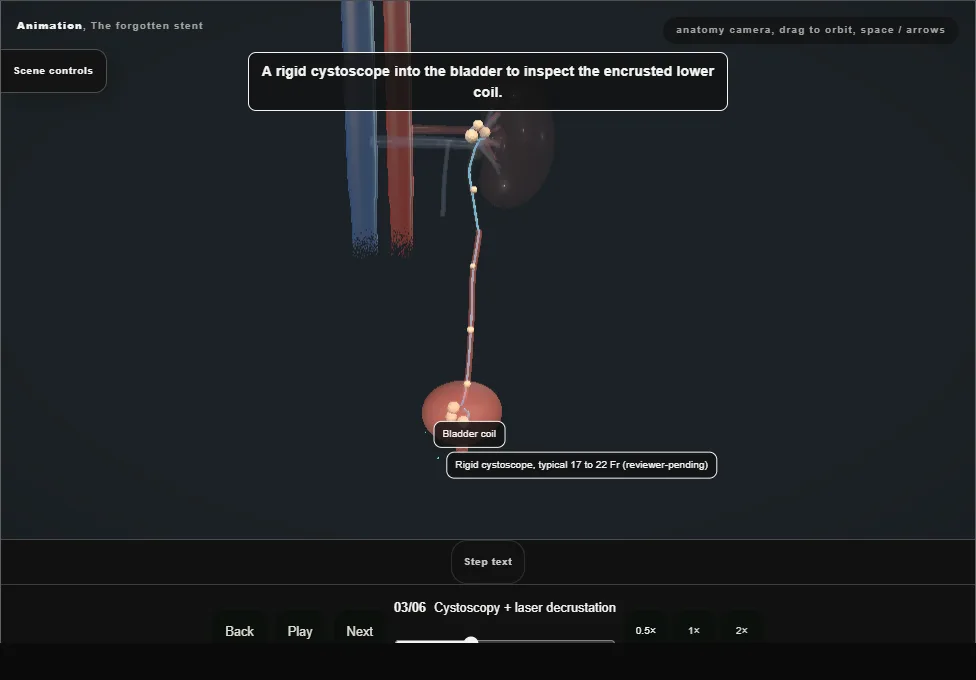

    Cystoscopy + laser decrustation

    The forgotten stent. Step 3: Cystoscopy + laser decrustation. Captured frame from the interactive animation.
    • The scope reaches the bladder coil and the laser fibre peels its calcification, one deposit at a time, until the coil is soft enough to move.
    • Decrustation first, traction second: the order is not negotiable.
  4. 04

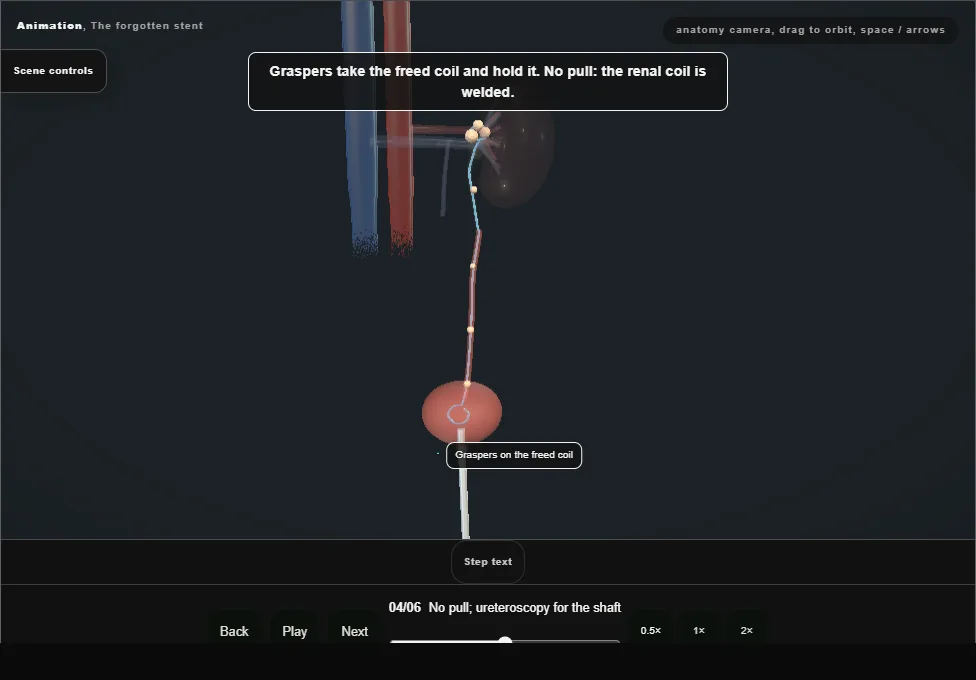

    No pull; ureteroscopy for the shaft

    The forgotten stent. Step 4: No pull; ureteroscopy for the shaft. Captured frame from the interactive animation.
    • Graspers hold the freed coil, but the renal coil is welded, so no traction: the ureter must never be the thing that yields.
    • A semirigid ureteroscope then clears the shaft crust alongside the stent, level by level.
  5. 05

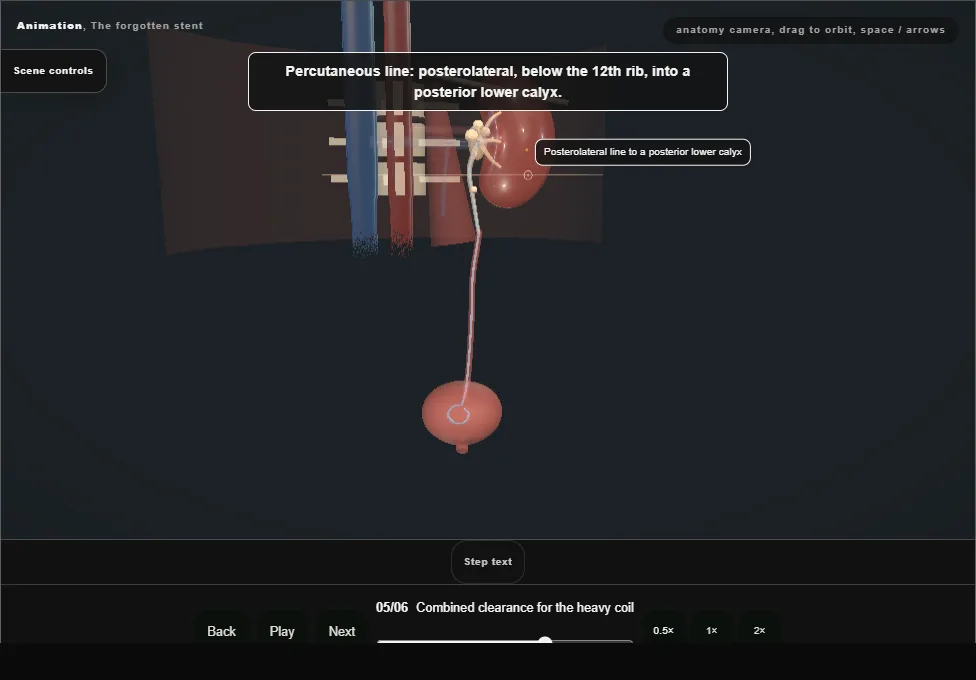

    Combined clearance for the heavy coil

    The forgotten stent. Step 5: Combined clearance for the heavy coil. Captured frame from the interactive animation.
    • The same anaesthetic continues: a straight posterolateral tract into a posterior lower calyx, a flexible nephroscope decrusts the renal coil and the upper ureter, then graspers through the cystoscope bring the whole stent out through the ureter and urethra in one piece.
  6. 06

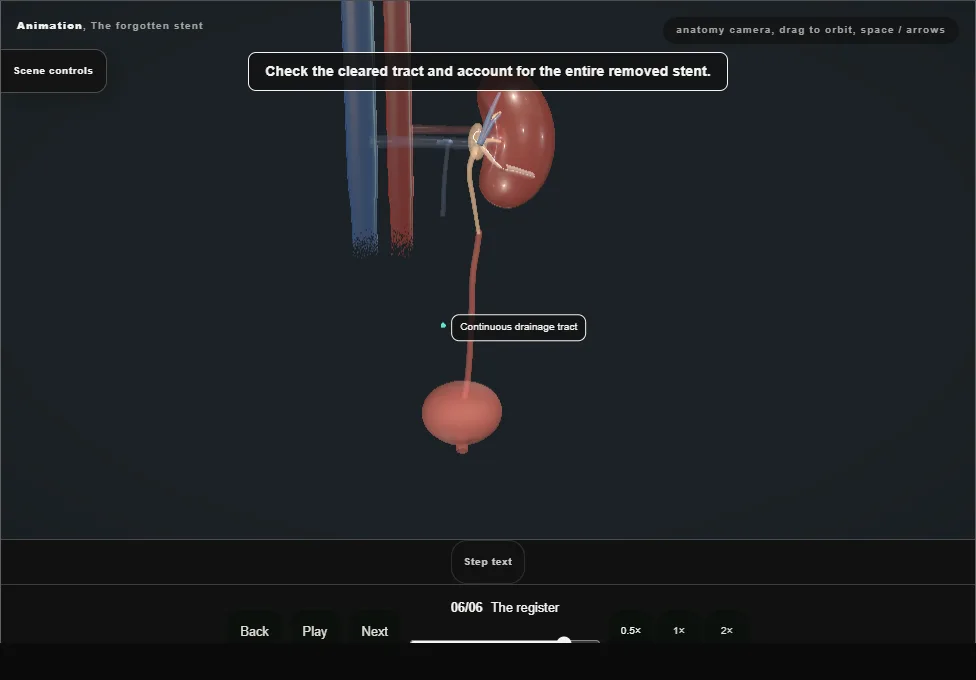

    The register

    The forgotten stent. Step 6: The register. Captured frame from the interactive animation.
    • The operation that ends this case started months ago as an entry: removal date recorded at insertion, patient diary, stent register.
    • Every forgotten stent is a systems failure, not a patient failure.
