Fournier gangrene: debridement and reconstruction

9 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

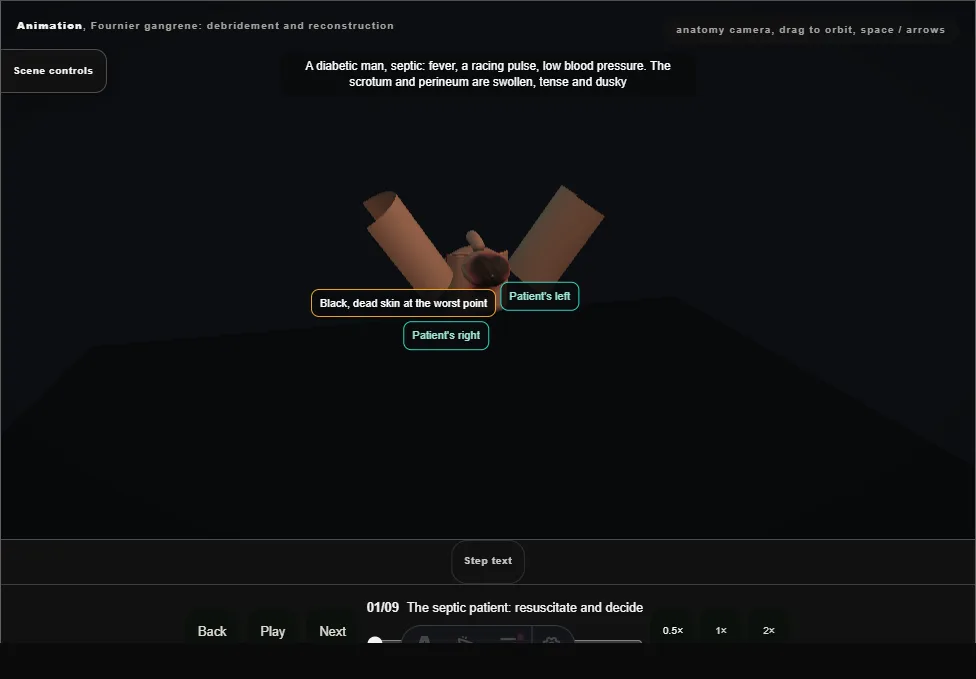

    The septic patient: resuscitate and decide

    Fournier gangrene: debridement and reconstruction. Step 1: The septic patient: resuscitate and decide. Captured frame from the interactive animation.
    • A septic man with a tense, crepitant, dusky scrotum and perineum and a patch of black skin.
    • Cultures, broad-spectrum antibiotics and fluids start at once; theatre is not delayed.
    • The FGSI predicts outcome; it does not decide on surgery.
  2. 02

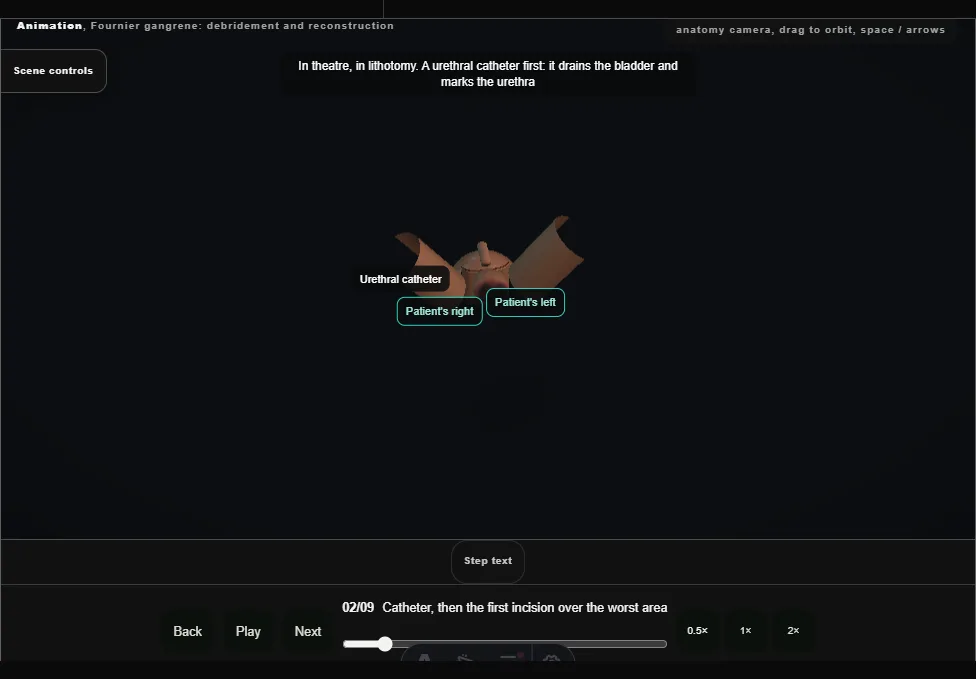

    Catheter, then the first incision over the worst area

    Fournier gangrene: debridement and reconstruction. Step 2: Catheter, then the first incision over the worst area. Captured frame from the interactive animation.
    • In lithotomy, a urethral catheter first: it drains the bladder and marks the urethra.
    • The first incision goes straight over the worst area, through skin and subcutaneous tissue to the fascia.
  3. 03

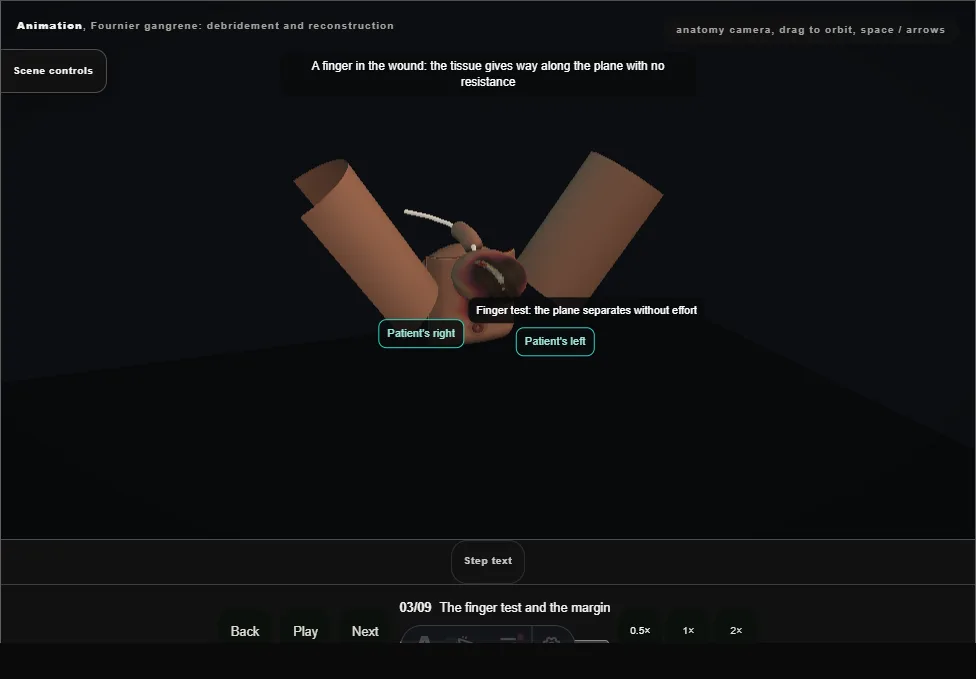

    The finger test and the margin

    Fournier gangrene: debridement and reconstruction. Step 3: The finger test and the margin. Captured frame from the interactive animation.
    • A finger passes along the plane with no resistance; grey dishwater fluid, no bleeding.
    • The skin looks better than the fascia beneath it.
    • The margin is marked where tissue stops giving way and bleeds, and specimens go to microbiology.
  4. 04

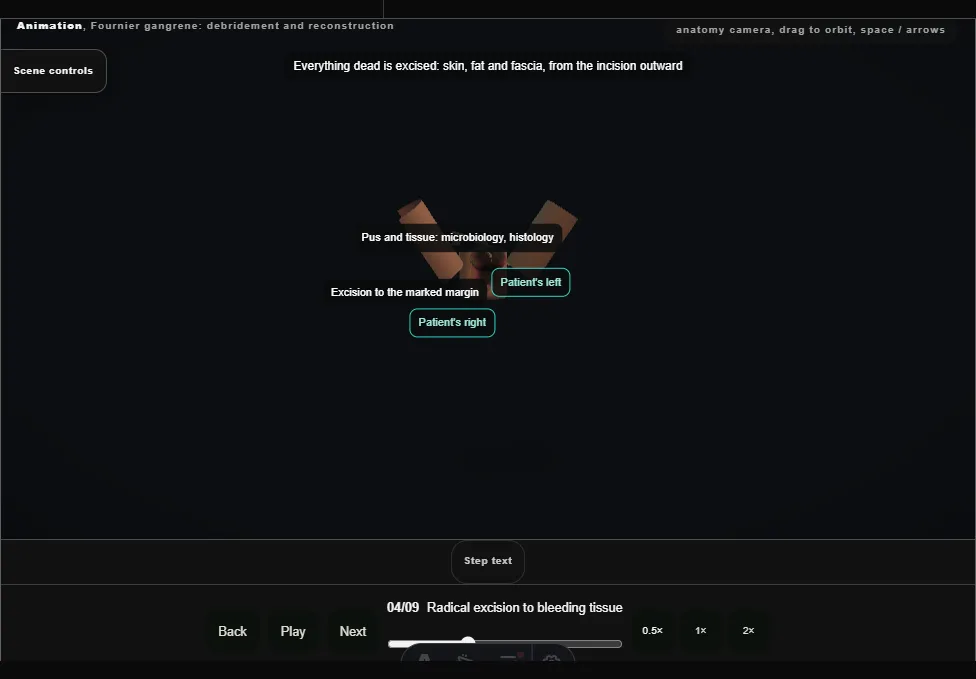

    Radical excision to bleeding tissue

    Fournier gangrene: debridement and reconstruction. Step 4: Radical excision to bleeding tissue. Captured frame from the interactive animation.
    • All dead skin, fat and fascia are excised from the incision outward, along Colles fascia onto the perineum and Scarpa fascia toward the groin, until every edge bleeds and the fascia is healthy.
  5. 05

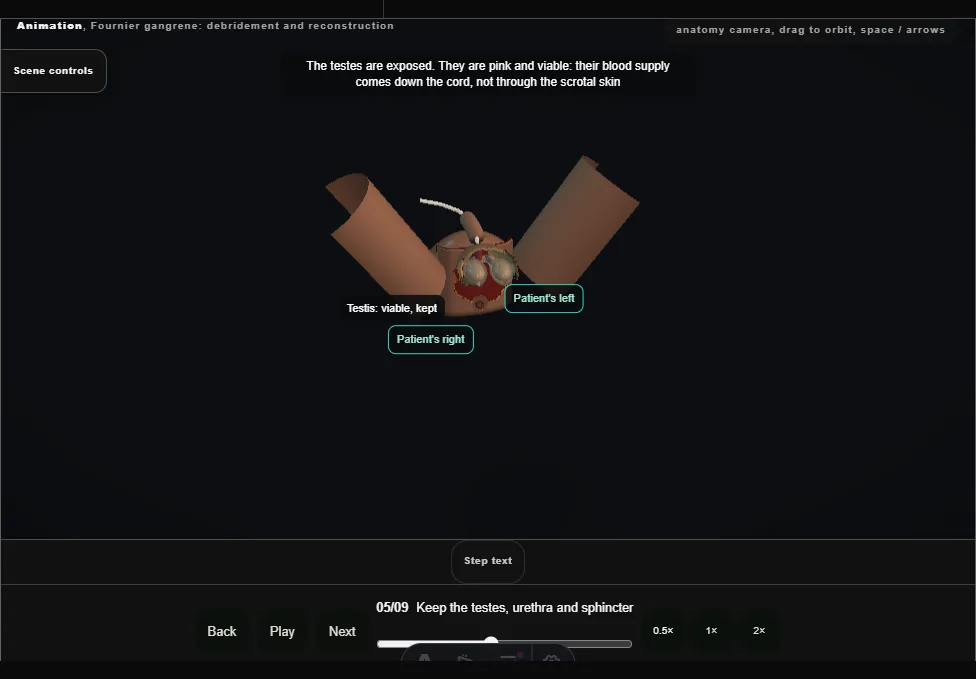

    Keep the testes, urethra and sphincter

    Fournier gangrene: debridement and reconstruction. Step 5: Keep the testes, urethra and sphincter. Captured frame from the interactive animation.
    • The testes are exposed but viable on their own blood supply down the cord, and kept.
    • The urethra lies under the bulbospongiosus over its catheter.
    • The anal sphincter is preserved; diathermy to bleeding points.
  6. 06

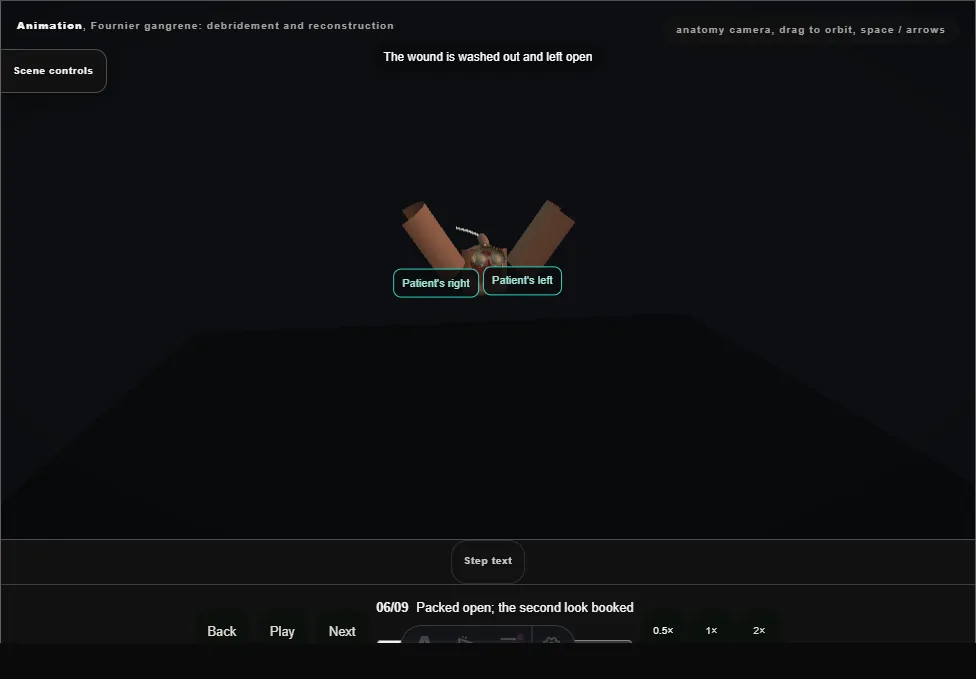

    Packed open; the second look booked

    Fournier gangrene: debridement and reconstruction. Step 6: Packed open; the second look booked. Captured frame from the interactive animation.
    • Washed out and packed open with moist gauze, the testes wrapped in it.
    • Back to intensive care, with a second look in 24 to 48 hours, sooner if he worsens.
  7. 07

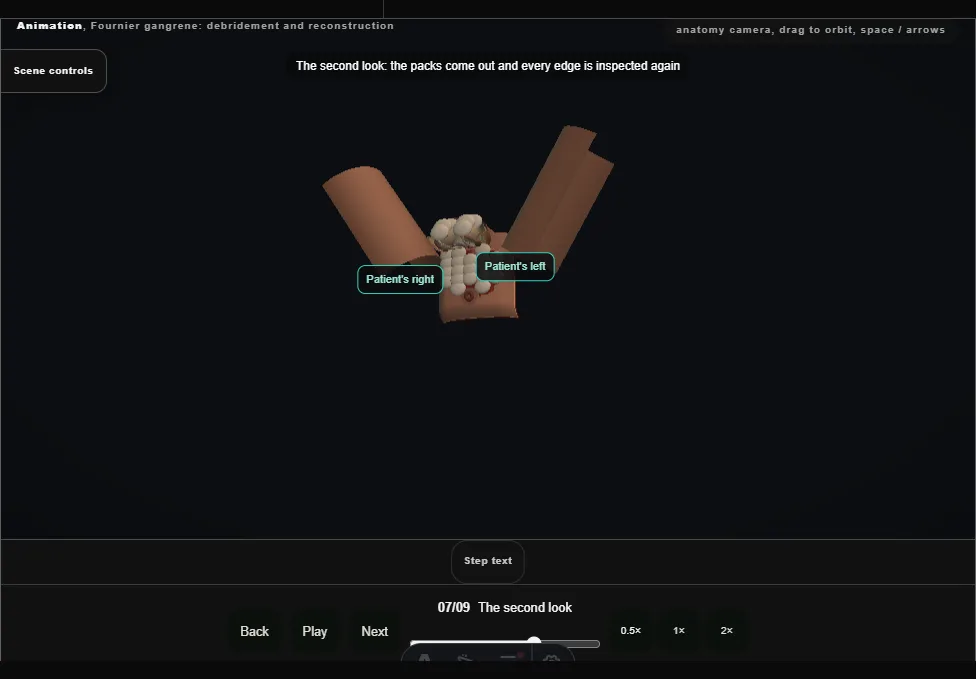

    The second look

    Fournier gangrene: debridement and reconstruction. Step 7: The second look. Captured frame from the interactive animation.
    • Packs out and every edge inspected again.
    • A residual grey edge is trimmed back to bleeding tissue and the wound packed again.
    • Debridement is repeated as often as it takes.
  8. 08

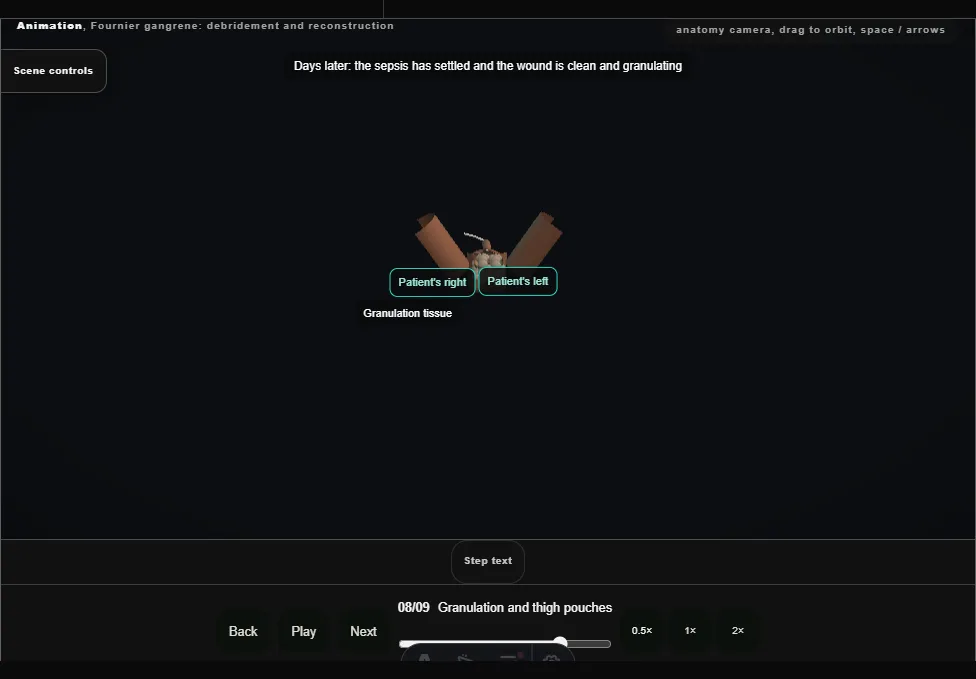

    Granulation and thigh pouches

    Fournier gangrene: debridement and reconstruction. Step 8: Granulation and thigh pouches. Captured frame from the interactive animation.
    • Days later the wound is clean and granulating.
    • Each testis is tunnelled into a pouch under the skin of the upper thigh, where it is covered while the defect is reconstructed.
  9. 09

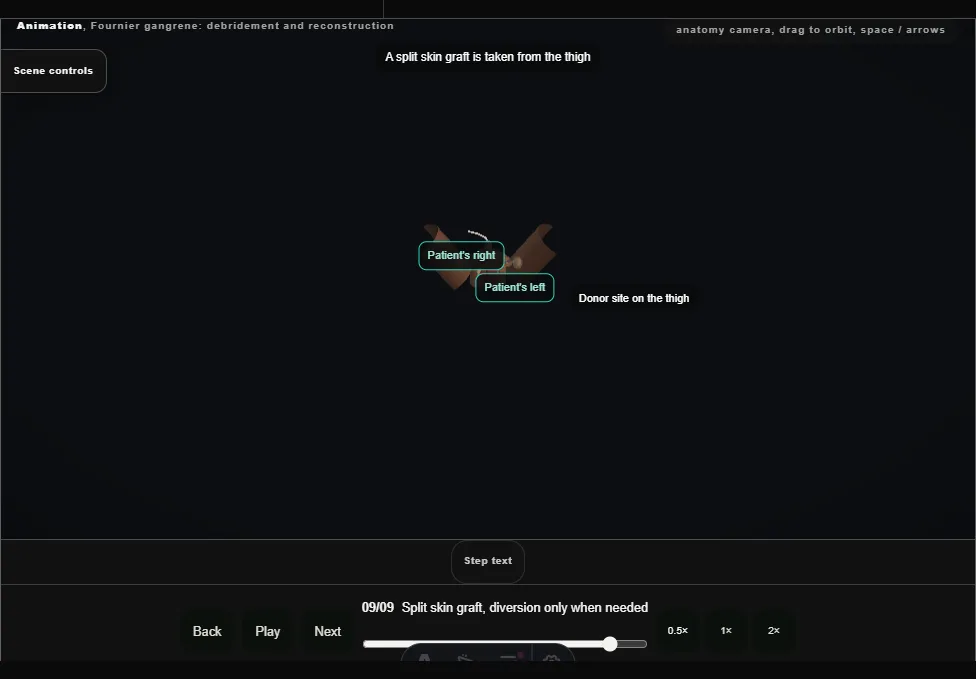

    Split skin graft, diversion only when needed

    Fournier gangrene: debridement and reconstruction. Step 9: Split skin graft, diversion only when needed. Captured frame from the interactive animation.
    • A meshed split skin graft from the thigh covers the granulating wound.
    • A suprapubic catheter or a defunctioning colostomy is reserved for urethral or anorectal involvement, not used by default.
