Revision sheet

Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty

8 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

    The native anatomy

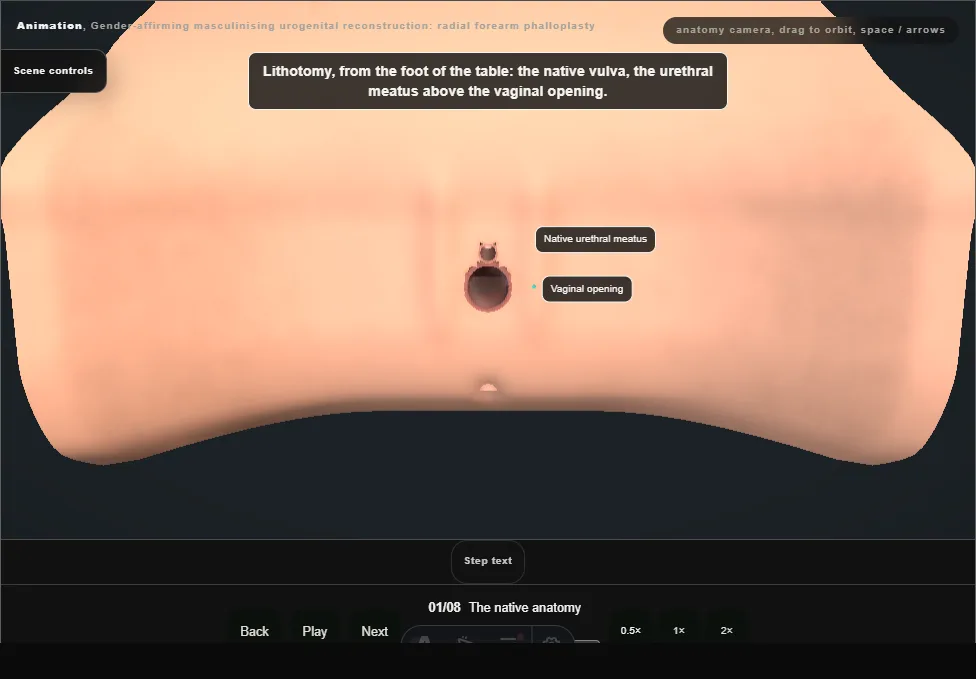

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 1: The native anatomy. Captured frame from the interactive animation.
    • Lithotomy.
    • A catheter passes up the native urethra into the bladder.
    • The native urethra and bladder neck are the continence mechanism; the new urethra is joined to the meatus and never built through them.
  2. 02

    Vaginectomy and closure

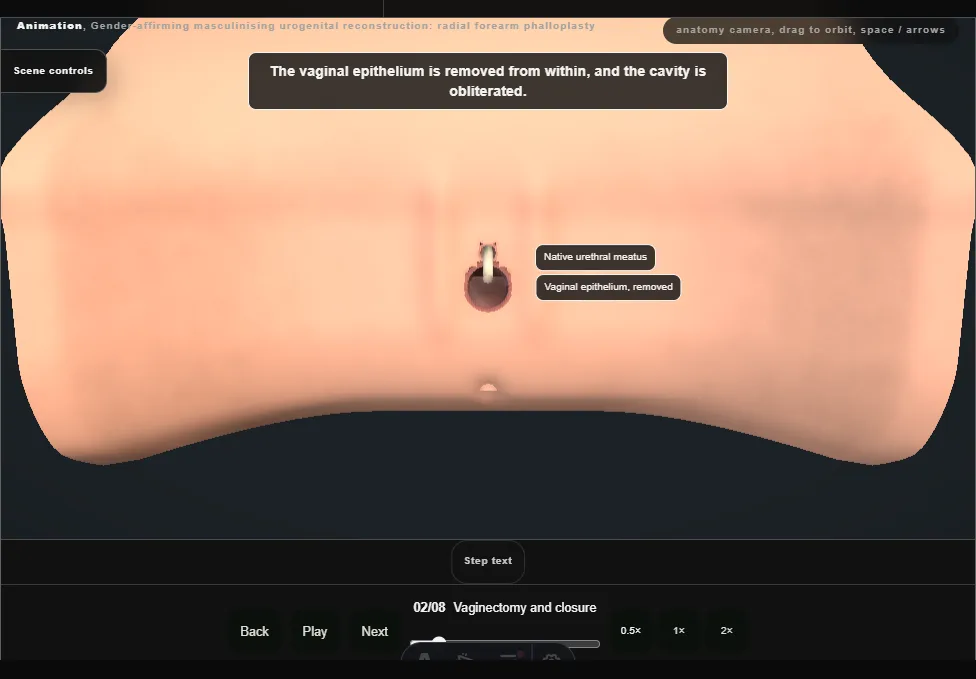

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 2: Vaginectomy and closure. Captured frame from the interactive animation.
    • The vaginal epithelium is removed and the cavity is obliterated, with the bladder in front and the rectum behind.
    • The introitus is closed in the midline.
    • Where this is done, the hysterectomy has usually been done before.
  3. 03

    Urethral lengthening: the pars fixa

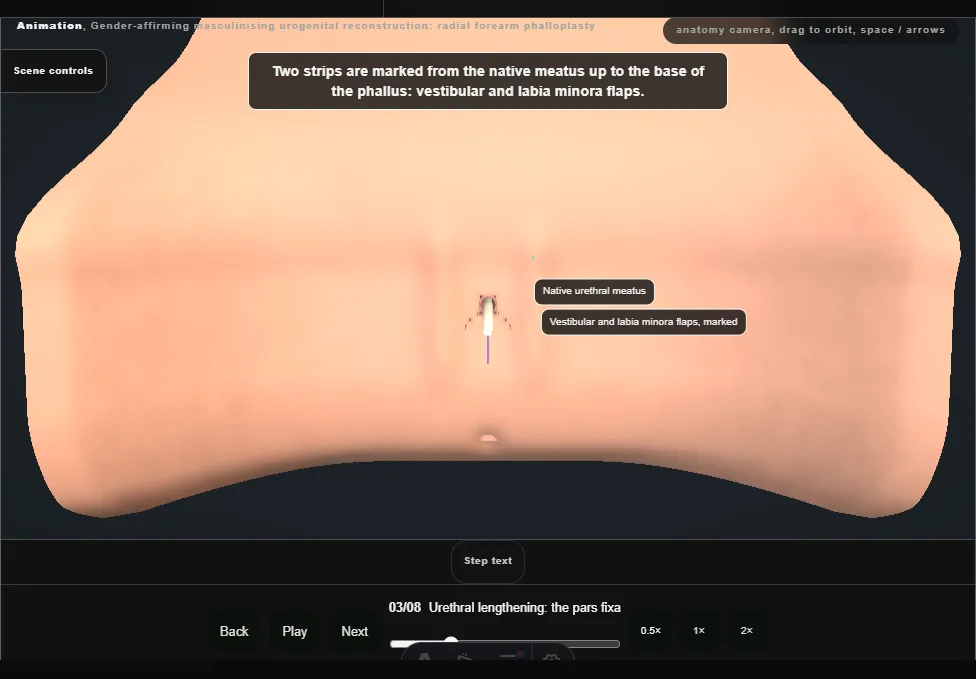

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 3: Urethral lengthening: the pars fixa. Captured frame from the interactive animation.
    • Vestibular and labia minora flaps are raised and tubed over the catheter from the native meatus to the base of the phallus.
    • This is the pars fixa, the fixed part of the new urethra; its far end will meet the shaft urethra.
  4. 04

    The forearm flap: a tube within a tube

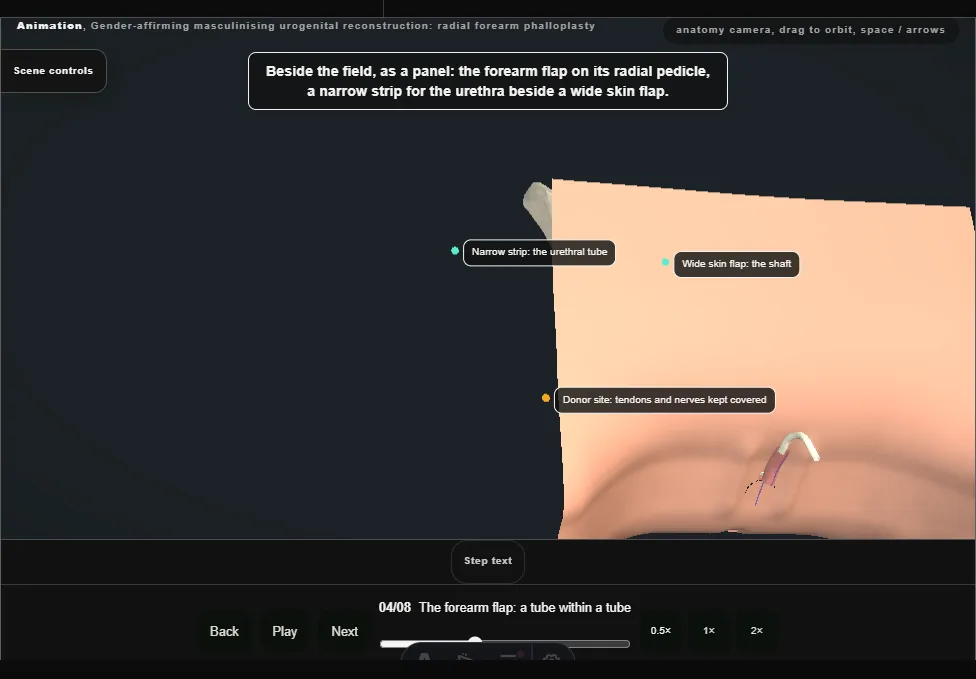

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 4: The forearm flap: a tube within a tube. Captured frame from the interactive animation.
    • Shown beside the field: the radial forearm flap on its pedicle.
    • A narrow strip is rolled skin side in to make the inner urethral tube, the pars pendulans; the wide flap is rolled round it skin side out to make the shaft.
  5. 05

    Transfer and microvascular anastomosis

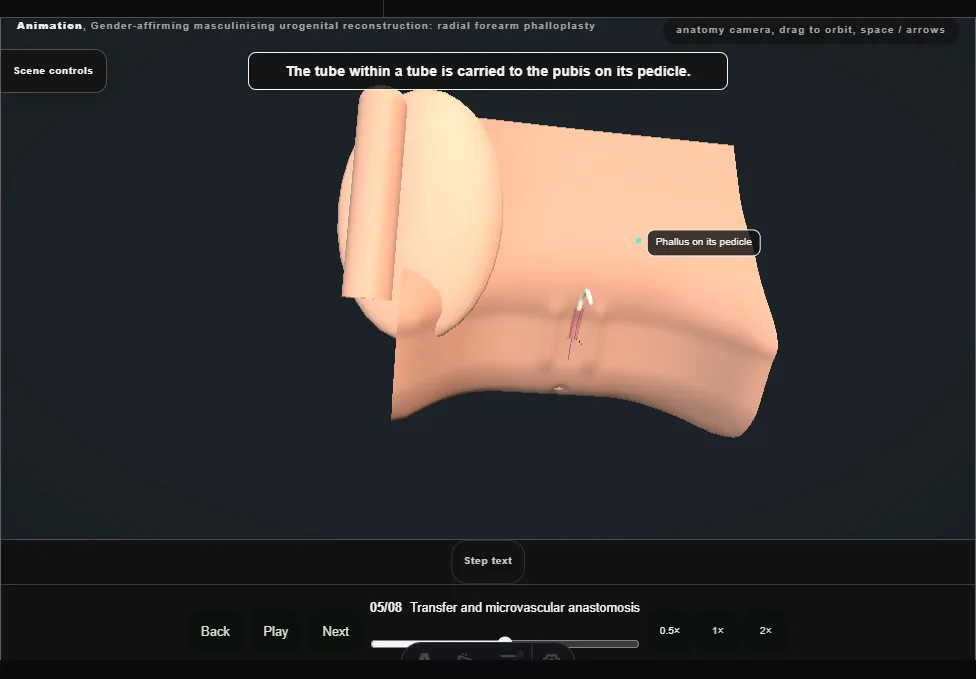

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 5: Transfer and microvascular anastomosis. Captured frame from the interactive animation.
    • The phallus is carried to the pubis.
    • In the groin the radial artery is joined to a recipient artery and the flap veins to a recipient vein, and a forearm sensory nerve to a recipient nerve.
    • A pedicle under tension or kinked loses the flap.
  6. 06

    The join

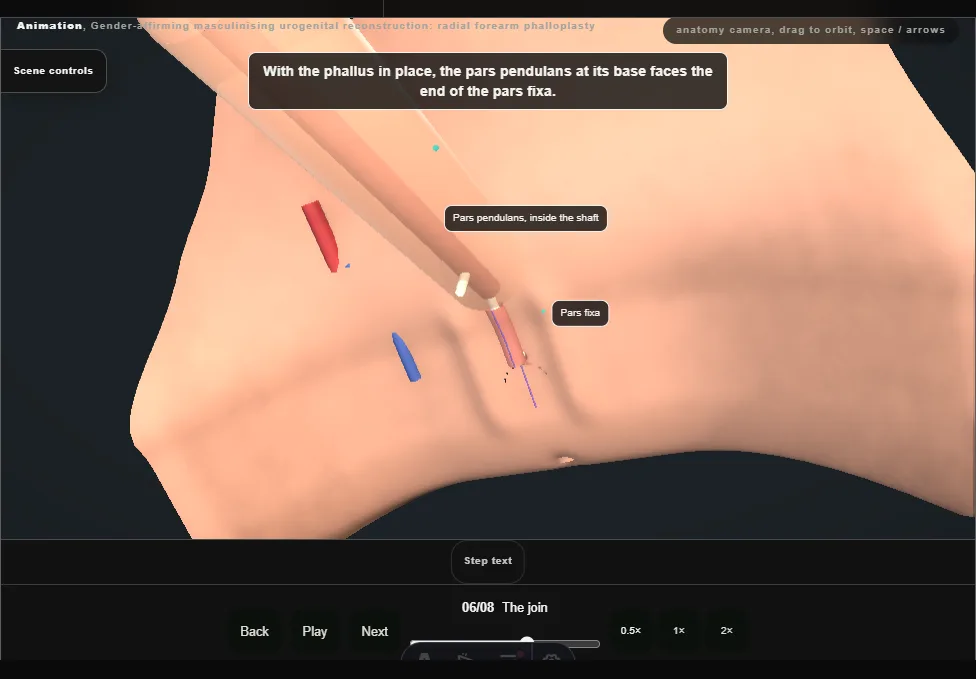

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 6: The join. Captured frame from the interactive animation.
    • At the base the pars pendulans is joined to the end of the pars fixa over the catheter, without tension.
    • This join is the commonest site of fistula and stricture.
    • A suprapubic catheter drains the bladder while it heals.
  7. 07

    Scrotoplasty

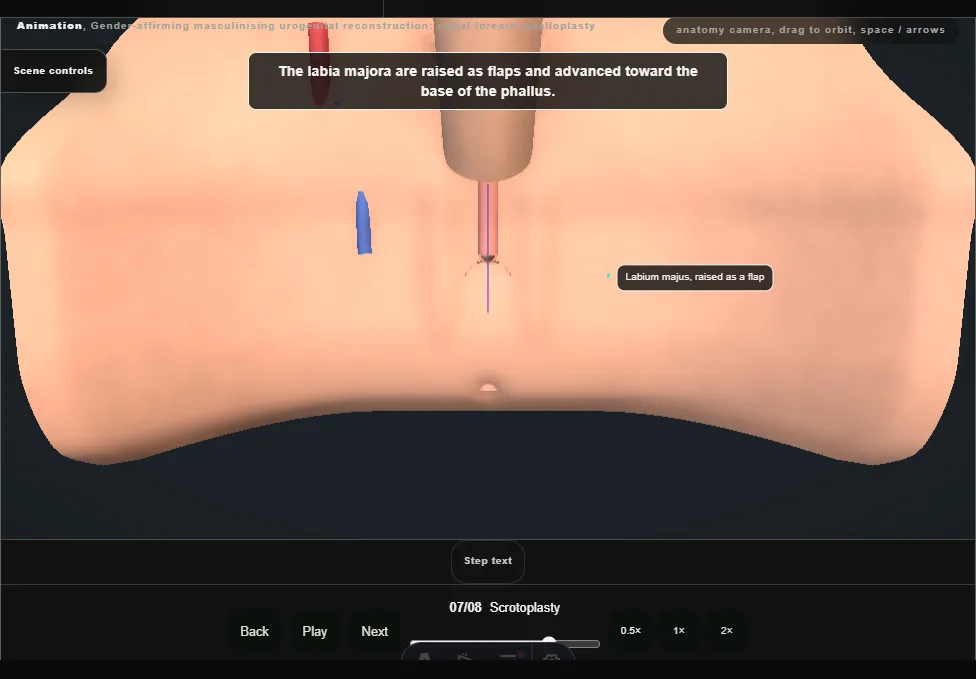

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 7: Scrotoplasty. Captured frame from the interactive animation.
    • The labia majora are raised as flaps, advanced toward the base of the phallus and joined in the midline.
    • The scrotum lies over the pars fixa; testicular implants wait for a later stage.
  8. 08

    Healing and voiding

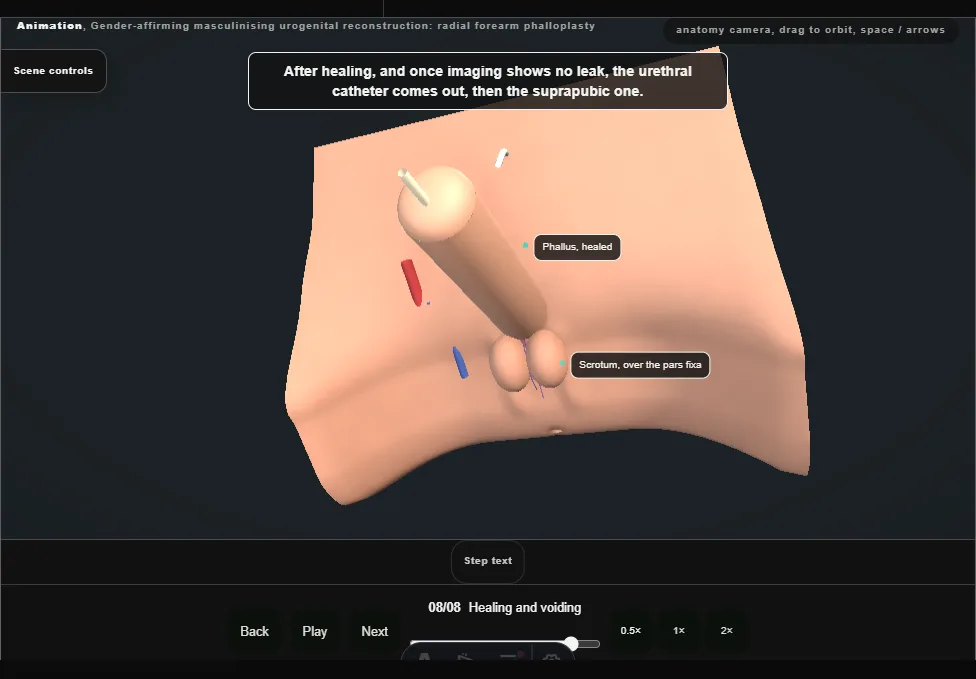

    Gender-affirming masculinising urogenital reconstruction: radial forearm phalloplasty. Step 8: Healing and voiding. Captured frame from the interactive animation.
    • After healing, and once imaging shows no leak, the catheters come out.
    • He voids standing through the meatus at the tip.
    • Glansplasty and the prostheses come later, after healing and sensation.
    • Urological follow-up is lifelong.
