Revision sheet

Emergency scrotal exploration: torsion

6 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

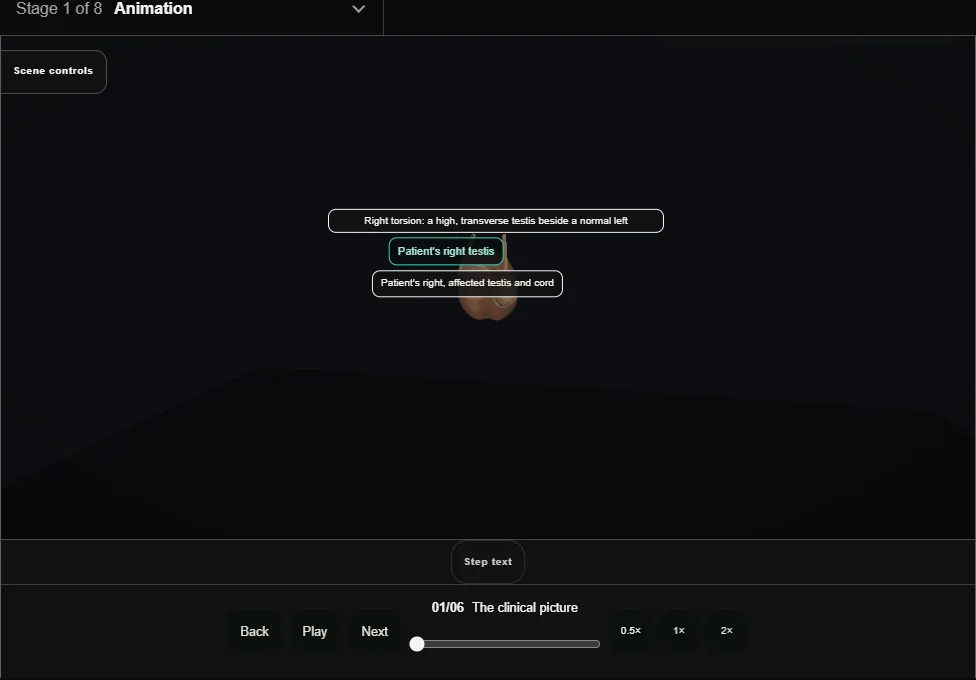

    The clinical picture

    Emergency scrotal exploration: torsion. Step 1: The clinical picture. Captured frame from the interactive animation.
    • Sudden severe pain, vomiting, a high-riding testis lying transversely, an absent cremasteric reflex.
    • The diagnosis is clinical, time is tissue, and the salvage window is about six hours.
  2. 02

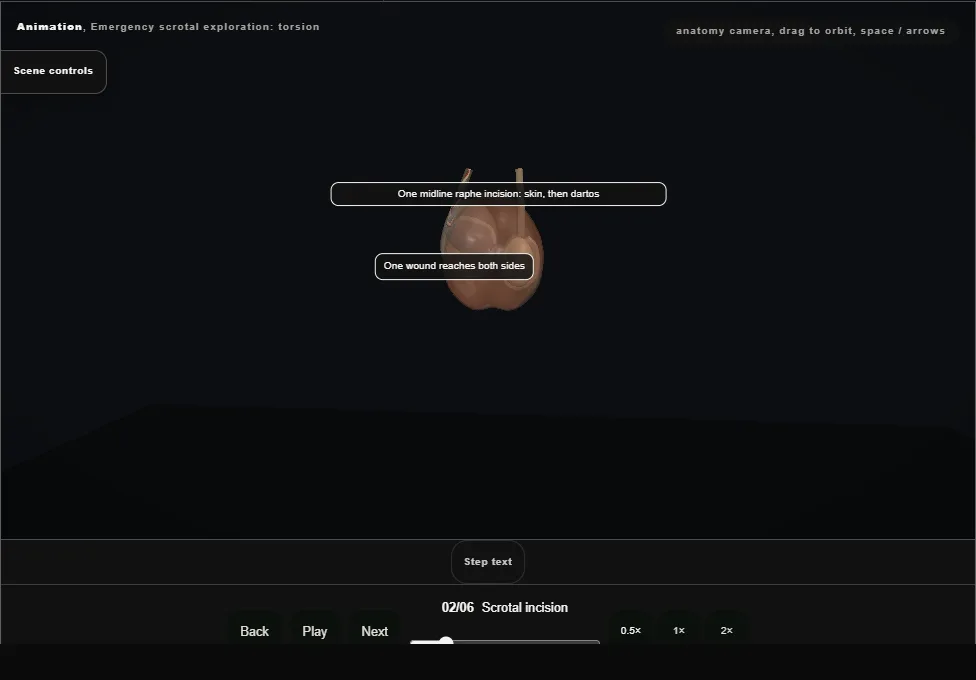

    Scrotal incision

    Emergency scrotal exploration: torsion. Step 2: Scrotal incision. Captured frame from the interactive animation.
    • A single midline raphe incision reaches both hemiscrota through one wound: skin, dartos, and each tunica in turn.
  3. 03

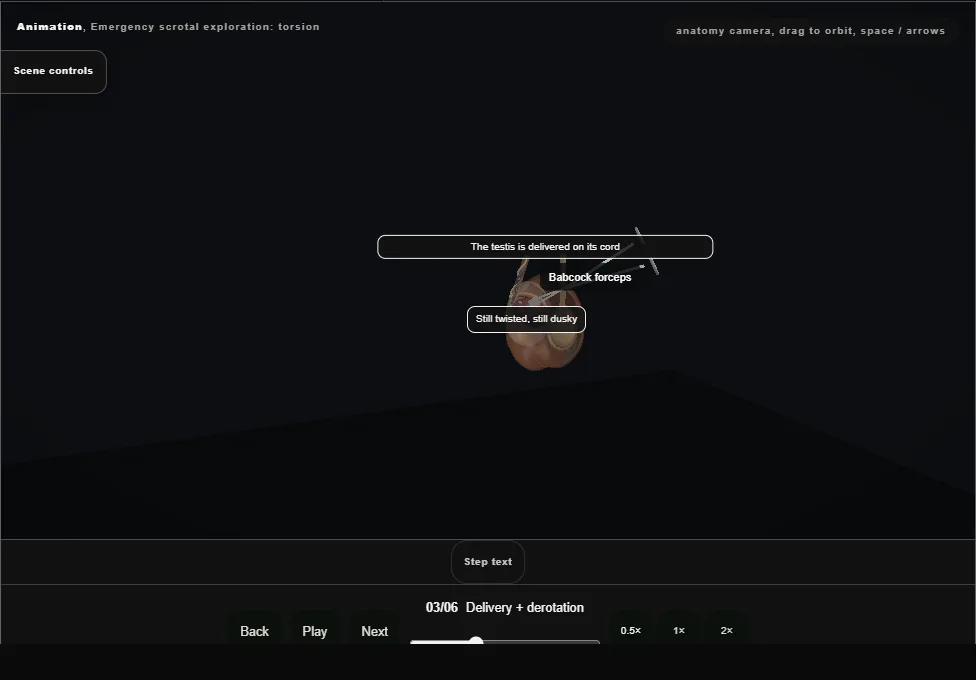

    Delivery + derotation

    Emergency scrotal exploration: torsion. Step 3: Delivery + derotation. Captured frame from the interactive animation.
    • The affected testis is delivered and untwisted outward, like opening a book.
    • For a left torsion this is clockwise, and for a right torsion counter-clockwise, viewed from the foot of the table; reverse direction if the cord tightens.
  4. 04

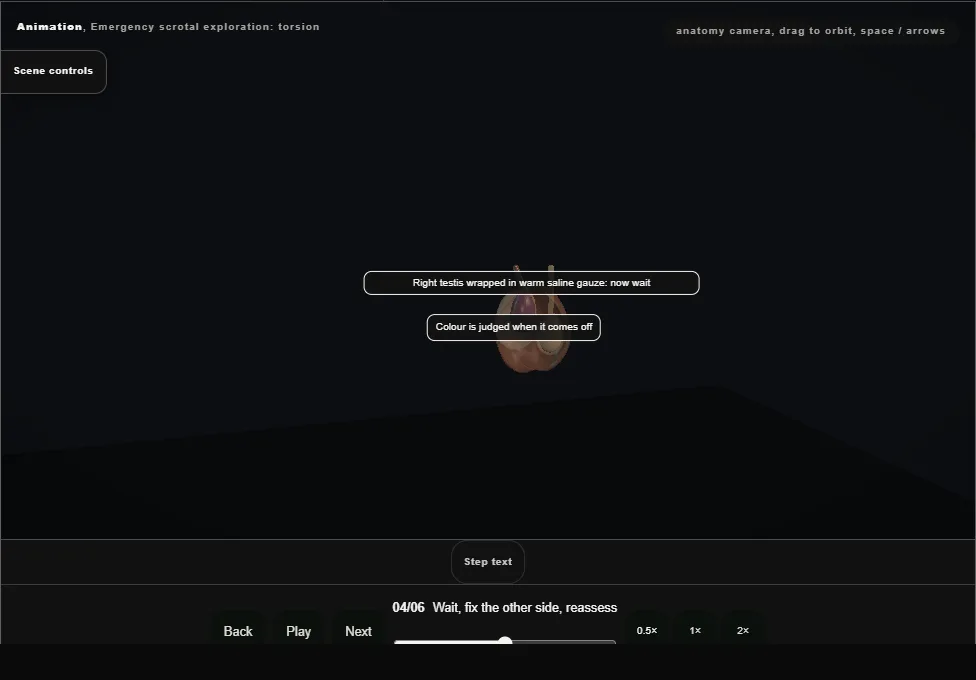

    Wait, fix the other side, reassess

    Emergency scrotal exploration: torsion. Step 4: Wait, fix the other side, reassess. Captured frame from the interactive animation.
    • After derotation, wrap the testis in warm saline gauze and wait.
    • During the wait the other testis is fixed at three points through the same wound.
    • Then the gauze comes off and colour and capillary bleeding are reassessed.
    • Only if viability remains uncertain is a small tunica albuginea nick used to look for fresh bleeding.
  5. 05

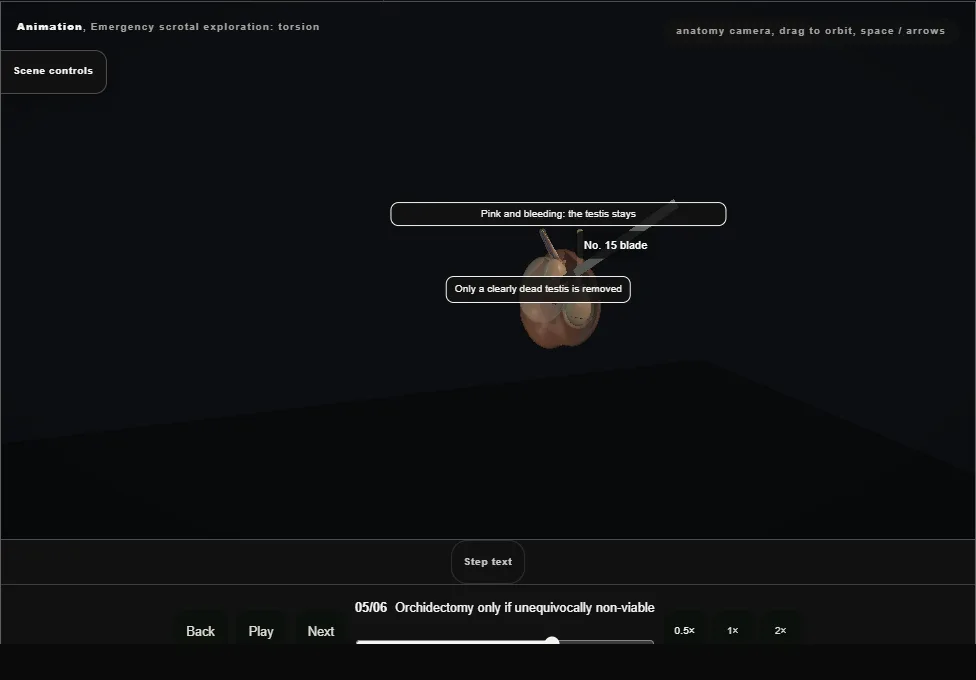

    Orchidectomy only if unequivocally non-viable

    Emergency scrotal exploration: torsion. Step 5: Orchidectomy only if unequivocally non-viable. Captured frame from the interactive animation.
    • Only an unequivocally non-viable testis is removed: cord clamped, ligated and divided.
    • A dusky testis of uncertain viability is replaced and followed rather than removed by an absolute colour rule.
  6. 06

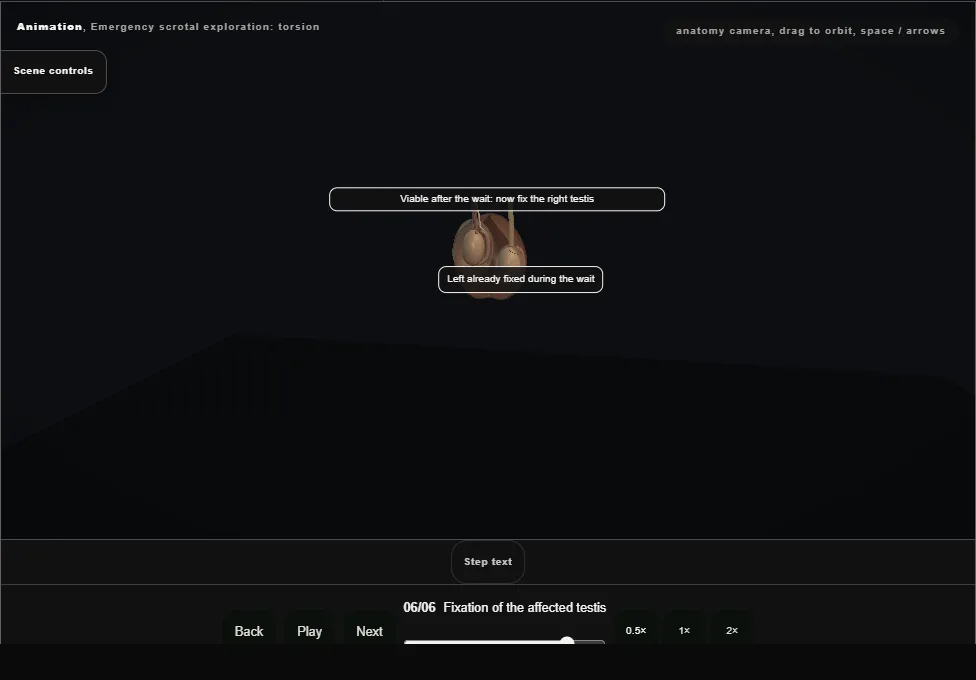

    Fixation of the affected testis

    Emergency scrotal exploration: torsion. Step 6: Fixation of the affected testis. Captured frame from the interactive animation.
    • Viable on reassessment, the affected testis now gets three-point fixation to the scrotal wall.
    • The other testis was already fixed during the warm-gauze wait, so with a bell-clapper anomaly both end fixed; after orchidectomy, that fixation protects the contralateral testis.
