Revision sheet

Penile inversion vaginoplasty

9 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

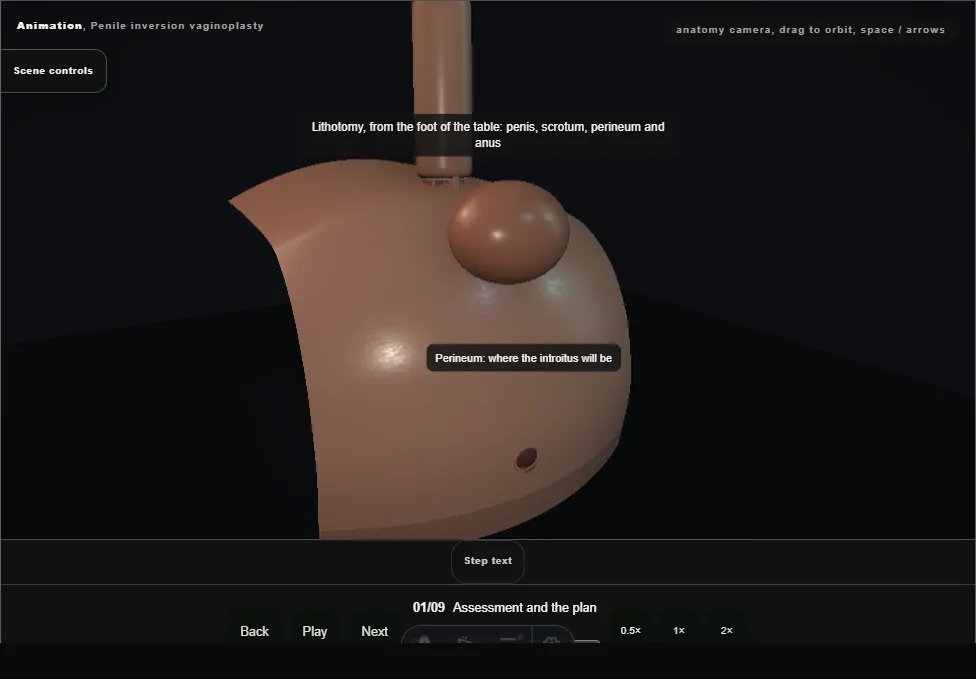

    Assessment and the plan

    Penile inversion vaginoplasty. Step 1: Assessment and the plan. Captured frame from the interactive animation.
    • After assessment by the gender service and a multidisciplinary team, the goals are agreed: depth or no canal, sensation, voiding sitting.
    • Drawn through the skin: the prostate, which stays, and behind it the rectum.
    • The space is planned between them.
  2. 02

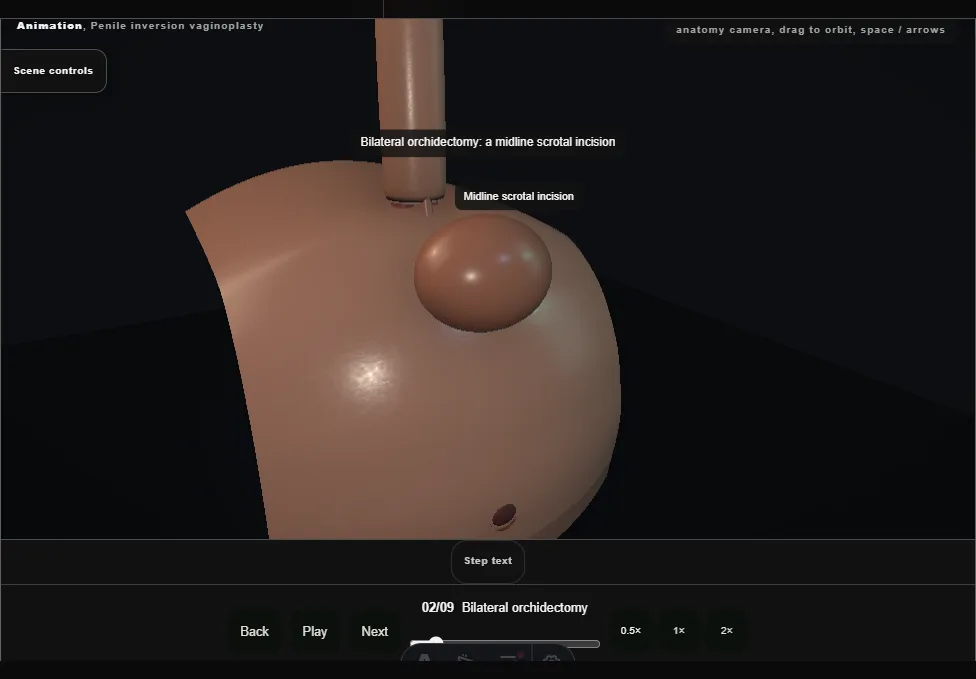

    Bilateral orchidectomy

    Penile inversion vaginoplasty. Step 2: Bilateral orchidectomy. Captured frame from the interactive animation.
    • Through a midline scrotal incision each testis is delivered, its cord clamped, tied at the external ring and divided.
    • The scrotal skin is kept: it becomes the labia.
  3. 03

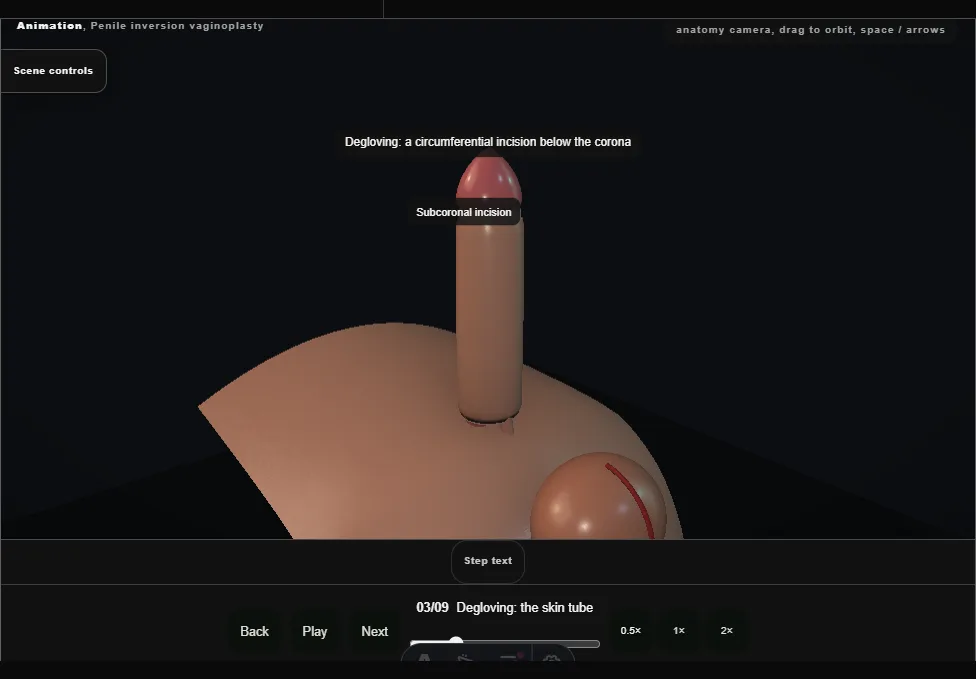

    Degloving: the skin tube

    Penile inversion vaginoplasty. Step 3: Degloving: the skin tube. Captured frame from the interactive animation.
    • A circumferential subcoronal incision, and the penile skin is rolled back to the base as a tube with its blood supply.
    • Buck's fascia stays on the shaft over the dorsal bundle.
  4. 04

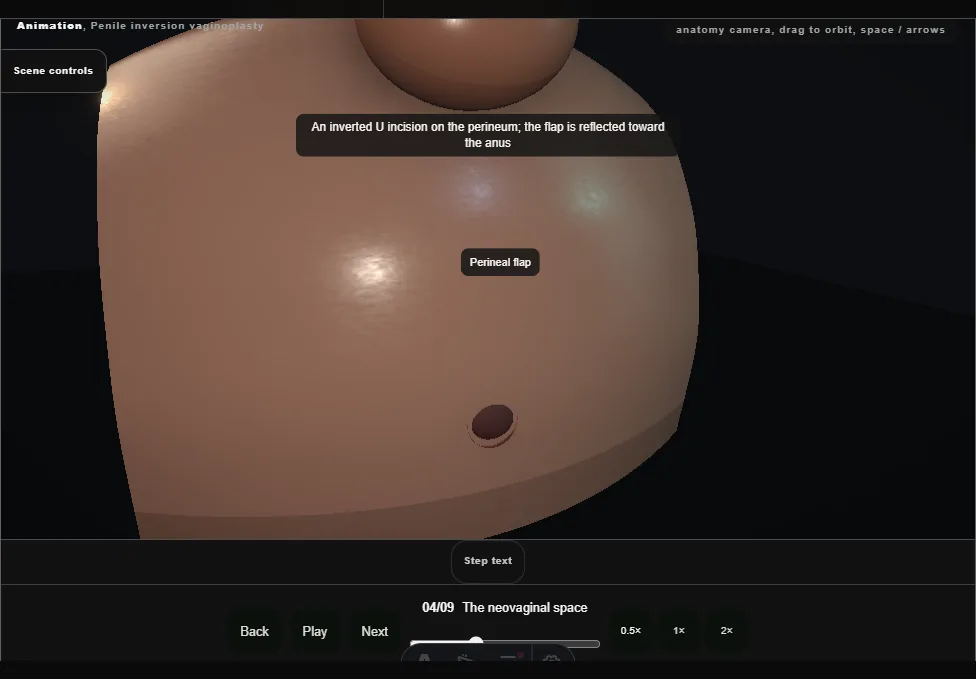

    The neovaginal space

    Penile inversion vaginoplasty. Step 4: The neovaginal space. Captured frame from the interactive animation.
    • An inverted U on the perineum, the flap reflected.
    • The space is opened between the prostate in front and the rectum behind, up to the bladder base.
    • The rectum is the next layer; the sphincter at the apex is spared.
  5. 05

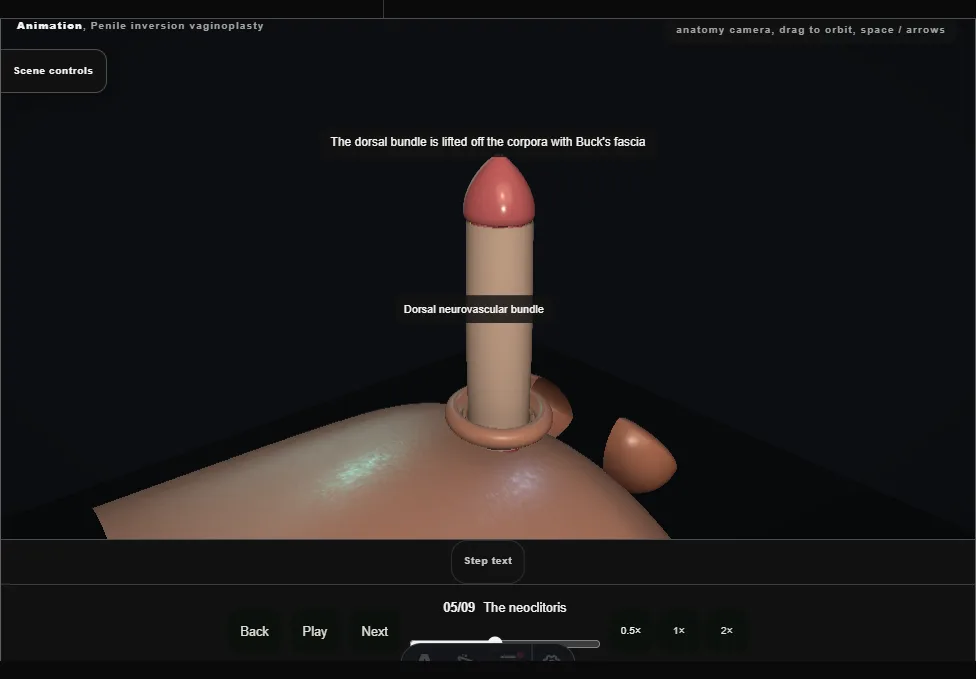

    The neoclitoris

    Penile inversion vaginoplasty. Step 5: The neoclitoris. Captured frame from the interactive animation.
    • The dorsal neurovascular bundle is lifted off the corpora with Buck's fascia; the corpora are excised to the crura.
    • A dorsal wedge of glans stays on the bundle and is folded down to the clitoral position.
  6. 06

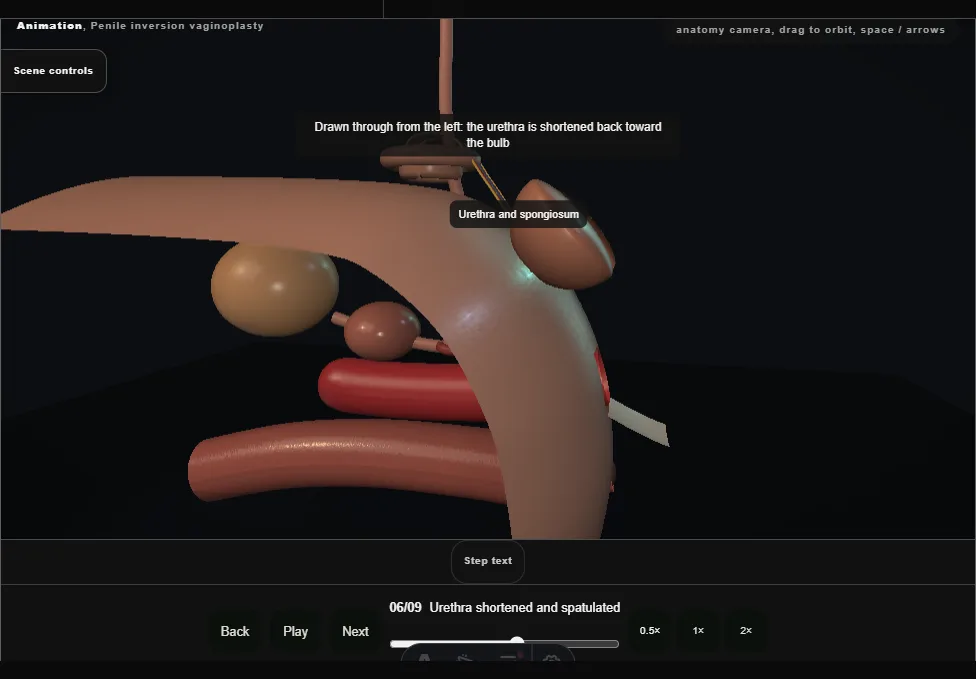

    Urethra shortened and spatulated

    Penile inversion vaginoplasty. Step 6: Urethra shortened and spatulated. Captured frame from the interactive animation.
    • The urethra is shortened, then opened on its ventral side and spatulated to make a wide new meatus, sewn to the vestibule.
    • Too long or too tight here gives spraying and meatal stenosis.
  7. 07

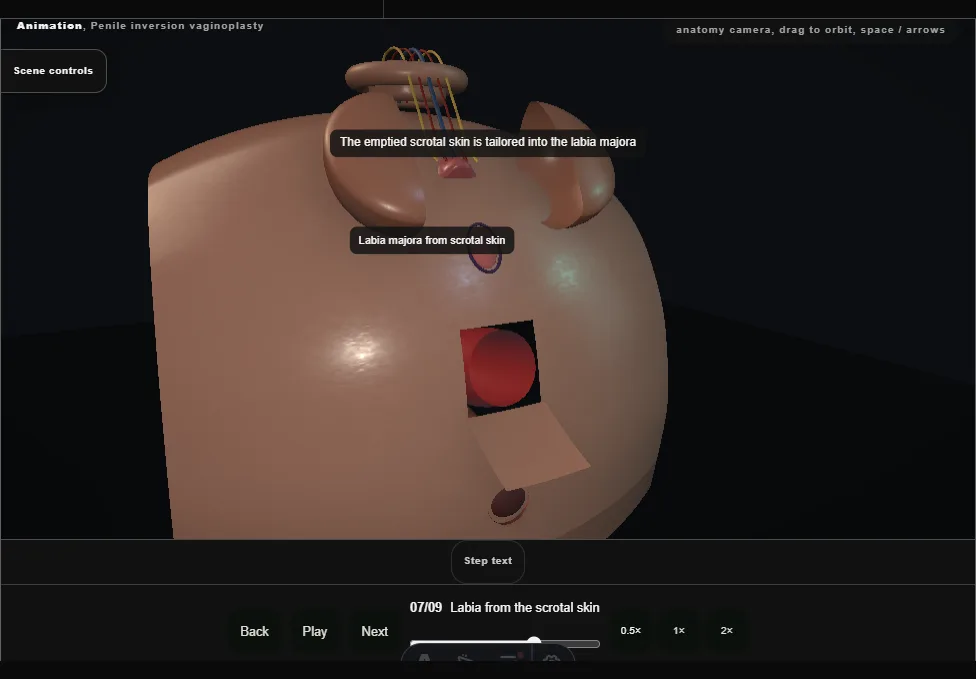

    Labia from the scrotal skin

    Penile inversion vaginoplasty. Step 7: Labia from the scrotal skin. Captured frame from the interactive animation.
    • The emptied scrotal skin is tailored into the labia majora either side of the vestibule, from beside the clitoris to the back of the introitus.
  8. 08

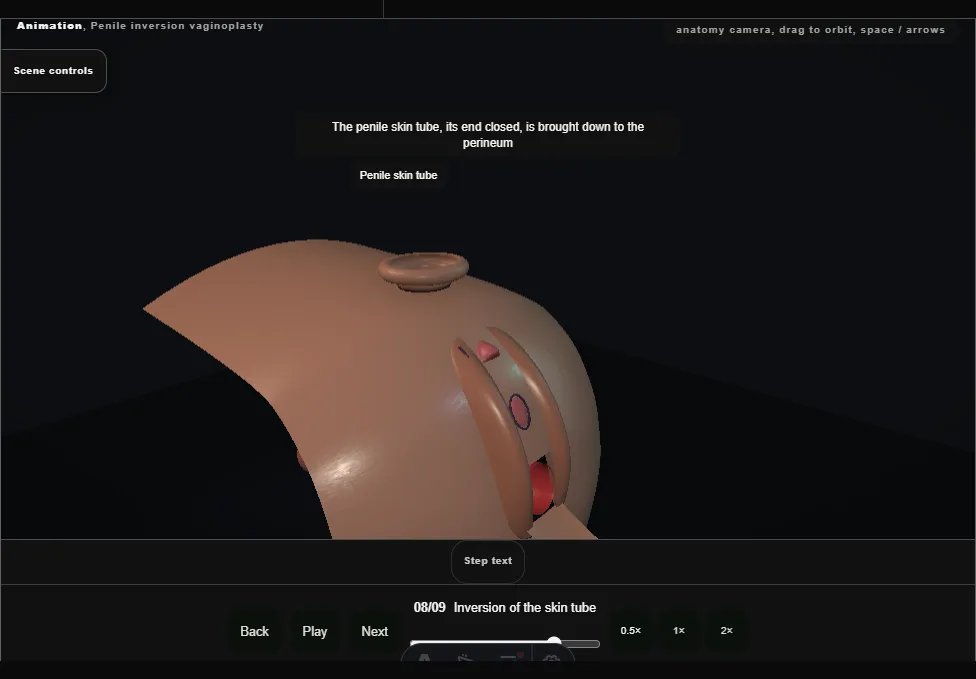

    Inversion of the skin tube

    Penile inversion vaginoplasty. Step 8: Inversion of the skin tube. Captured frame from the interactive animation.
    • The penile skin tube, its end closed, is brought down and inverted into the space so that skin lines the canal; scrotal skin graft extends it when it is short.
    • A pack holds it; the perineal flap goes into the back wall; a catheter drains the bladder.
  9. 09

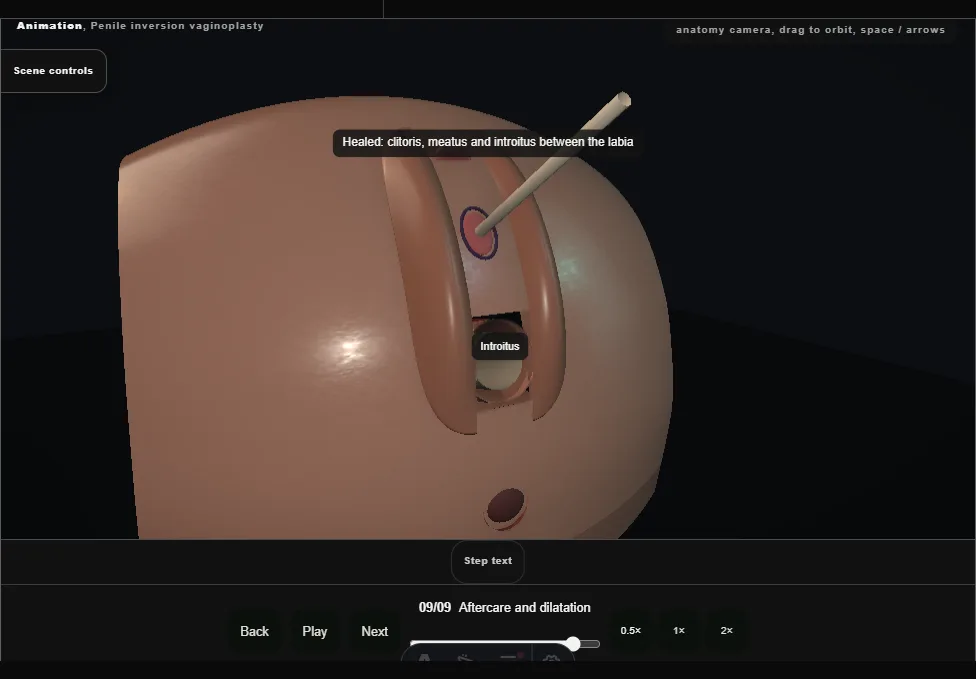

    Aftercare and dilatation

    Penile inversion vaginoplasty. Step 9: Aftercare and dilatation. Captured frame from the interactive animation.
    • Pack and catheter out after some days.
    • Dilatation starts at once and continues for life, less often with time; without it the canal shortens.
    • The prostate remains in front of the canal.
