Revision sheet

Urethral catheterisation, and the difficult one

10 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

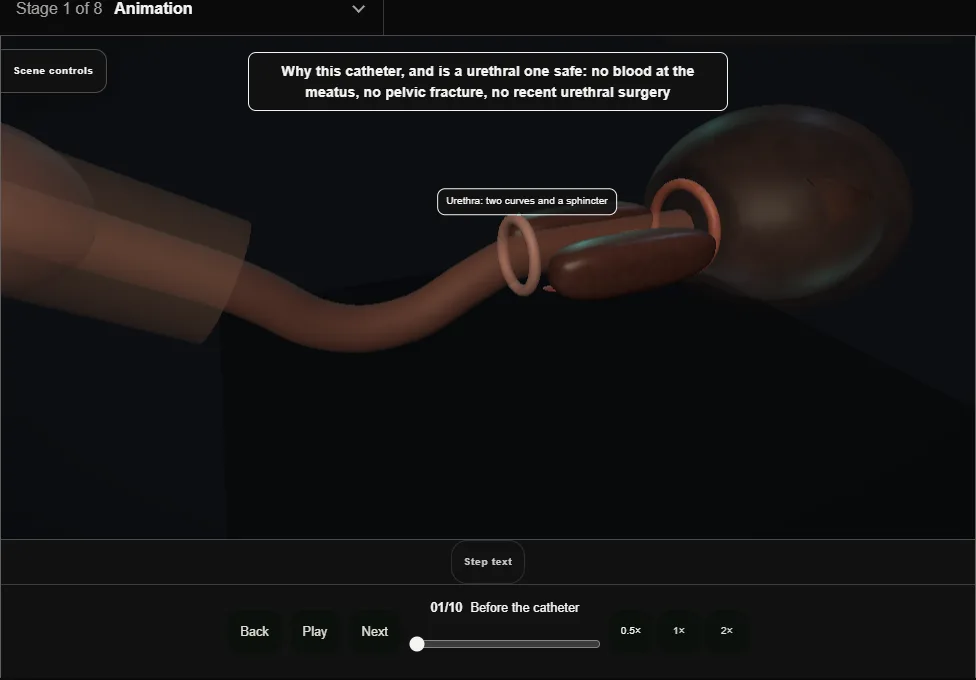

    Before the catheter

    Urethral catheterisation, and the difficult one. Step 1: Before the catheter. Captured frame from the interactive animation.
    • Why this catheter and whether the urethra is safe: blood at the meatus, a pelvic fracture or recent urethral surgery means stop and ask.
    • Gloves, cleaning, gel, a 14 or 16 French catheter, water for the balloon, a bag.
  2. 02

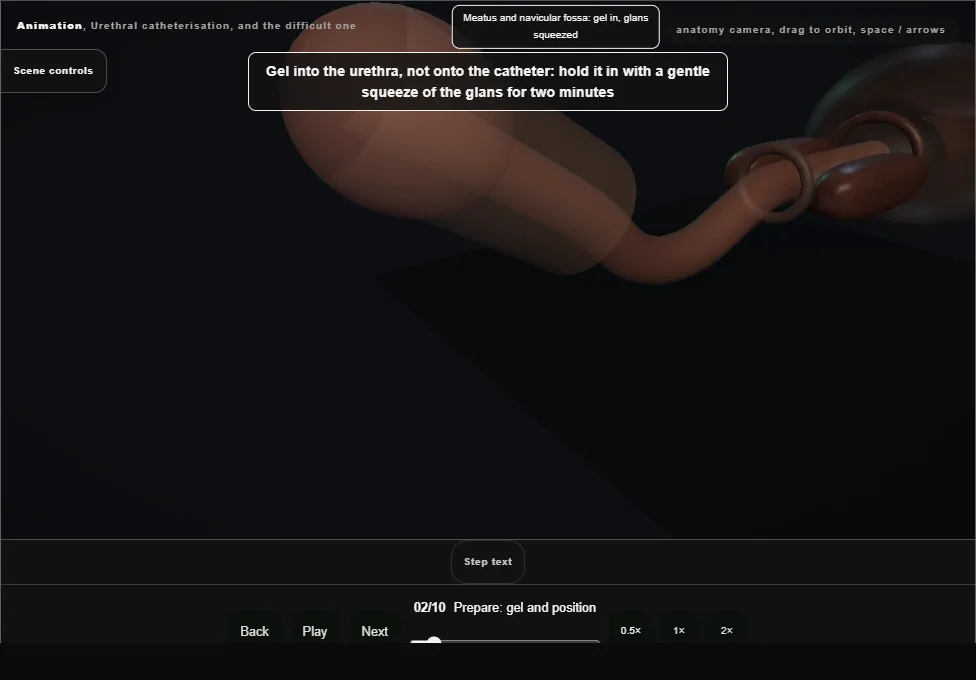

    Prepare: gel and position

    Urethral catheterisation, and the difficult one. Step 2: Prepare: gel and position. Captured frame from the interactive animation.
    • 11 ml of lidocaine gel into the urethra and held there.
    • The penis held up at ninety degrees straightens the penoscrotal angle and the first curve.
  3. 03

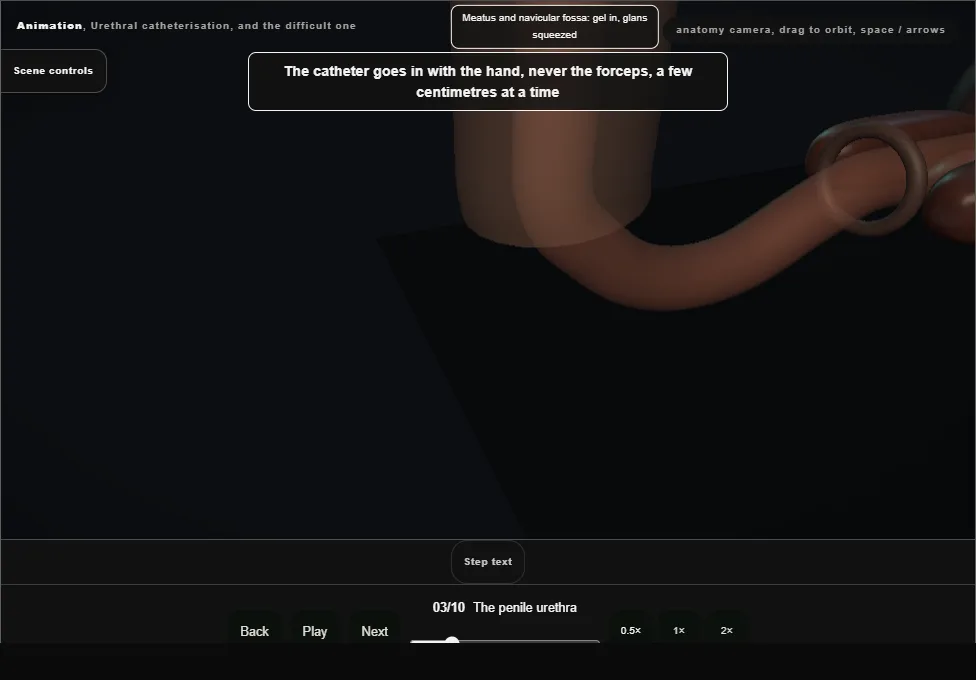

    The penile urethra

    Urethral catheterisation, and the difficult one. Step 3: The penile urethra. Captured frame from the interactive animation.
    • The catheter goes in by hand a few centimetres at a time, through the navicular fossa and along the straightened penile urethra.
  4. 04

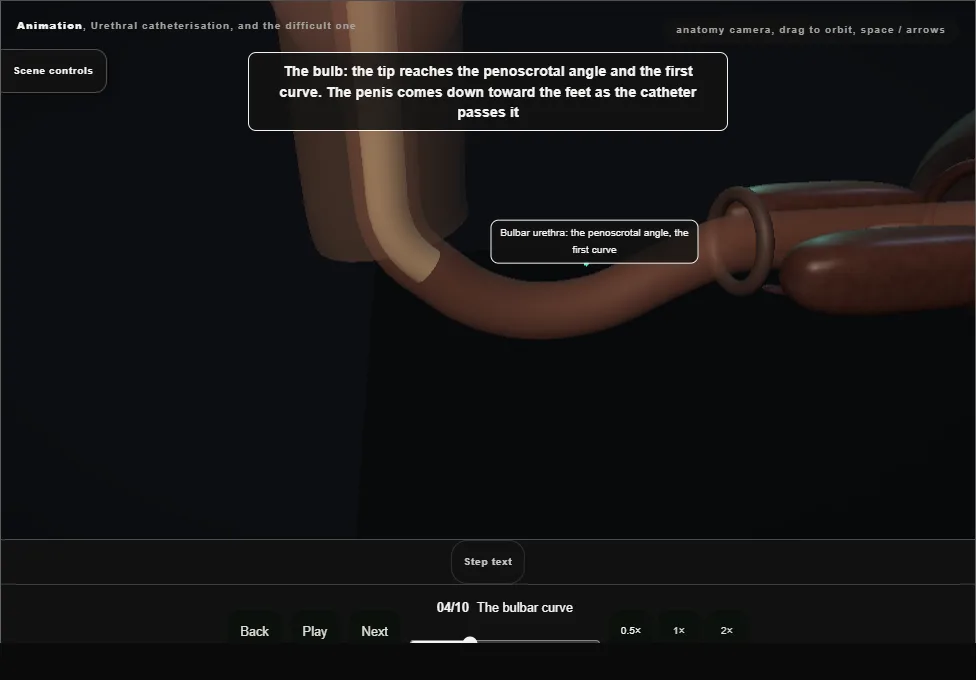

    The bulbar curve

    Urethral catheterisation, and the difficult one. Step 4: The bulbar curve. Captured frame from the interactive animation.
    • At the penoscrotal angle the tip meets the first curve.
    • The penis is brought down toward the feet and the catheter advanced without force.
  5. 05

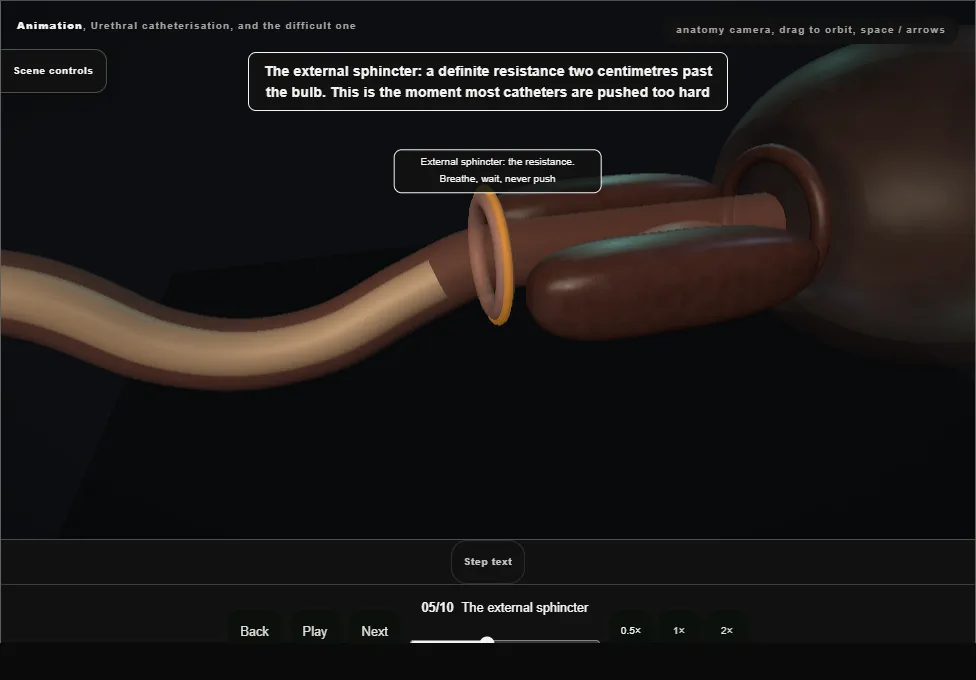

    The external sphincter

    Urethral catheterisation, and the difficult one. Step 5: The external sphincter. Captured frame from the interactive animation.
    • A definite resistance two centimetres past the bulb.
    • Steady pressure and slow breathing relax it; pushing harder makes a false passage.
    • Beyond it the veru sits on the floor.
  6. 06

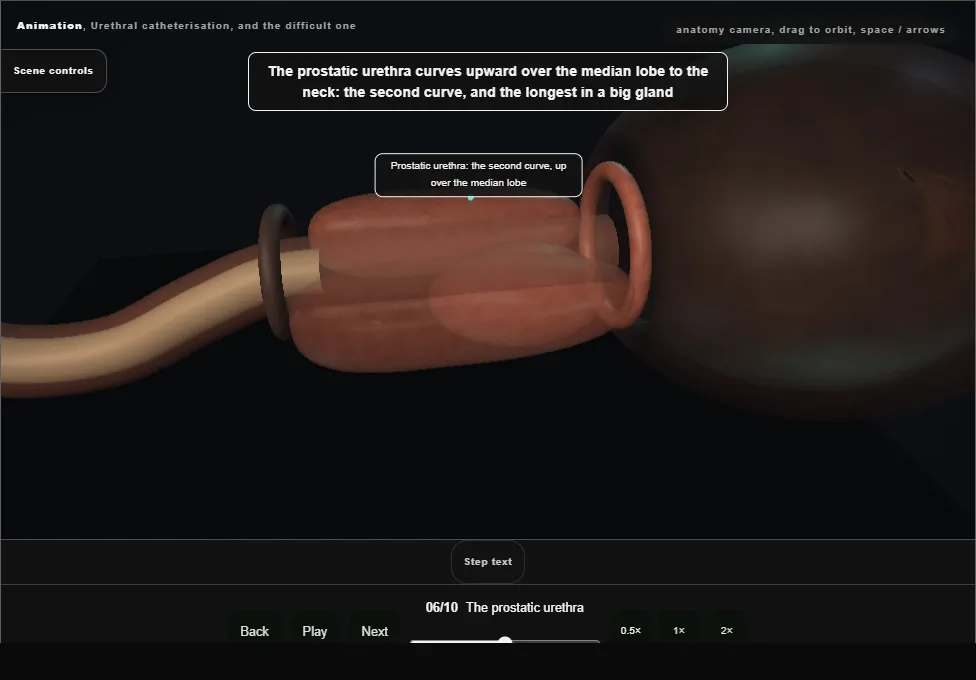

    The prostatic urethra

    Urethral catheterisation, and the difficult one. Step 6: The prostatic urethra. Captured frame from the interactive animation.
    • The second curve, upward over the median lobe to the neck.
    • A coudé tip with its bend at twelve o'clock rides over the lobe instead of digging into it.
  7. 07

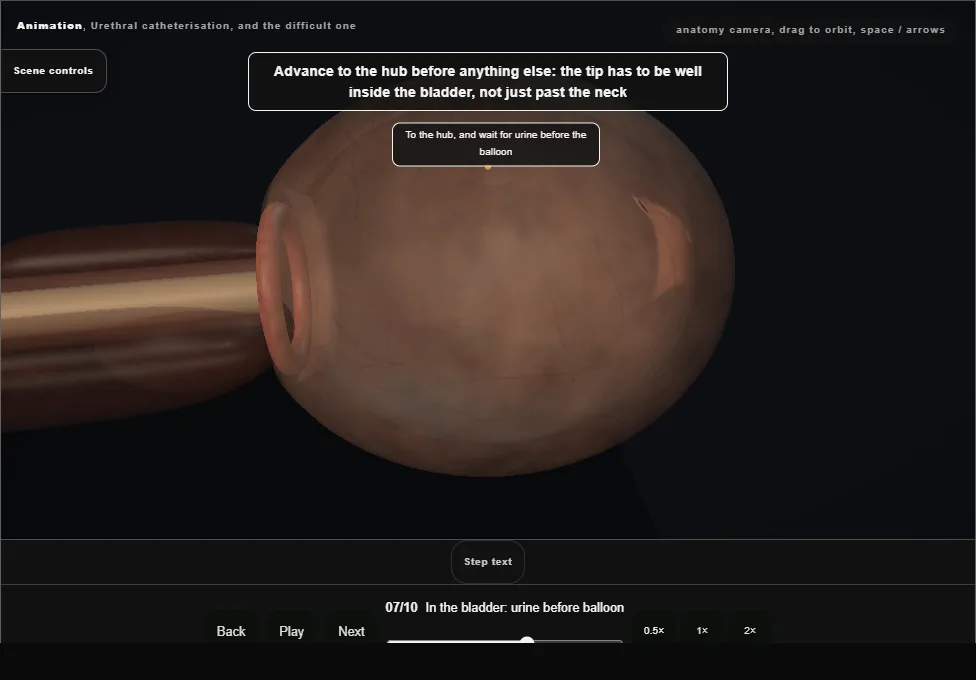

    In the bladder: urine before balloon

    Urethral catheterisation, and the difficult one. Step 7: In the bladder: urine before balloon. Captured frame from the interactive animation.
    • Advance to the hub.
    • Wait for urine; if there is none, press suprapubically, flush and aspirate.
    • Only when the tip is proved to be in the bladder does the balloon go up, slowly, stopping at pain.
  8. 08

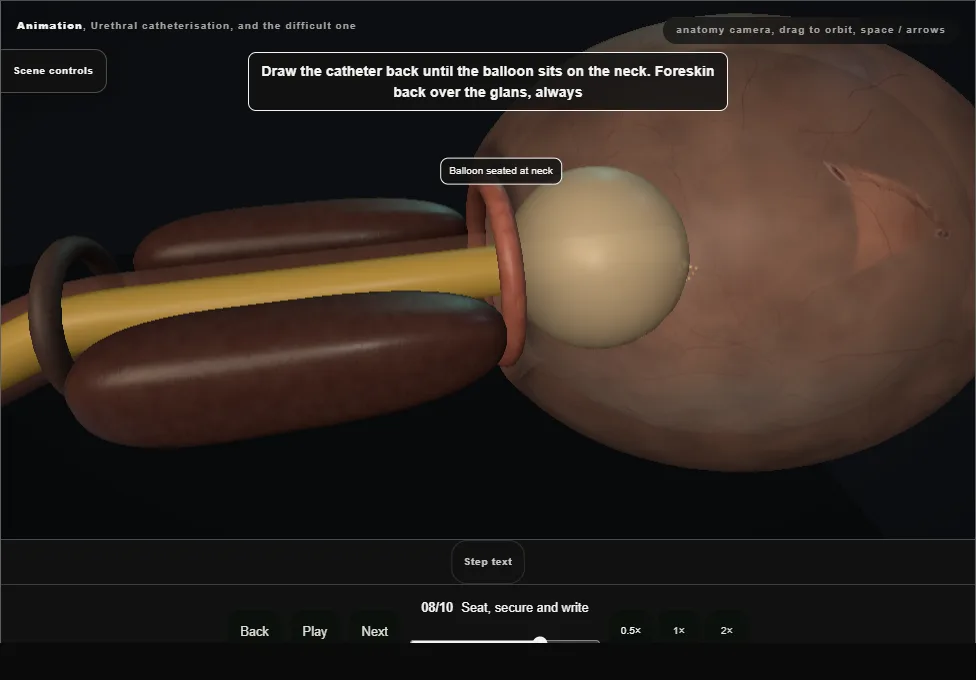

    Seat, secure and write

    Urethral catheterisation, and the difficult one. Step 8: Seat, secure and write. Captured frame from the interactive animation.
    • Draw back until the balloon sits on the neck, replace the foreskin, connect the bag below the bladder, secure to the thigh.
    • Write size, balloon volume, residual, colour and how it went.
  9. 09

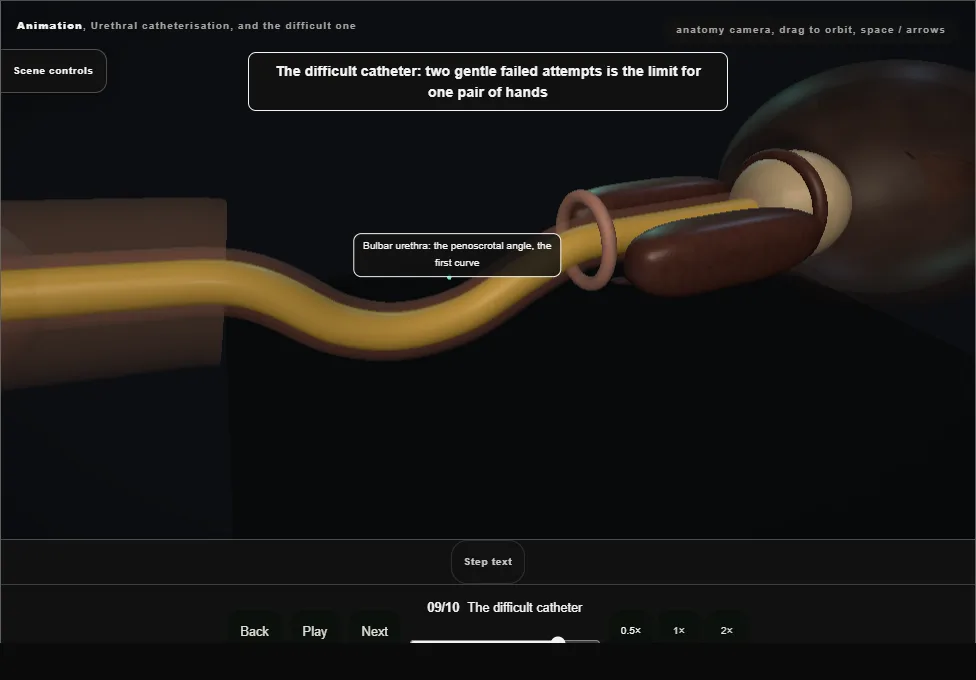

    The difficult catheter

    Urethral catheterisation, and the difficult one. Step 9: The difficult catheter. Captured frame from the interactive animation.
    • Two gentle failed attempts is the limit.
    • More gel and time at the sphincter, a coudé, a size up, then urology: a wire under vision with a flexible scope, or a suprapubic catheter.
  10. 10

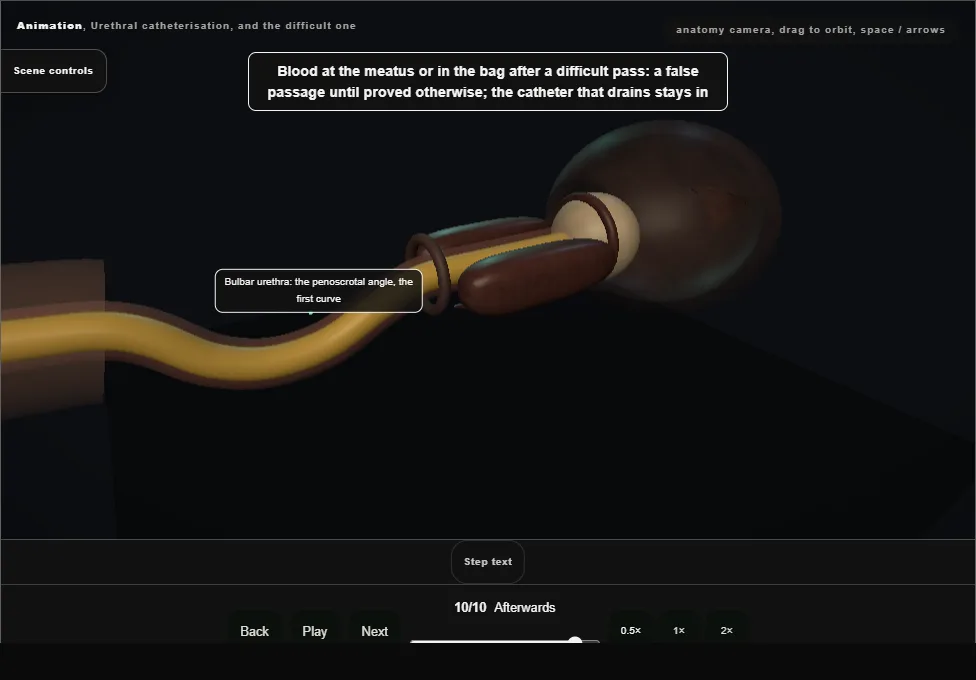

    Afterwards

    Urethral catheterisation, and the difficult one. Step 10: Afterwards. Captured frame from the interactive animation.
    • Blood after a difficult pass is a false passage until proved otherwise.
    • Chronic retention drained brings decompression haematuria and a diuresis.
    • The residual and the trial-without-catheter plan go in the note.
