Revision sheet

Distal ureteric reconstruction

9 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

    Who

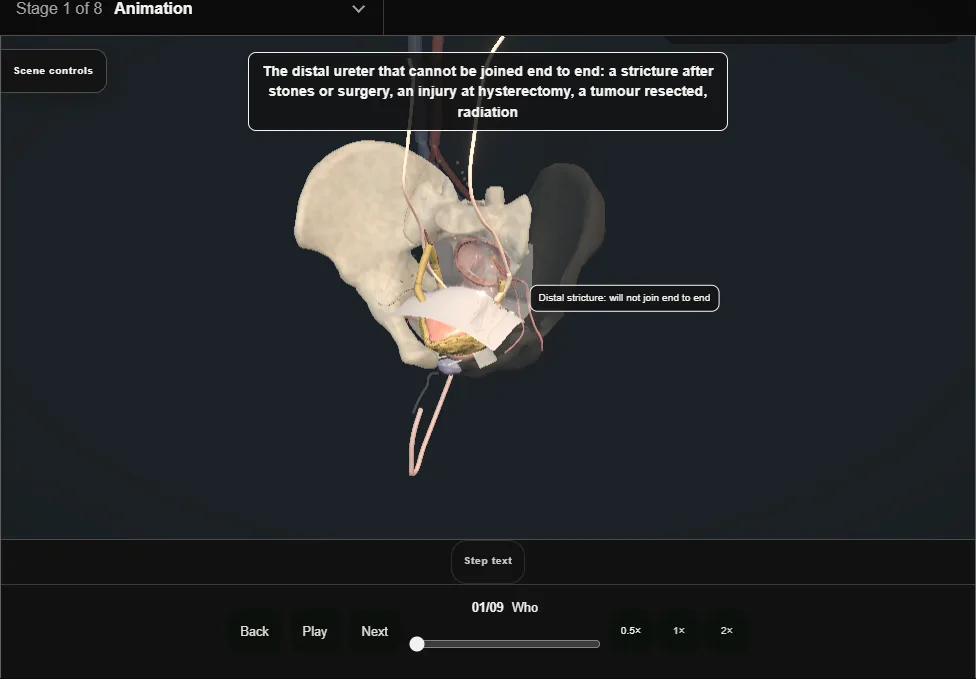

    Distal ureteric reconstruction. Step 1: Who. Captured frame from the interactive animation.
    • The distal ureter that cannot be joined end to end: stricture, injury at hysterectomy, a resected tumour, radiation.
    • The lowest five centimetres go straight into the bladder; longer gaps need the bladder brought to the ureter.
  2. 02

    Planning

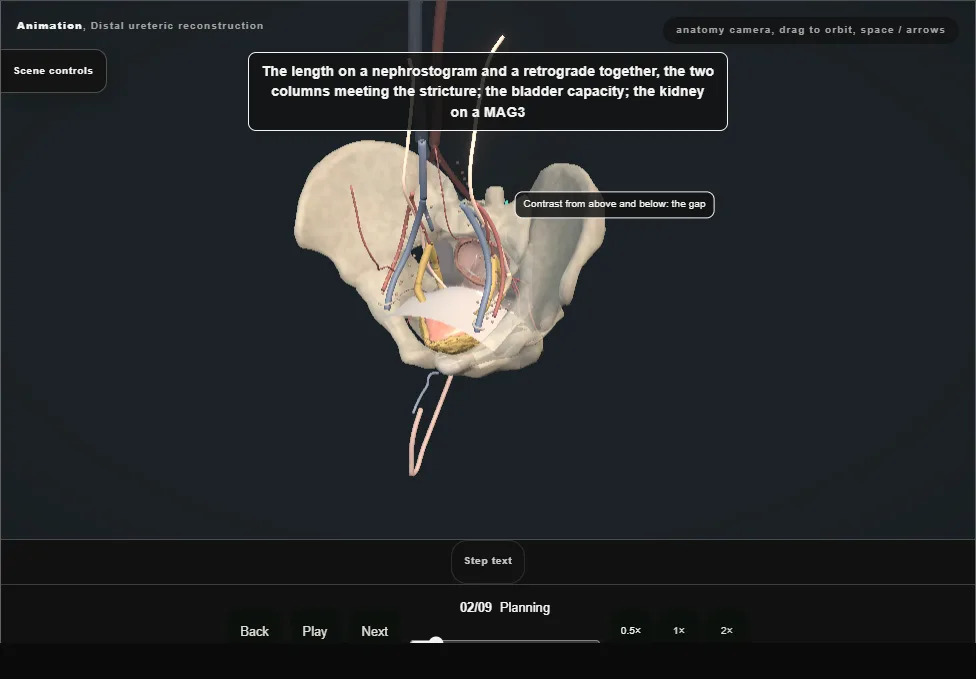

    Distal ureteric reconstruction. Step 2: Planning. Captured frame from the interactive animation.
    • The length on a nephrostogram and retrograde together; the bladder capacity and compliance; the kidney on a MAG3.
    • A small, stiff, radiated bladder will not reach: a Boari flap, an ileal ureter or a nephrectomy is decided before the incision.
  3. 03

    Exposure and the ureter at the brim

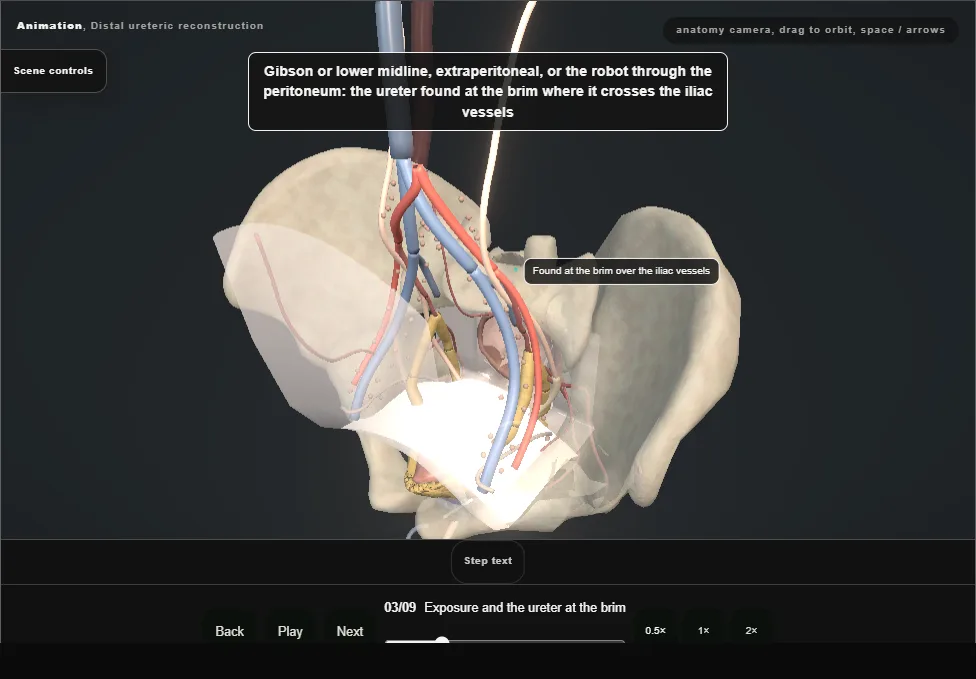

    Distal ureteric reconstruction. Step 3: Exposure and the ureter at the brim. Captured frame from the interactive animation.
    • Gibson or lower midline, extraperitoneal, or robotic through the peritoneum.
    • The ureter found where it crosses the iliac vessels, medial to them, on the peritoneum, peristalsing when touched: a vessel loop around it.
  4. 04

    Mobilising the ureter

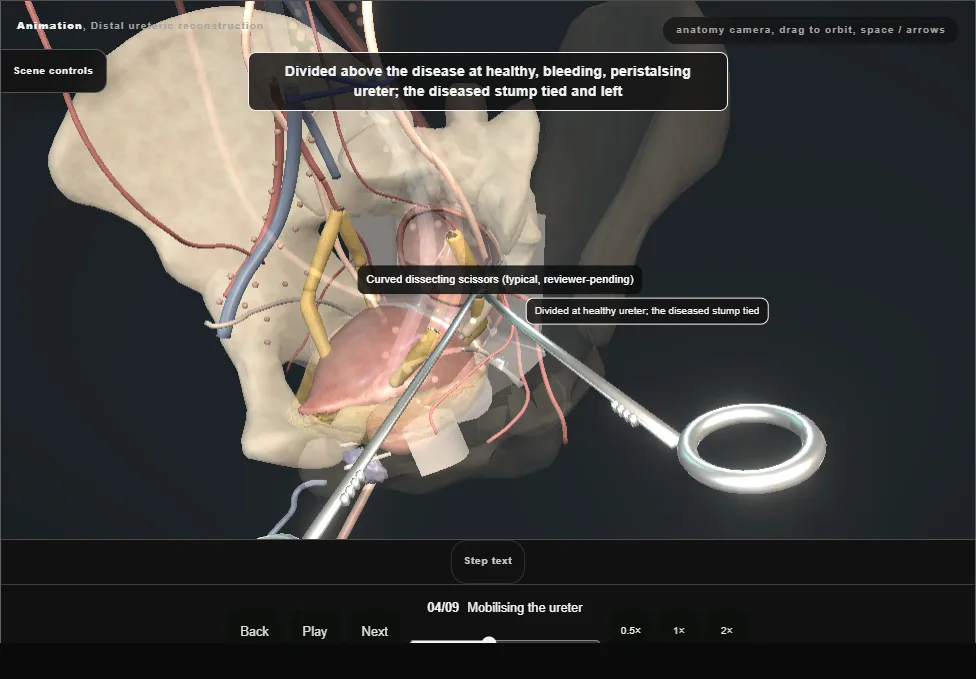

    Distal ureteric reconstruction. Step 4: Mobilising the ureter. Captured frame from the interactive animation.
    • With its adventitia and a cuff of fat, because the blood supply runs in that sheath and a bare ureter strictures.
    • Divided above the disease at healthy, bleeding, peristalsing ureter; the diseased stump tied.
  5. 05

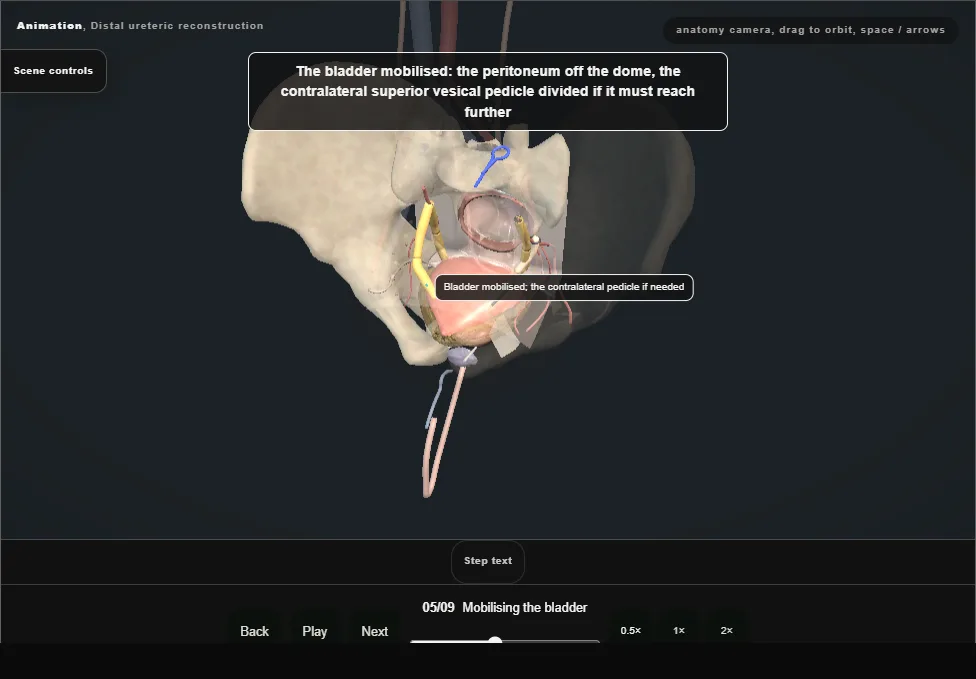

    Mobilising the bladder

    Distal ureteric reconstruction. Step 5: Mobilising the bladder. Captured frame from the interactive animation.
    • The peritoneum off the dome, the contralateral superior vesical pedicle divided if it must reach further; the bladder filled and drawn up toward the psoas.
    • The dome reaches the brim in most.
  6. 06

    The psoas hitch

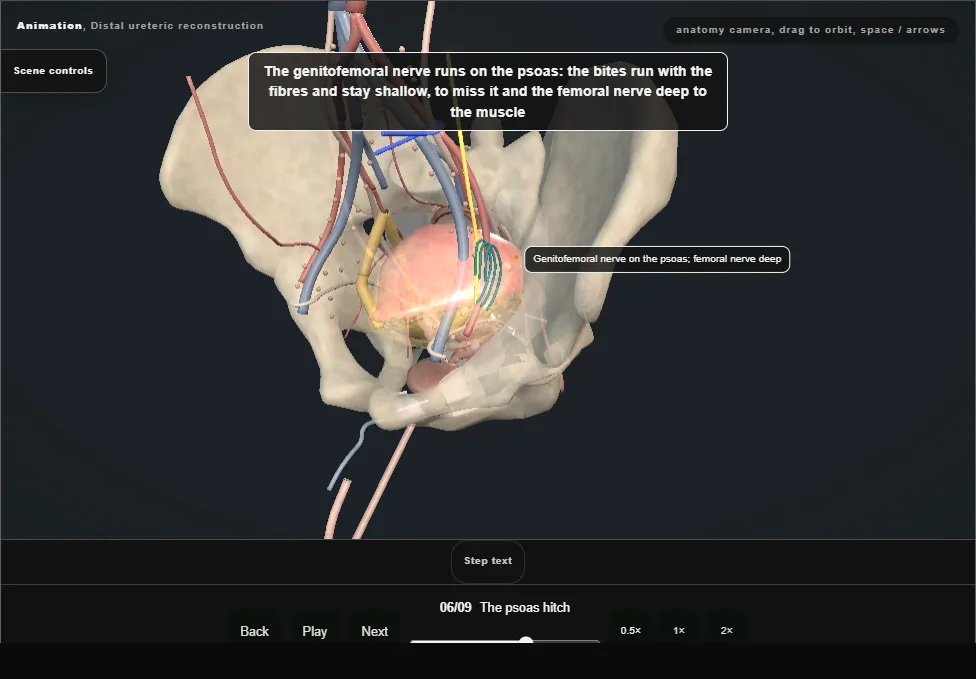

    Distal ureteric reconstruction. Step 6: The psoas hitch. Captured frame from the interactive animation.
    • Before any join: the bladder fixed to the psoas tendon (psoas minor where present) with vertical non-absorbable bites, above the level of the join.
    • The genitofemoral nerve runs on the psoas and the femoral nerve deep to it: the bites run with the fibres and stay shallow.
  7. 07

    The reimplant over a stent

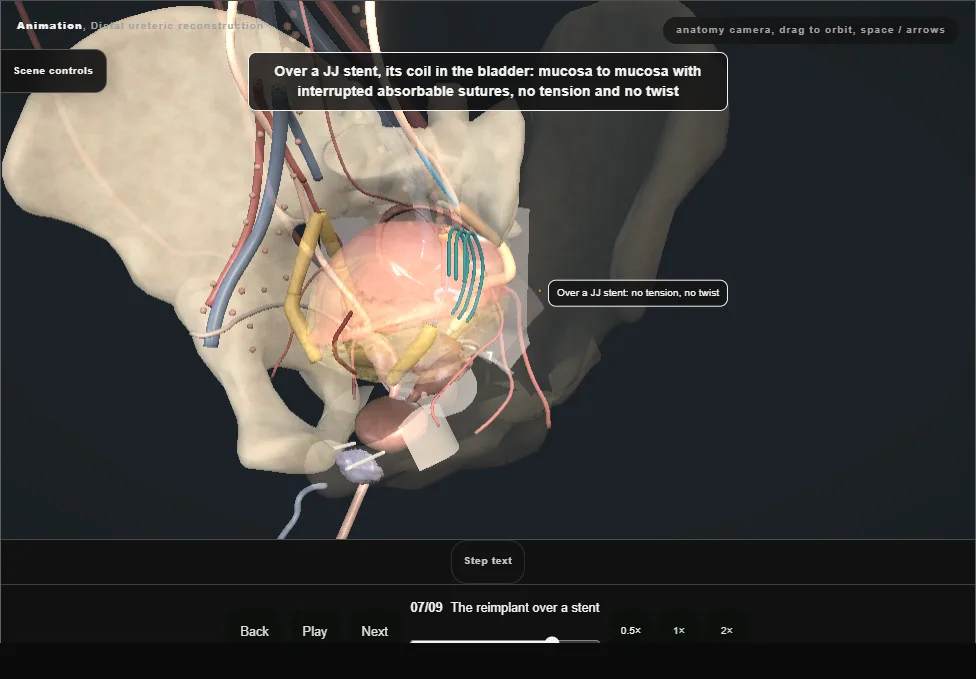

    Distal ureteric reconstruction. Step 7: The reimplant over a stent. Captured frame from the interactive animation.
    • A cystotomy;
    • the spatulated ureter through a new hiatus and a submucosal tunnel of about three times its width (a direct join for the rest);
    • mucosa to mucosa, interrupted absorbable sutures over a JJ stent, no tension and no twist.
  8. 08

    The Boari flap

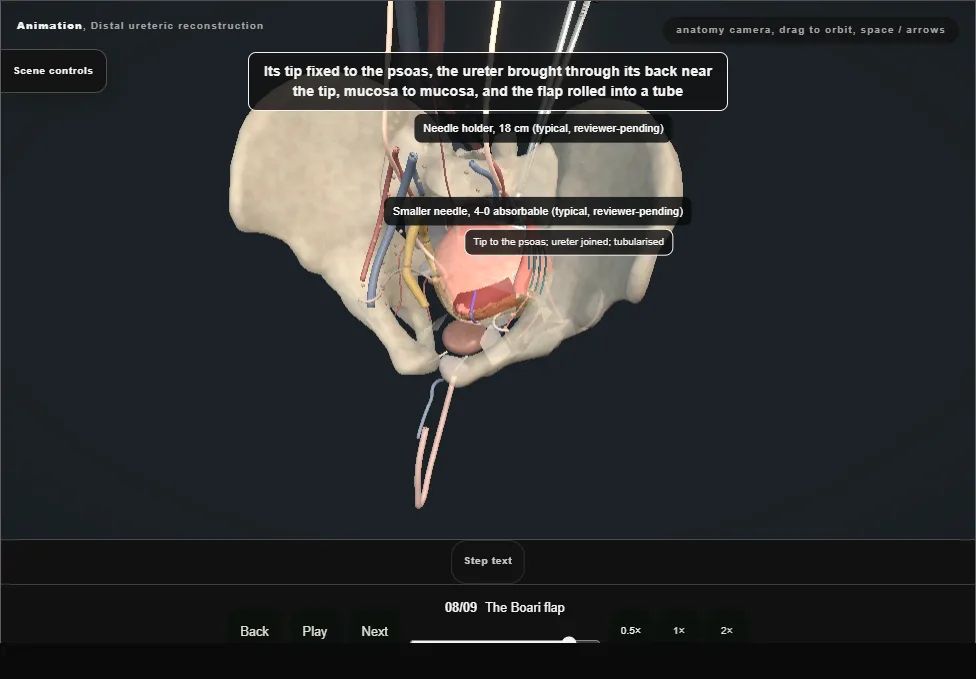

    Distal ureteric reconstruction. Step 8: The Boari flap. Captured frame from the interactive animation.
    • When the hitch will not reach, instead of the direct reimplant: a flap of anterior bladder wall on a wide base, raised and turned up, its tip fixed to the psoas;
    • the ureter brought through its back near the tip, spatulated, mucosa to mucosa;
    • the flap rolled into a tube and the bladder closed.
  9. 09

    Closure, drains and after

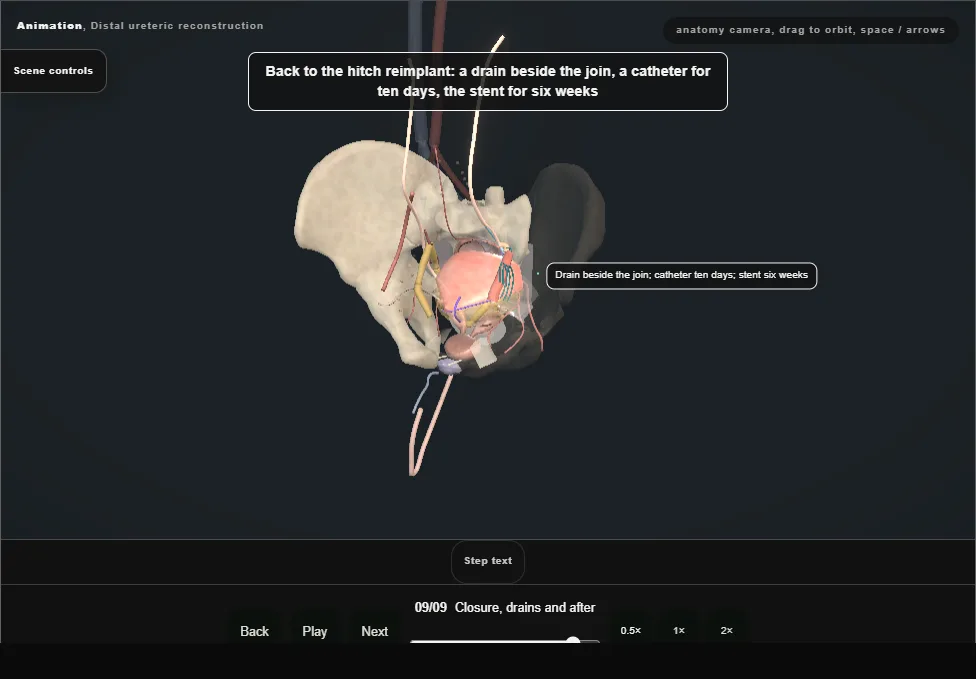

    Distal ureteric reconstruction. Step 9: Closure, drains and after. Captured frame from the interactive animation.
    • A drain beside the join, a catheter for ten days, the stent for six weeks; a cystogram before the catheter goes and a MAG3 after the stent.
    • A stricture at the join declares itself in the first year.
