Emergency decompression of the infected obstructed kidney

9 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

    Who

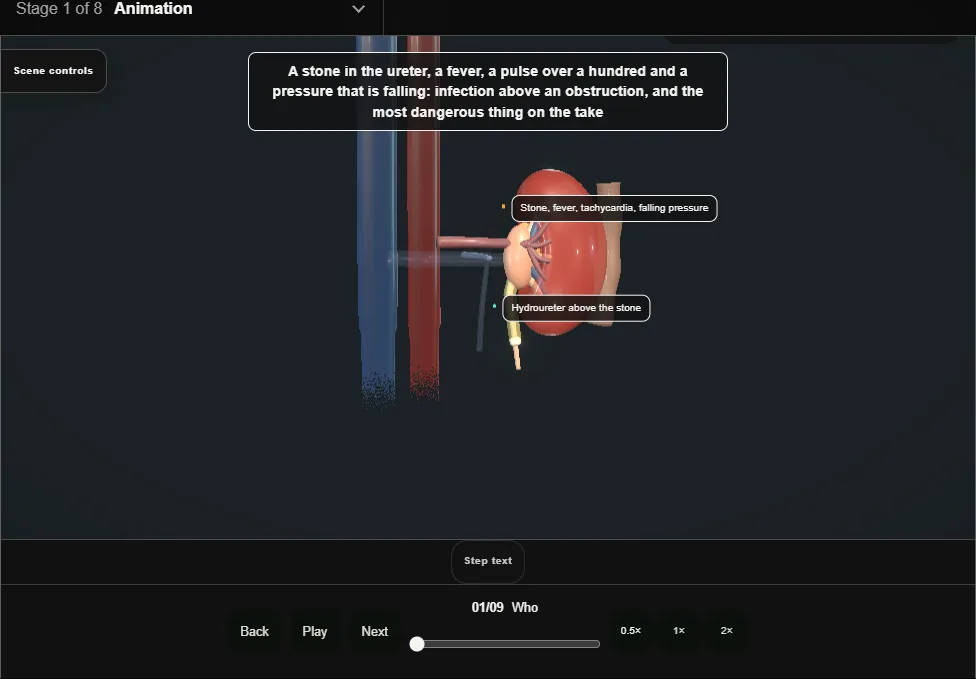

    Emergency decompression of the infected obstructed kidney. Step 1: Who. Captured frame from the interactive animation.
    • A stone in the ureter, a fever, a pulse over a hundred and a pressure that is falling: infection above an obstruction.
    • Also the tumour, the stricture and the pregnancy that obstruct; the cause does not change the rule.
  2. 02

    Sepsis six and the clock

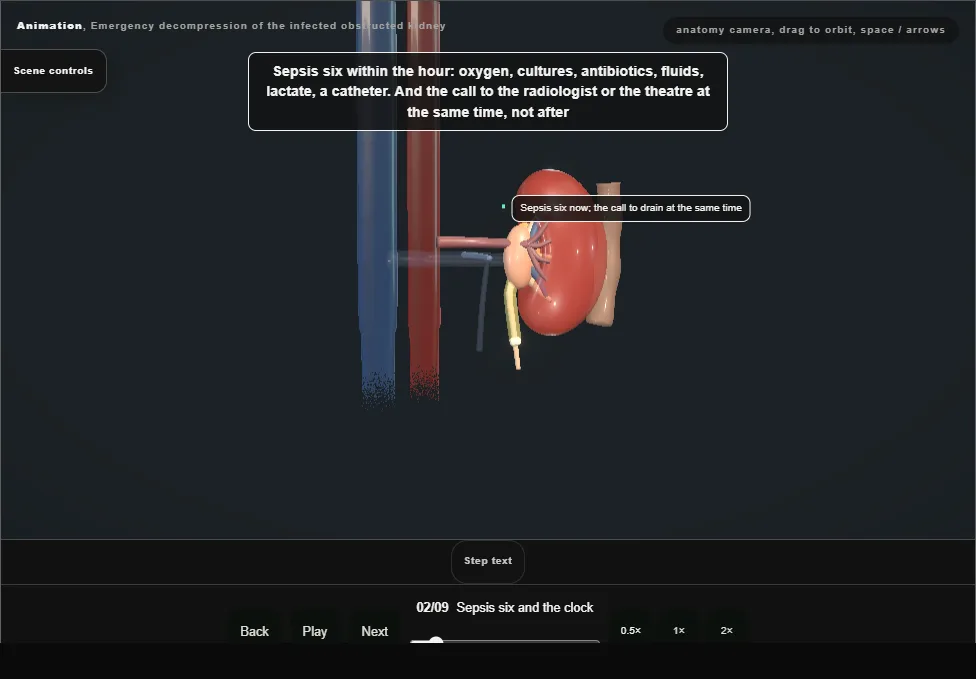

    Emergency decompression of the infected obstructed kidney. Step 2: Sepsis six and the clock. Captured frame from the interactive animation.
    • Oxygen, cultures, antibiotics, fluids, lactate, a catheter within the hour, and the call to drain at the same time, not after.
    • The pus must come out tonight, and the clock is the patient's pressure.
  3. 03

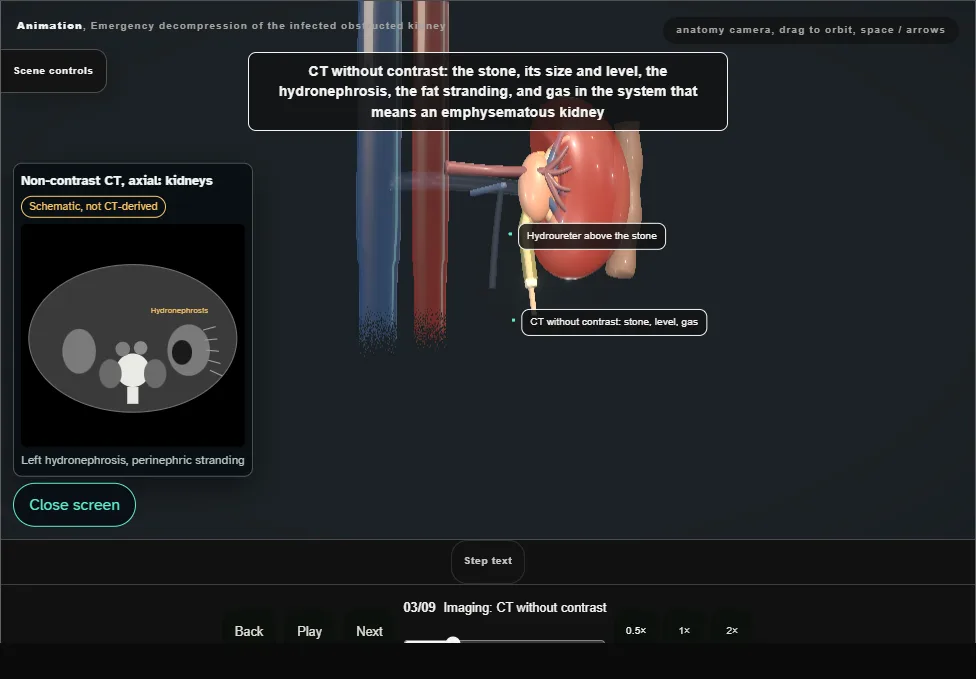

    Imaging: CT without contrast

    Emergency decompression of the infected obstructed kidney. Step 3: Imaging: CT without contrast. Captured frame from the interactive animation.
    • The stone, its size and level, the hydronephrosis, the fat stranding, and gas that means an emphysematous kidney.
    • The creatinine and potassium, the other kidney, the clotting and antiplatelets that decide between needle and scope.
  4. 04

    Nephrostomy or stent

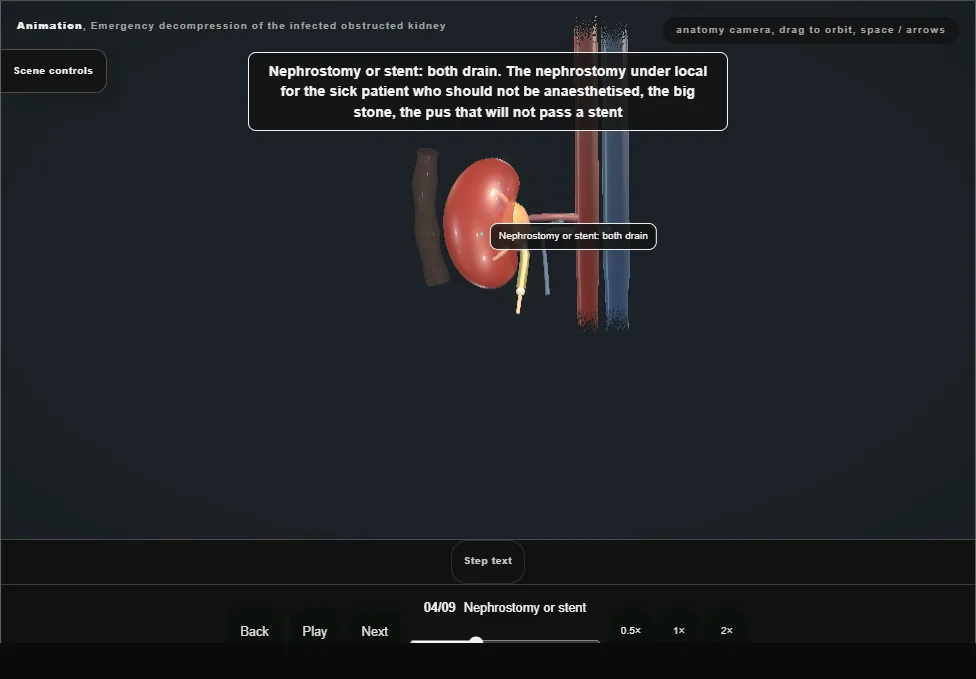

    Emergency decompression of the infected obstructed kidney. Step 4: Nephrostomy or stent. Captured frame from the interactive animation.
    • Both drain.
    • The nephrostomy under local for the sick patient, the big stone, the pus that will not pass a stent; the stent under anaesthetic for the small distal stone, the anticoagulated, the pregnant.
    • The choice is who is available and how sick the patient is.
  5. 05

    The nephrostomy

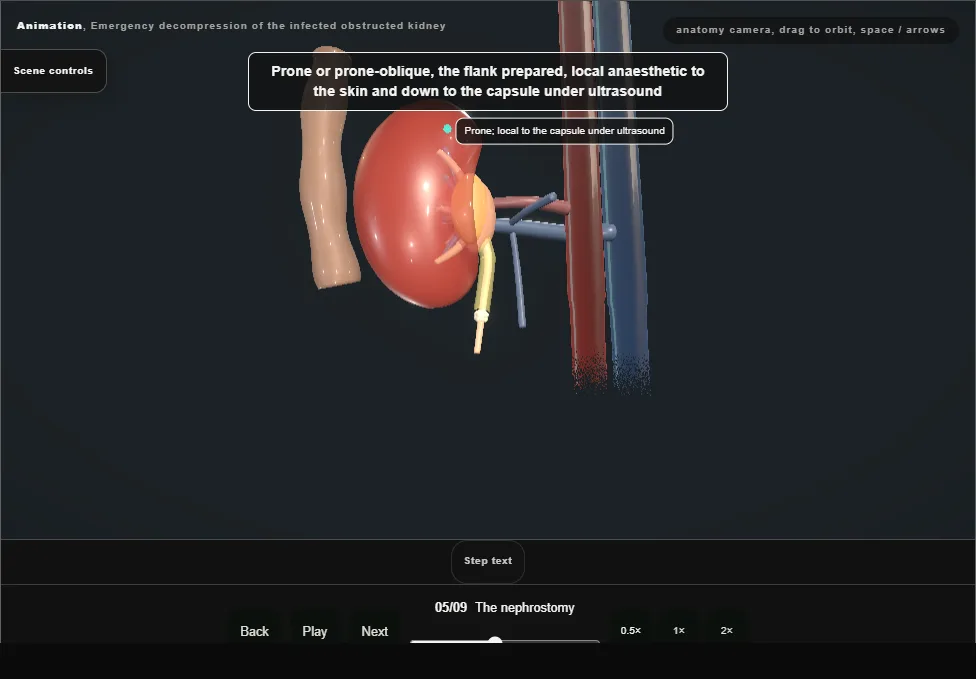

    Emergency decompression of the infected obstructed kidney. Step 5: The nephrostomy. Captured frame from the interactive animation.
    • Prone, local anaesthetic to the capsule under ultrasound, the needle into the posterior lower calyx through Brodel's line below the twelfth rib;
    • urine or pus back and sampled;
    • the wire coiled in the pelvis, the tract dilated, an 8 French pigtail locked in.
  6. 06

    The alternative: a retrograde stent

    Emergency decompression of the infected obstructed kidney. Step 6: The alternative: a retrograde stent. Captured frame from the interactive animation.
    • Instead of the nephrostomy, not as well: cystoscopy, the orifice, a wire past the stone under screening, a stent over it, and no attempt at the stone tonight.
    • A wire that will not pass is a nephrostomy on the same table.
  7. 07

    Pus

    Emergency decompression of the infected obstructed kidney. Step 7: Pus. Captured frame from the interactive animation.
    • It drains, it is cultured, the antibiotics are changed to what grows, and the tube stays until the fever and counts settle.
    • Gas in the kidney or a kidney that does not settle is emphysematous pyelonephritis: drainage, and a nephrectomy for the one that fails.
  8. 08

    The stone later

    Emergency decompression of the infected obstructed kidney. Step 8: The stone later. Captured frame from the interactive animation.
    • Treated weeks later when the infection is gone, by ureteroscopy or lithotripsy, with the tube or the stent still in until it is.
  9. 09

    After

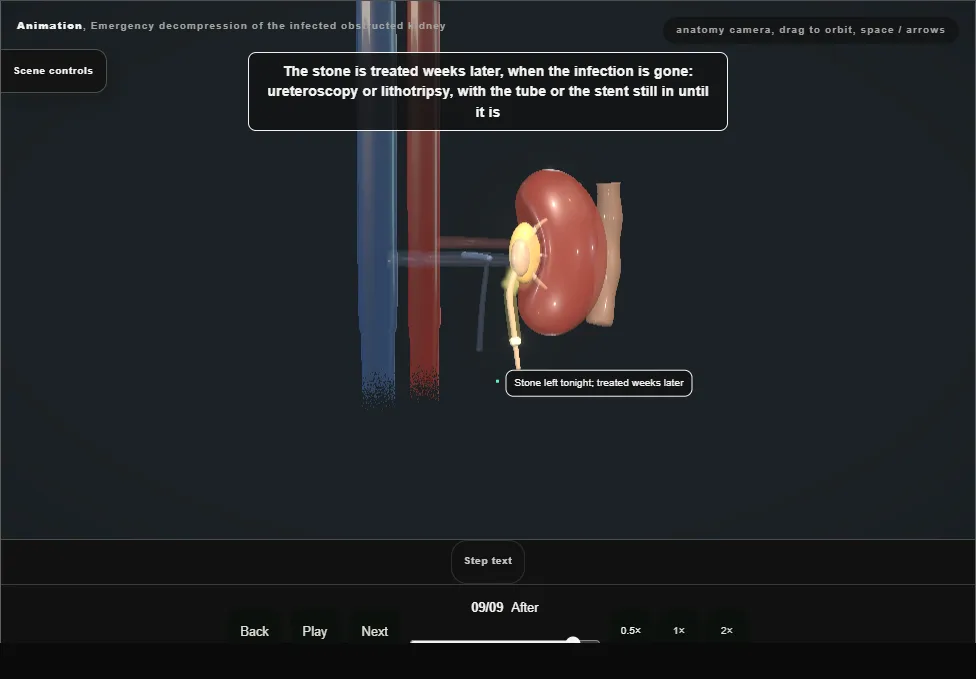

    Emergency decompression of the infected obstructed kidney. Step 9: After. Captured frame from the interactive animation.
    • An obstructed infected kidney is drained the night it is found, and the register records the time from door to drain.
