Revision sheet

Percutaneous nephrostomy

5 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

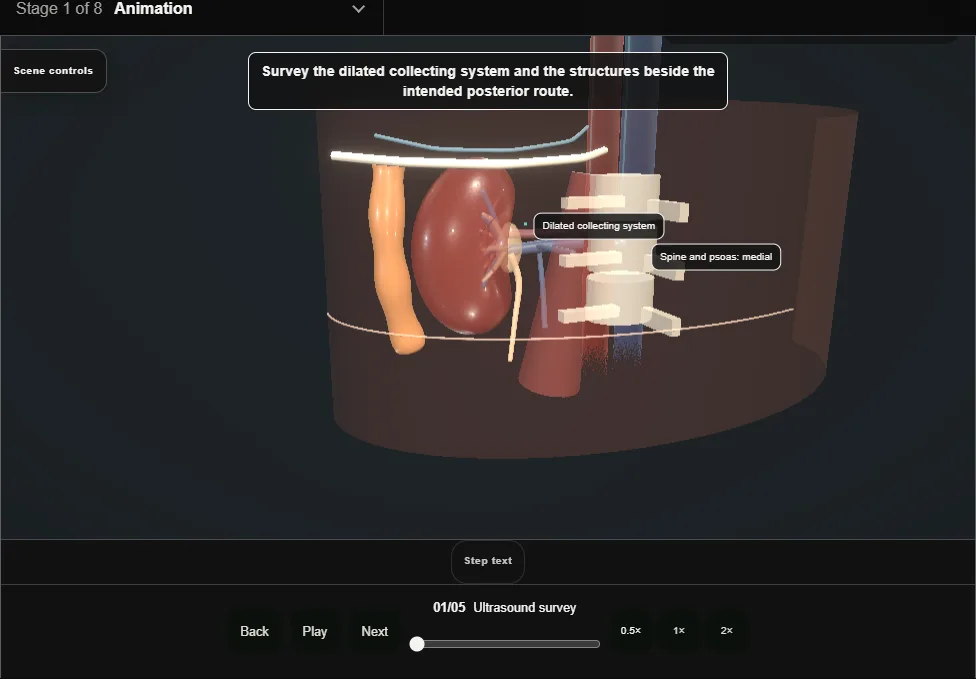

    Ultrasound survey

    Percutaneous nephrostomy. Step 1: Ultrasound survey. Captured frame from the interactive animation.
    • Prone position, ultrasound on: confirm the dilated system, pick a posterior calyx below the 12th rib, and clear the colon off the intended line before the needle is loaded.
  2. 02

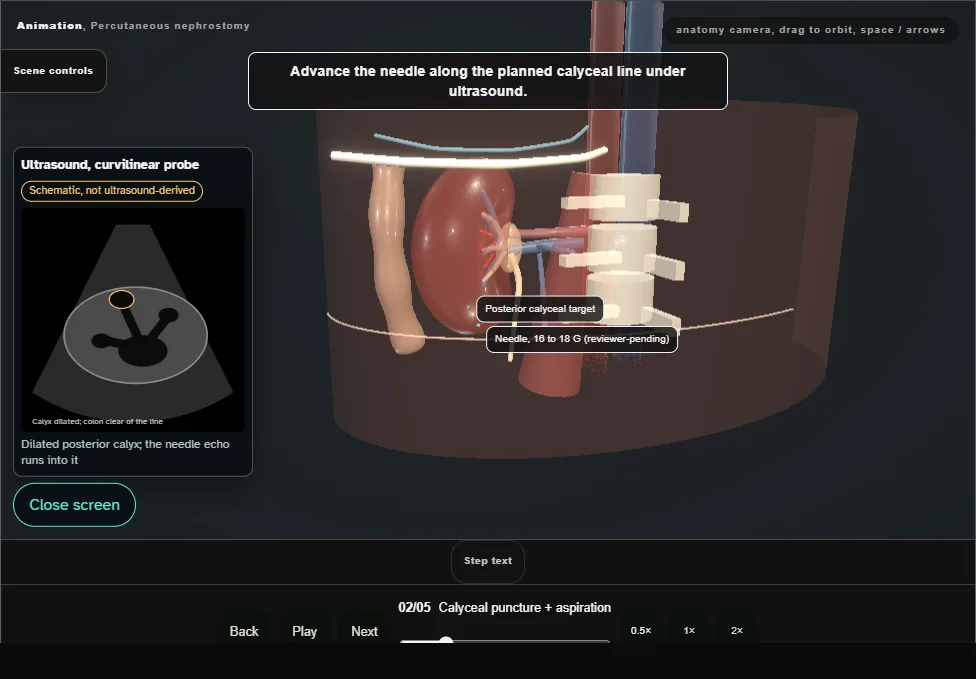

    Calyceal puncture + aspiration

    Percutaneous nephrostomy. Step 2: Calyceal puncture + aspiration. Captured frame from the interactive animation.
    • The needle enters the calyx through the parenchyma along the infundibular axis.
    • Aspirate urine for culture - efflux confirms position; no efflux means re-image, not push.
  3. 03

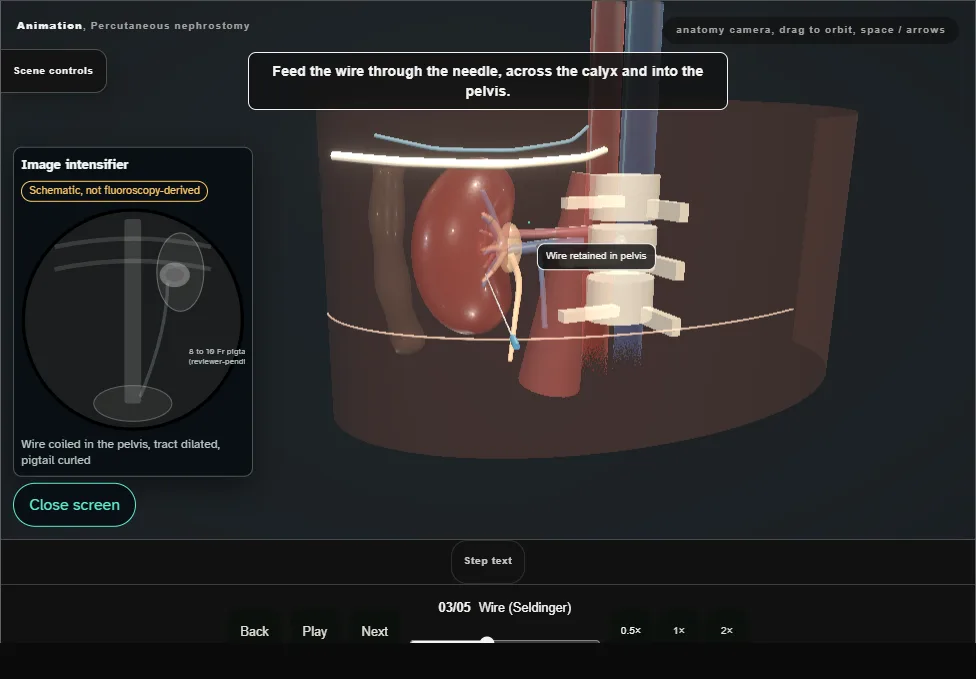

    Wire (Seldinger)

    Percutaneous nephrostomy. Step 3: Wire (Seldinger). Captured frame from the interactive animation.
    • A guidewire coils into the pelvis.
    • Enough wire must sit inside the system that it cannot fall out during exchange.
  4. 04

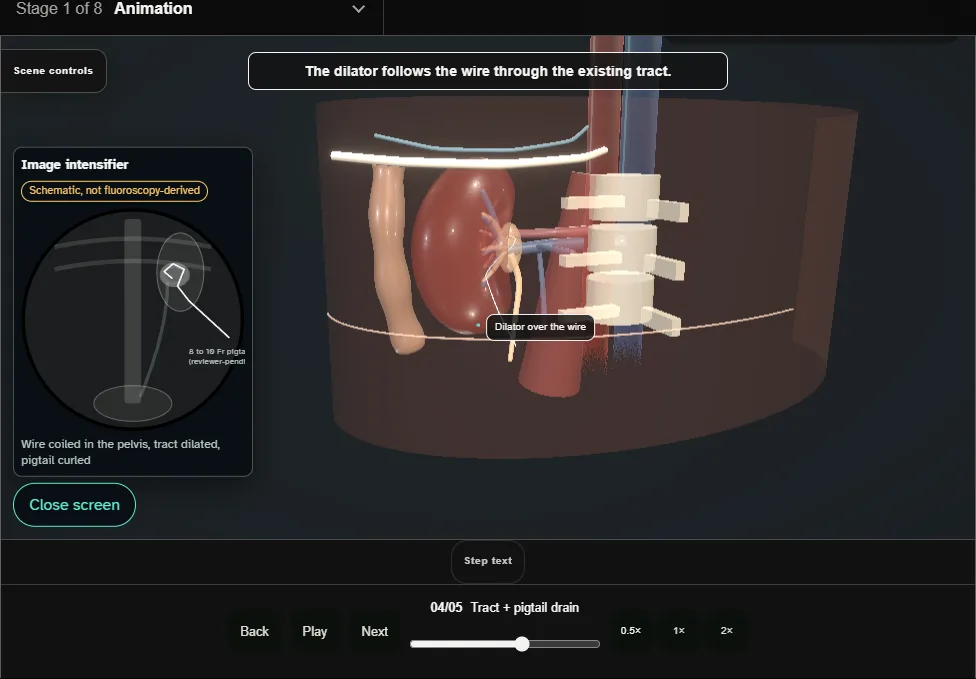

    Tract + pigtail drain

    Percutaneous nephrostomy. Step 4: Tract + pigtail drain. Captured frame from the interactive animation.
    • Dilate over the wire and railroad the pigtail drain into the pelvis.
    • The coil, not the tip, holds the drain in the system.
  5. 05

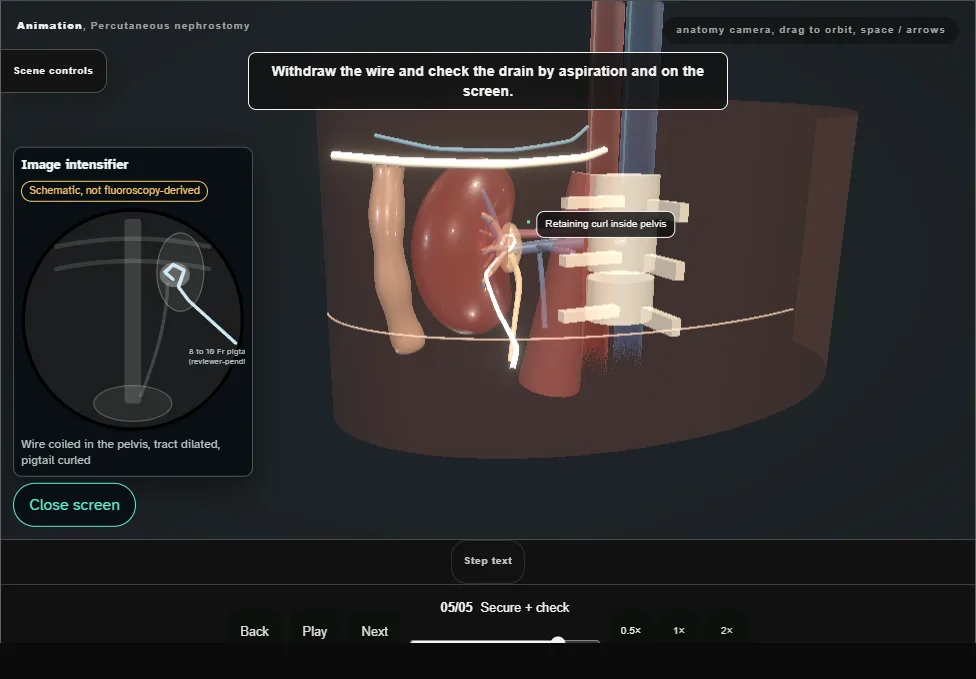

    Secure + check

    Percutaneous nephrostomy. Step 5: Secure + check. Captured frame from the interactive animation.
    • Aspirate again, sample for culture, secure the drain to skin and confirm position with a film or CT.
    • Decompression, not stone clearance, is the operation.
