Revision sheet

Optilume BPH: the drug-coated balloon

7 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

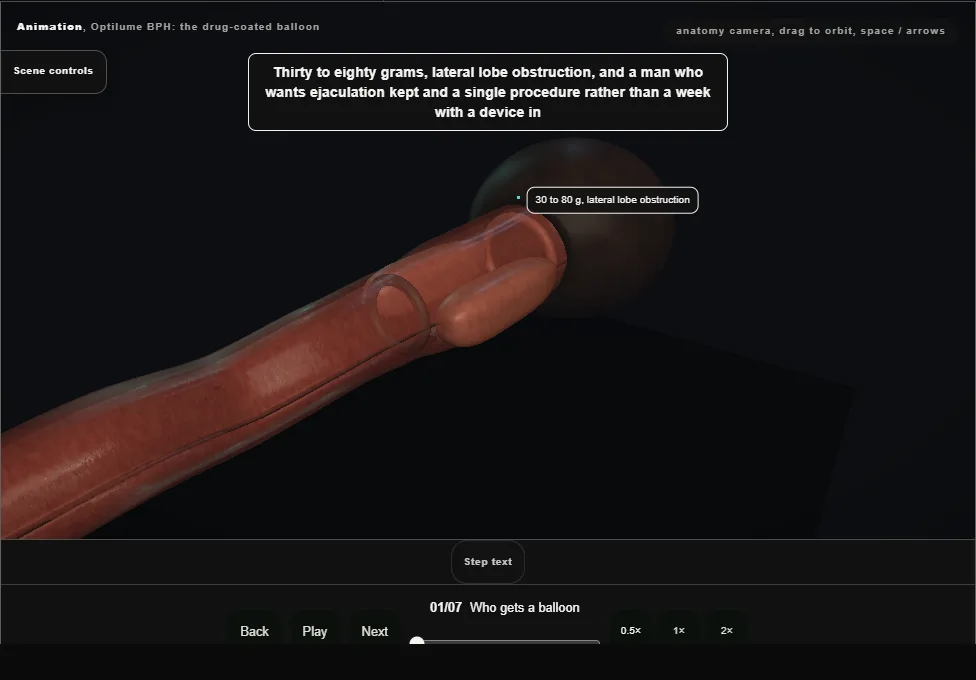

    Who gets a balloon

    Optilume BPH: the drug-coated balloon. Step 1: Who gets a balloon. Captured frame from the interactive animation.
    • 30 to 80 g with lateral lobe obstruction, in a man who wants ejaculation kept and one procedure rather than a week with a device in.
    • Consent covers a catheter for two to three days, blood, urgency, infection, and a coating whose long-term effect is still being followed.
  2. 02

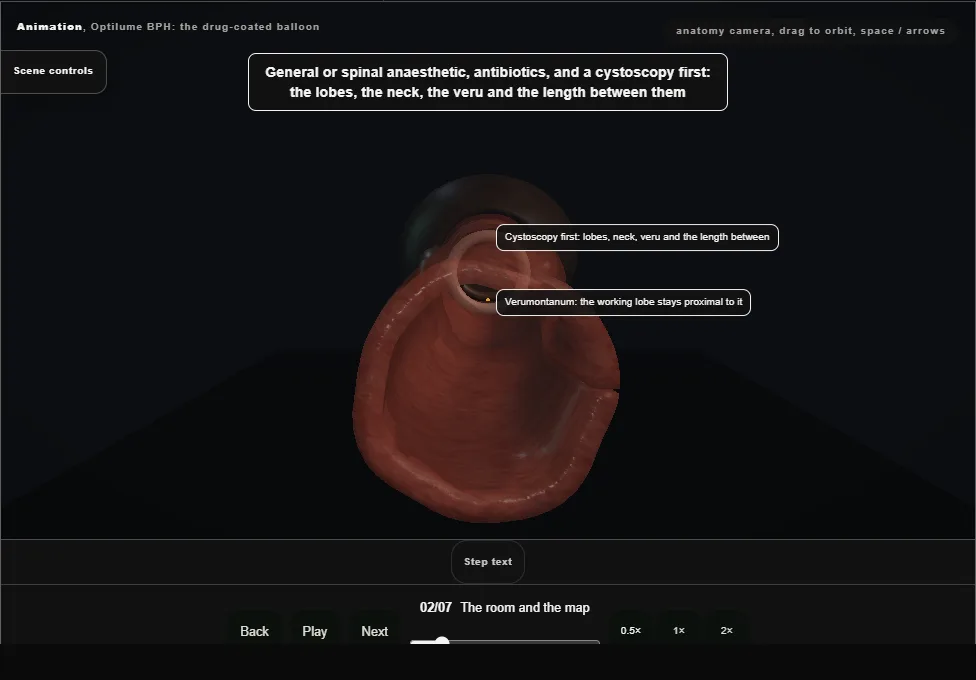

    The room and the map

    Optilume BPH: the drug-coated balloon. Step 2: The room and the map. Captured frame from the interactive animation.
    • General or spinal anaesthetic, antibiotics, cystoscopy first.
    • The veru is the distal limit.
    • The length from the neck to the veru picks the balloon (typically 30 x 30 or 30 x 35 mm), and a wire goes into the bladder.
  3. 03

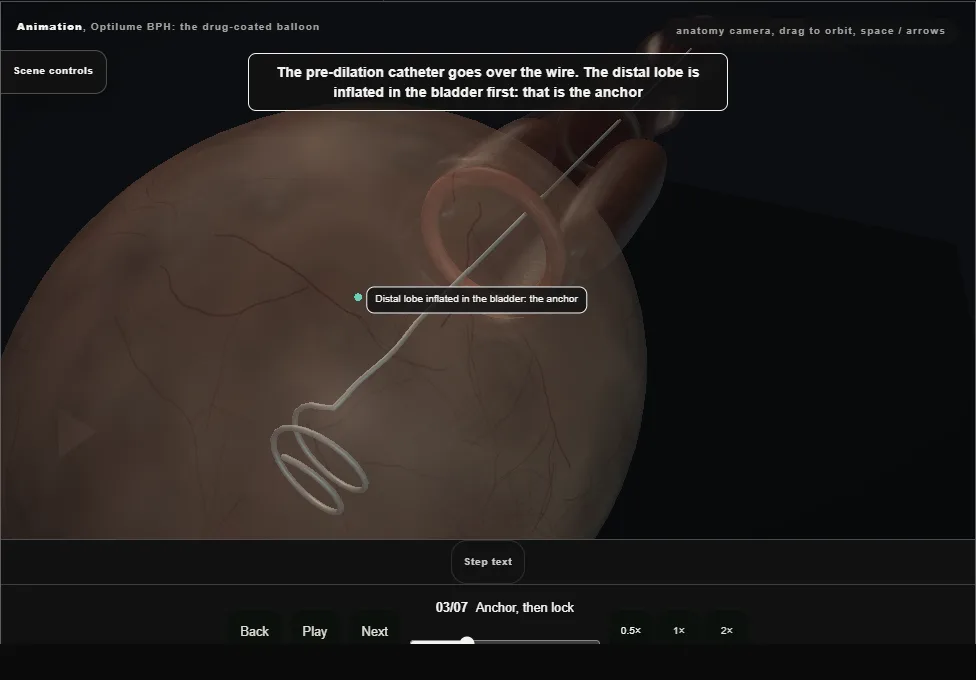

    Anchor, then lock

    Optilume BPH: the drug-coated balloon. Step 3: Anchor, then lock. Captured frame from the interactive animation.
    • The pre-dilation catheter goes over the wire.
    • The distal lobe inflates in the bladder as the anchor, and the reinforced neck is pulled back until it locks on the bladder neck.
    • It cannot migrate while it is inflated.
  4. 04

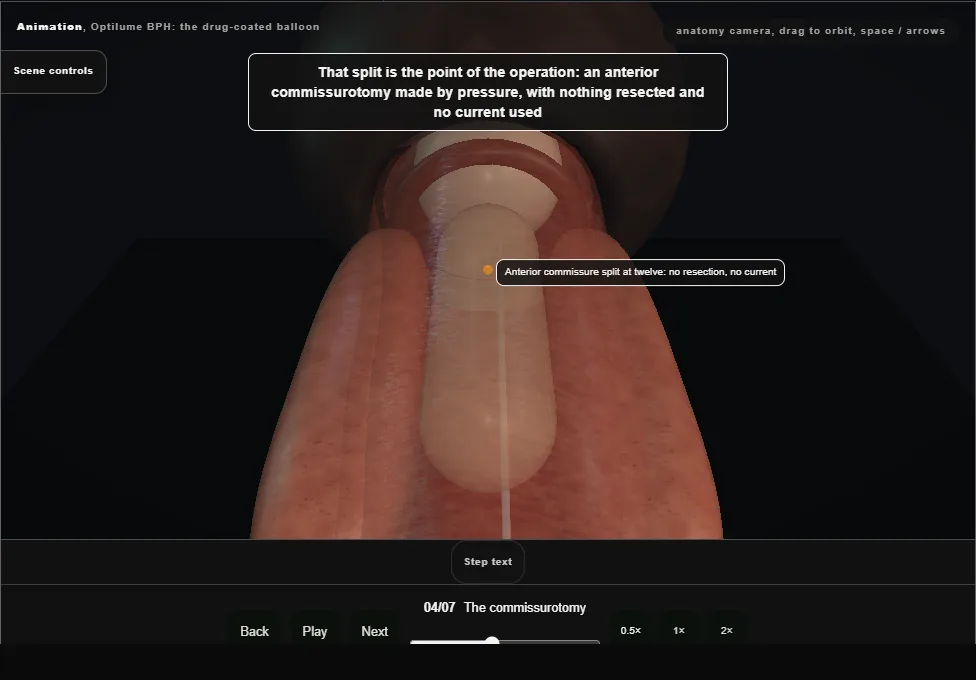

    The commissurotomy

    Optilume BPH: the drug-coated balloon. Step 4: The commissurotomy. Captured frame from the interactive animation.
    • The proximal lobe dilates inside the prostatic urethra until the anterior commissure gives way at twelve o'clock.
    • That split is the operation: nothing is resected and no current is used.
    • Never at six, where the veru and the ejaculatory ducts are.
  5. 05

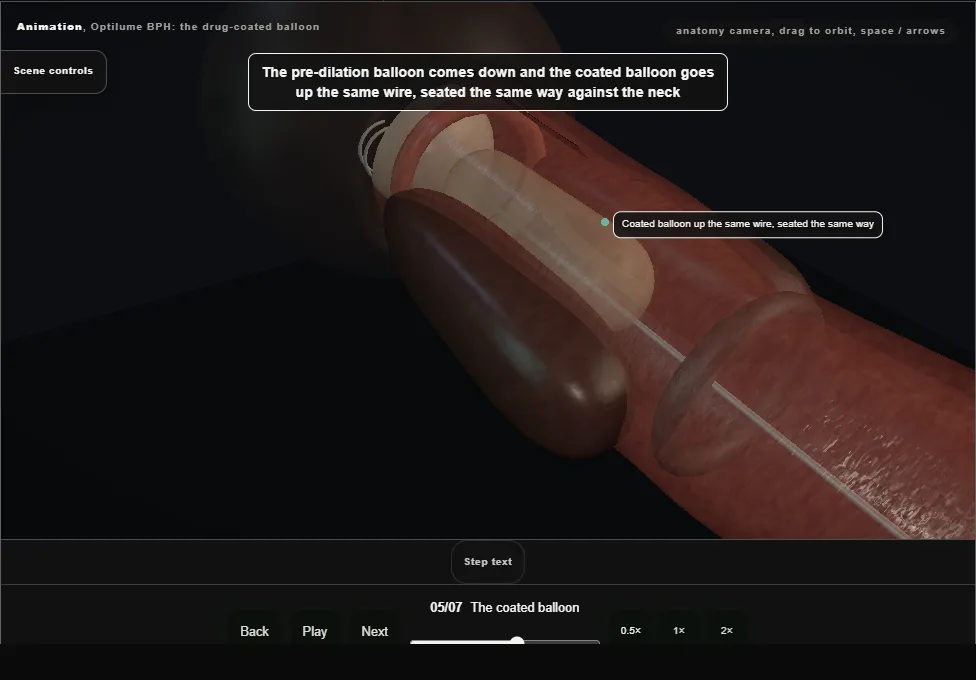

    The coated balloon

    Optilume BPH: the drug-coated balloon. Step 5: The coated balloon. Captured frame from the interactive animation.
    • The pre-dilation balloon comes down and the coated balloon goes up the same wire, seated the same way.
    • Inflated and held, typically at least five minutes, so paclitaxel transfers into the raw surface of the split and the lobes do not fuse back.
  6. 06

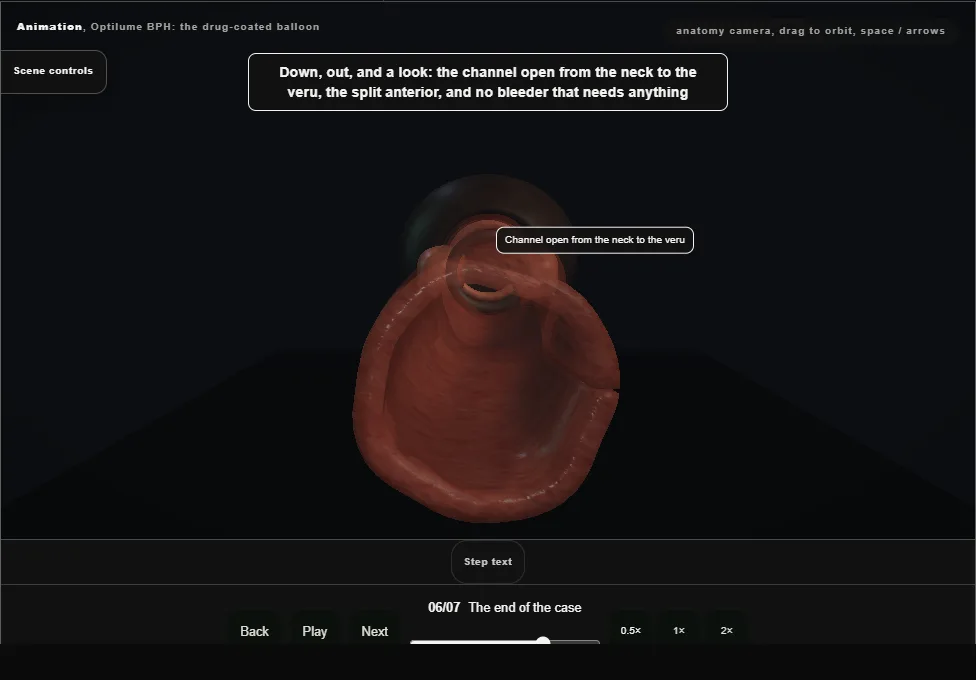

    The end of the case

    Optilume BPH: the drug-coated balloon. Step 6: The end of the case. Captured frame from the interactive animation.
    • Down, out, and a look: the channel open from the neck to the veru and the split anterior.
    • A catheter for two to three days, because the split surface bleeds and swells before it settles.
  7. 07

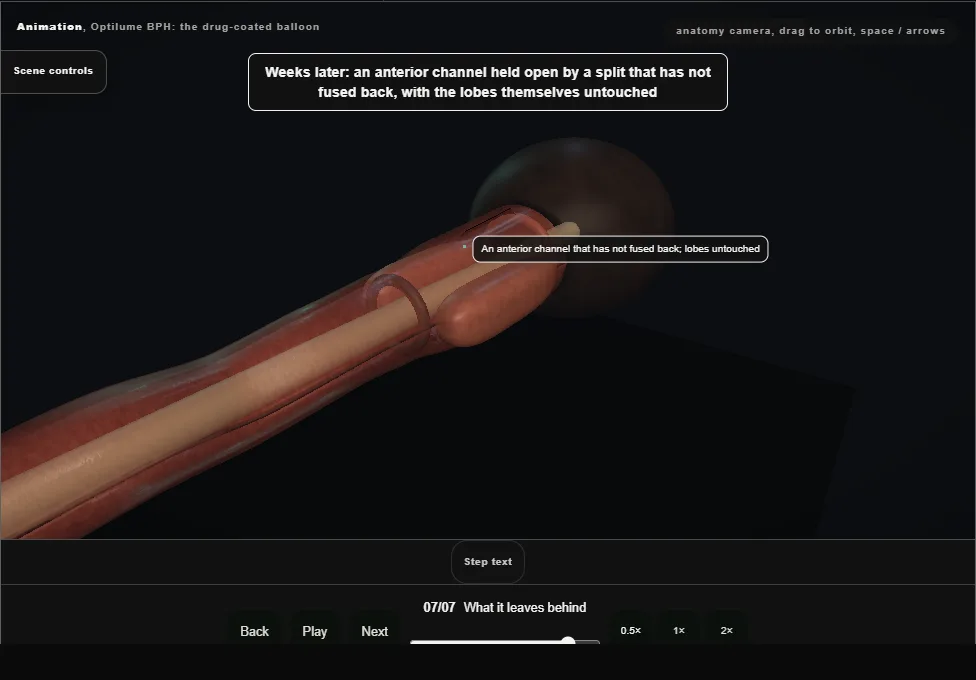

    What it leaves behind

    Optilume BPH: the drug-coated balloon. Step 7: What it leaves behind. Captured frame from the interactive animation.
    • An anterior channel held open by a split that has not fused back, with the lobes themselves untouched.
    • Symptoms improve early and ejaculation is usually kept.
    • Durability past the trial years is the open question, and the man is told so.
