Revision sheet

Robot-assisted radical prostatectomy (nerve-sparing)

7 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

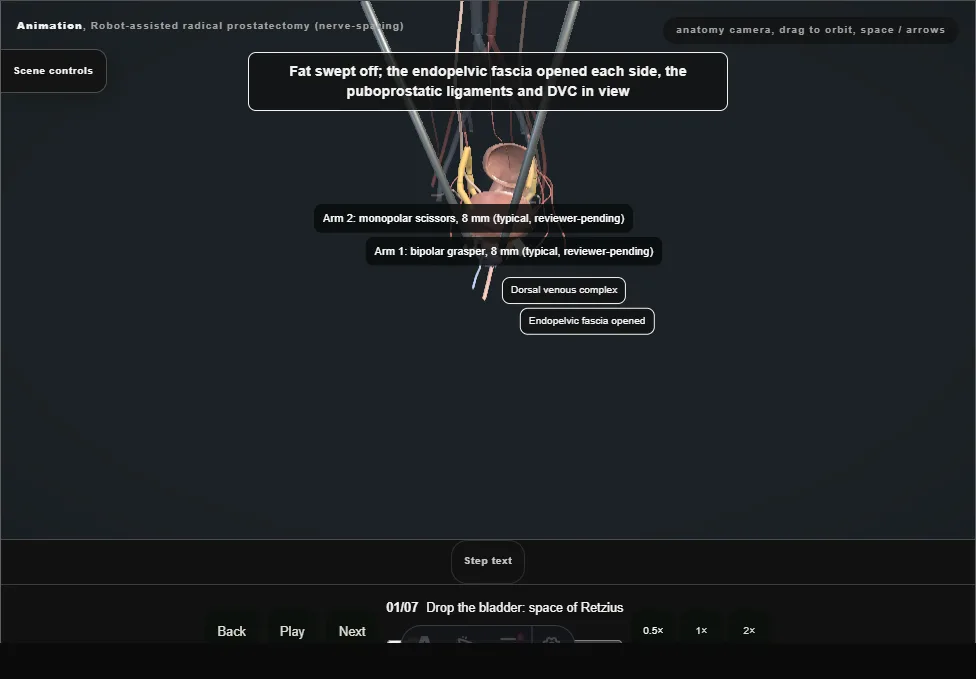

    Drop the bladder: space of Retzius

    Robot-assisted radical prostatectomy (nerve-sparing). Step 1: Drop the bladder: space of Retzius. Captured frame from the interactive animation.
    • Robot docked, 8 mm cannulas, steep head-down.
    • The retropubic fat is swept off the pubis and prostate to expose the endopelvic fascia.
    • Landmarks fixed: puboprostatic ligaments, the deep dorsal venous complex, the catheter in the urethra.
  2. 02

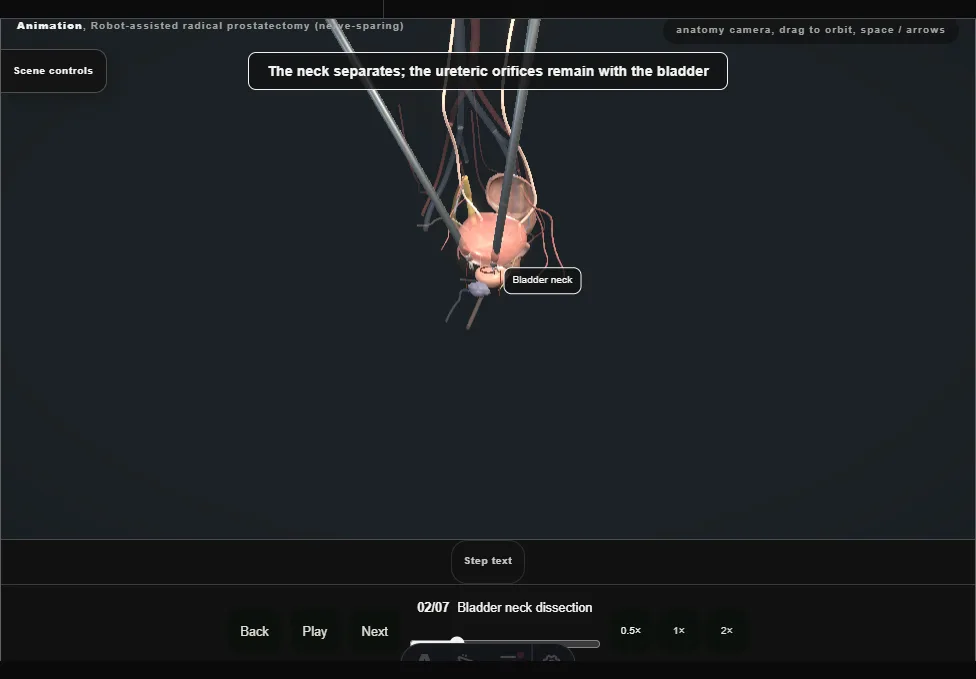

    Bladder neck dissection

    Robot-assisted radical prostatectomy (nerve-sparing). Step 2: Bladder neck dissection. Captured frame from the interactive animation.
    • The plane between bladder and prostate is opened at 12 then around.
    • The neck is transected exactly at the prostate: too wide damages the ureteric orifices, too narrow turns into the prostate.
  3. 03

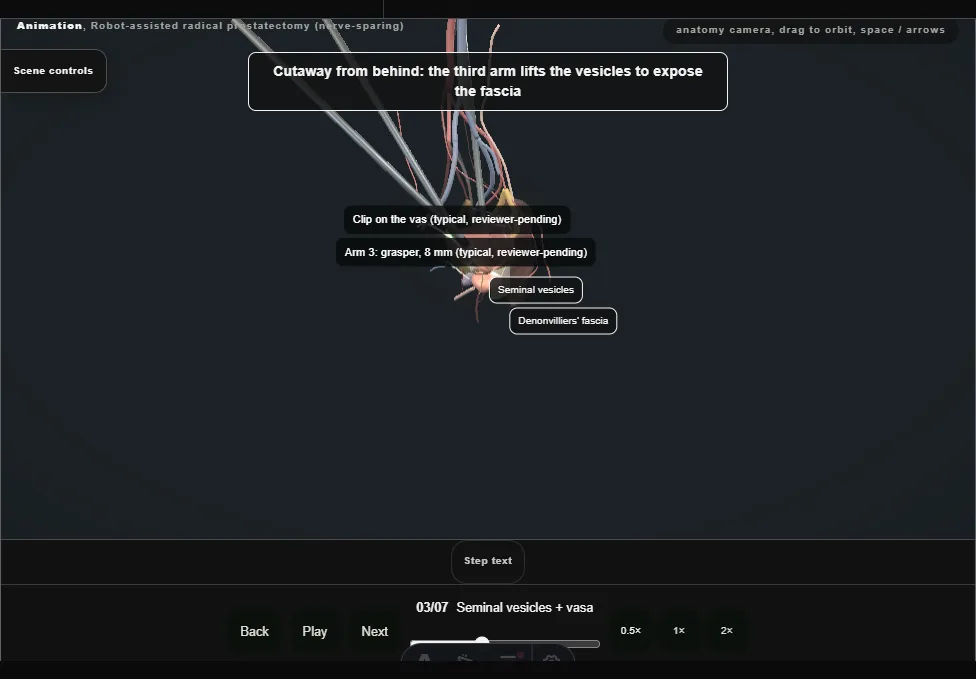

    Seminal vesicles + vasa

    Robot-assisted radical prostatectomy (nerve-sparing). Step 3: Seminal vesicles + vasa. Captured frame from the interactive animation.
    • Behind the neck, the vasa are clipped and divided and the seminal vesicles freed.
    • The vesicle tips mark where Denonvilliers' fascia is entered next.
    • Seen here as a cutaway from behind.
  4. 04

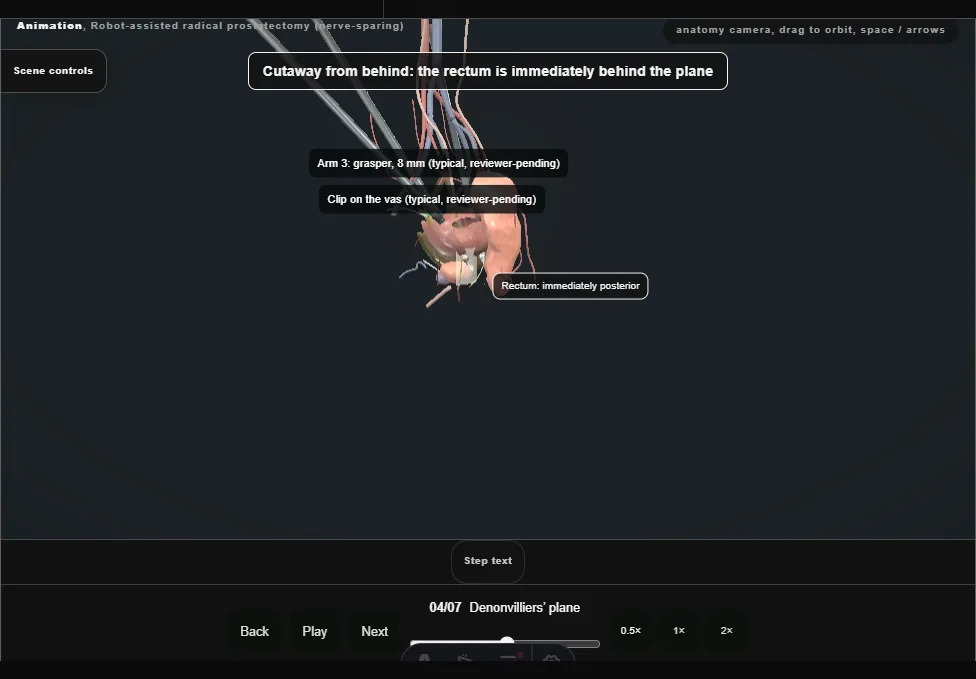

    Denonvilliers’ plane

    Robot-assisted radical prostatectomy (nerve-sparing). Step 4: Denonvilliers’ plane. Captured frame from the interactive animation.
    • The pearly plane between the prostate-vesicle packet and the rectum is opened and developed to the apex.
    • Stay on the fascia; the rectum is the next layer down.
  5. 05

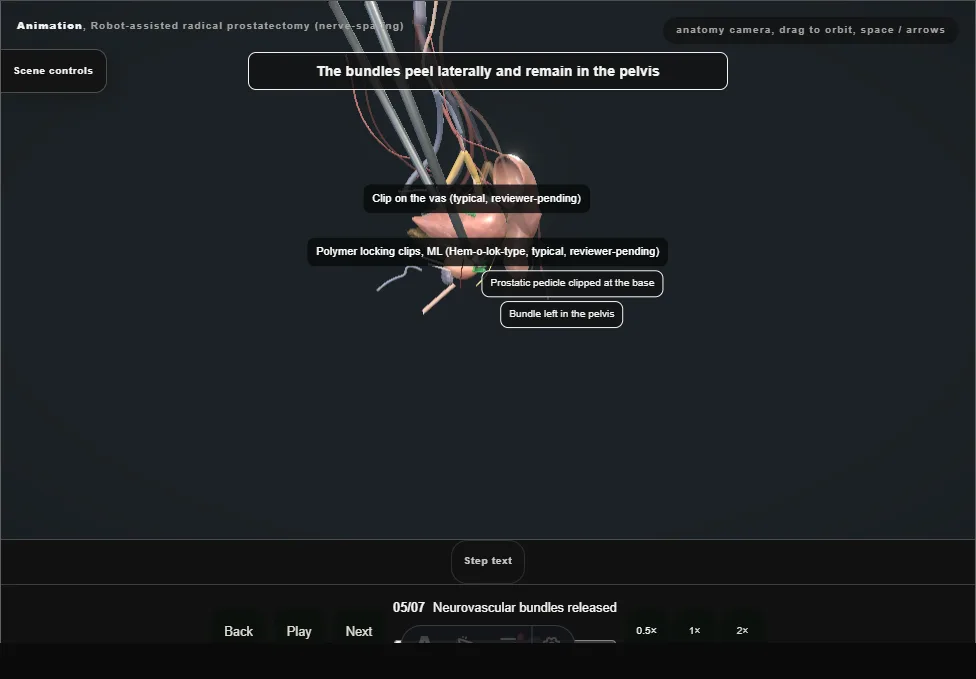

    Neurovascular bundles released

    Robot-assisted radical prostatectomy (nerve-sparing). Step 5: Neurovascular bundles released. Captured frame from the interactive animation.
    • The prostatic pedicles are clipped at the base and cut without thermal energy beside the bundles; the bundles peel off the prostate posterolaterally and are left in the pelvis.
    • Sacrifice is a cancer decision, not an accident.
  6. 06

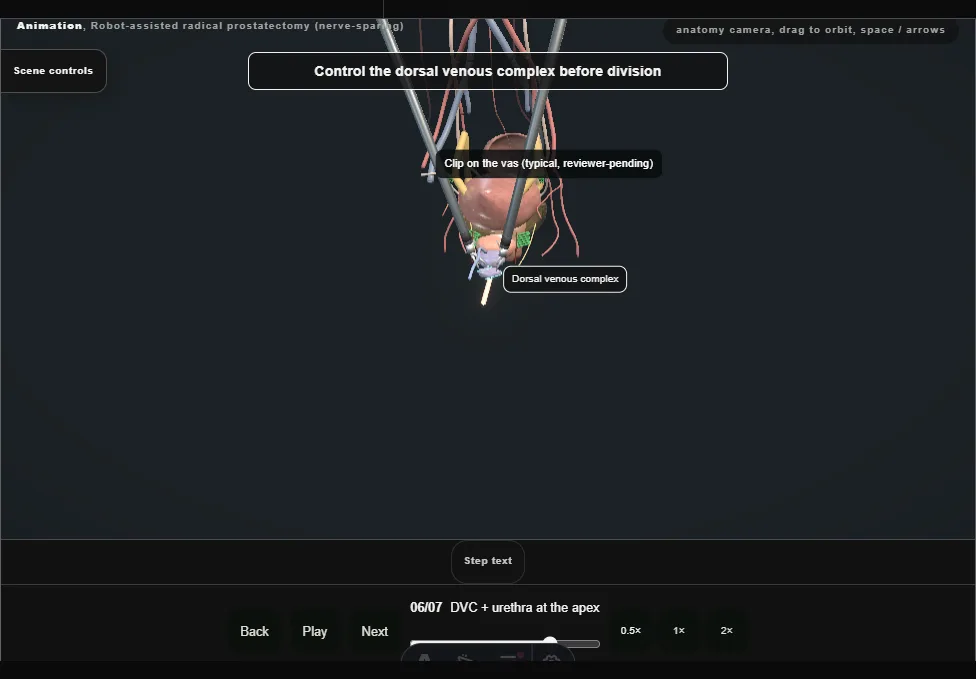

    DVC + urethra at the apex

    Robot-assisted radical prostatectomy (nerve-sparing). Step 6: DVC + urethra at the apex. Captured frame from the interactive animation.
    • The dorsal venous complex is controlled and divided, then the urethra is cut at the apex with as much sphincter and urethral length as the cancer allows: the continence and anastomosis live on this stump.
    • The specimen goes into a bag.
  7. 07

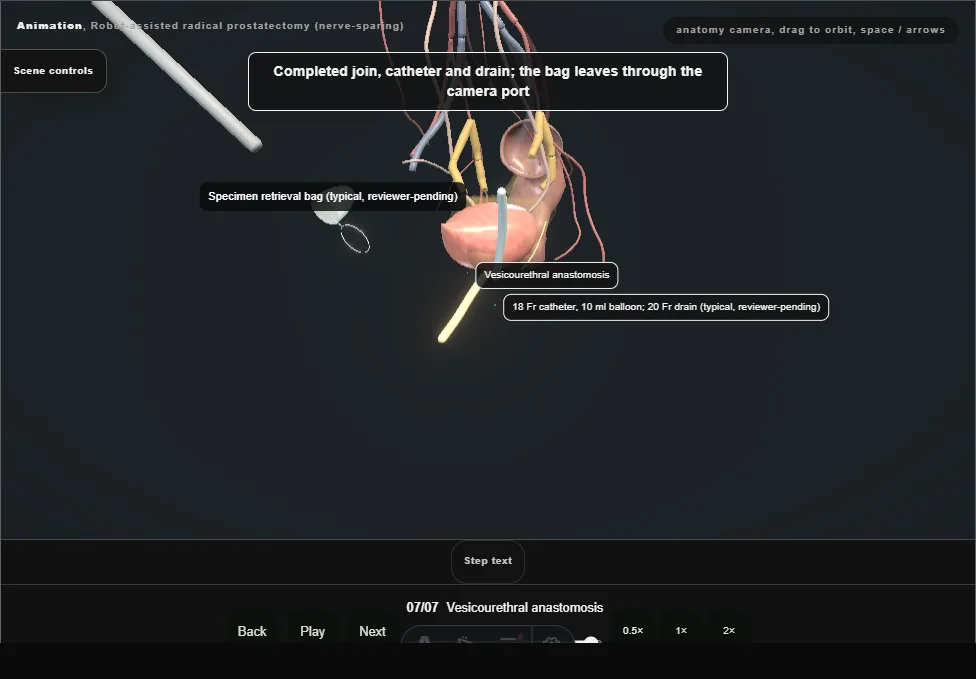

    Vesicourethral anastomosis

    Robot-assisted radical prostatectomy (nerve-sparing). Step 7: Vesicourethral anastomosis. Captured frame from the interactive animation.
    • A posterior row first, the bladder neck parachuted down onto the stump, a new catheter, then the anterior row: a running anastomosis, tested watertight, and a drain left.
    • The anastomotic leak and the bladder-neck contracture are both born here.
