Revision sheet

Retroperitoneal lymph node dissection

6 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

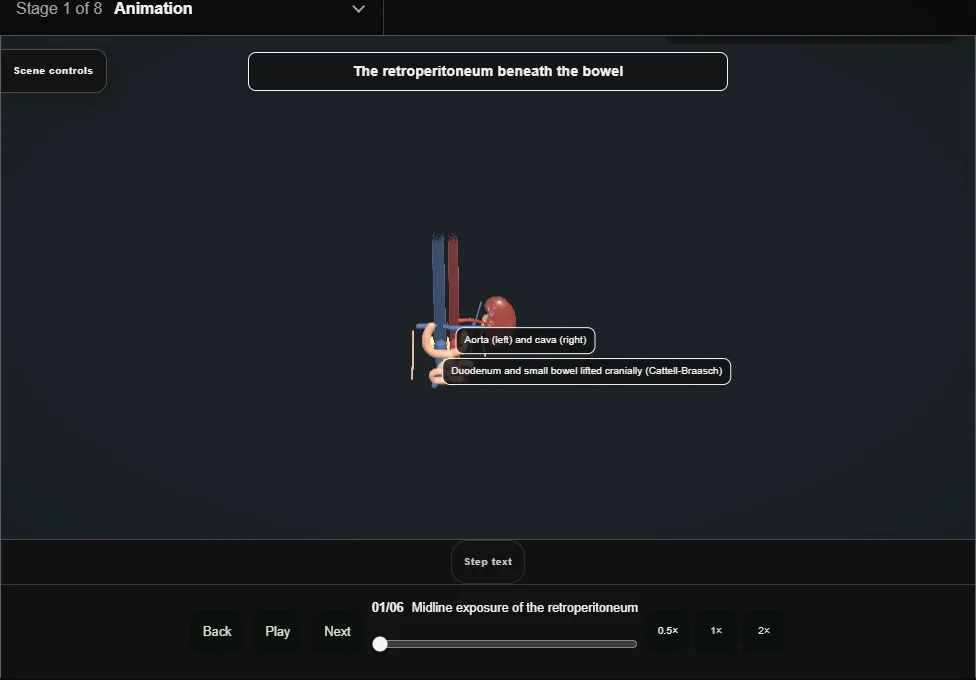

    Midline exposure of the retroperitoneum

    Retroperitoneal lymph node dissection. Step 1: Midline exposure of the retroperitoneum. Captured frame from the interactive animation.
    • The midline is opened and the posterior peritoneum incised, the duodenum and right colon mobilised off the great vessels until the retroperitoneum sits bare from renal veins to the bifurcation.
  2. 02

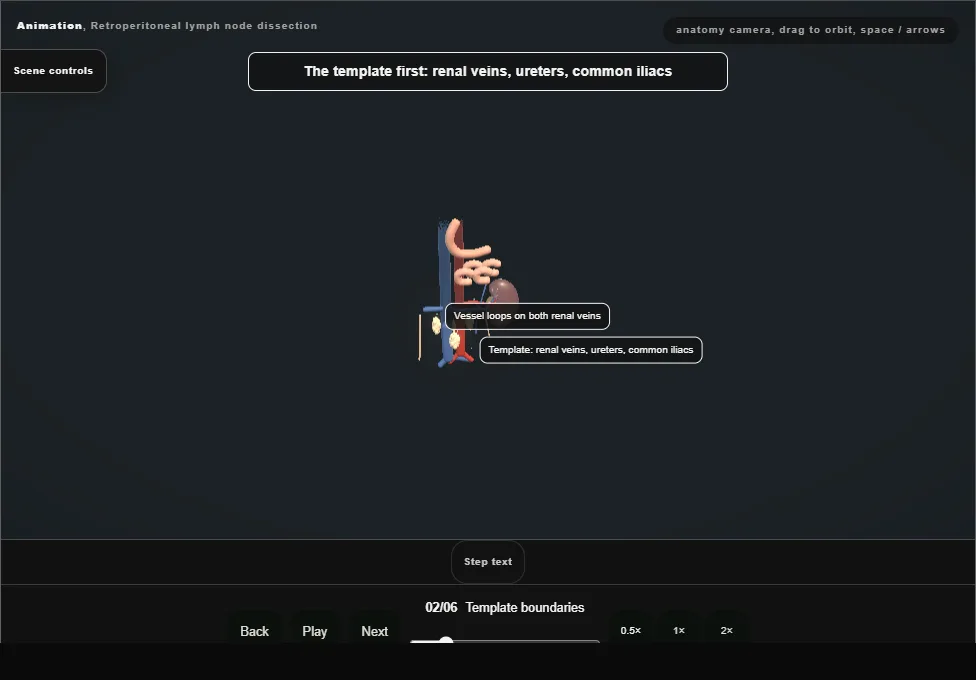

    Template boundaries

    Retroperitoneal lymph node dissection. Step 2: Template boundaries. Captured frame from the interactive animation.
    • The template is chosen before a vessel is touched: full bilateral for post-chemotherapy residual masses and bulky or bilateral disease, modified unilateral only for selected primary cases.
  3. 03

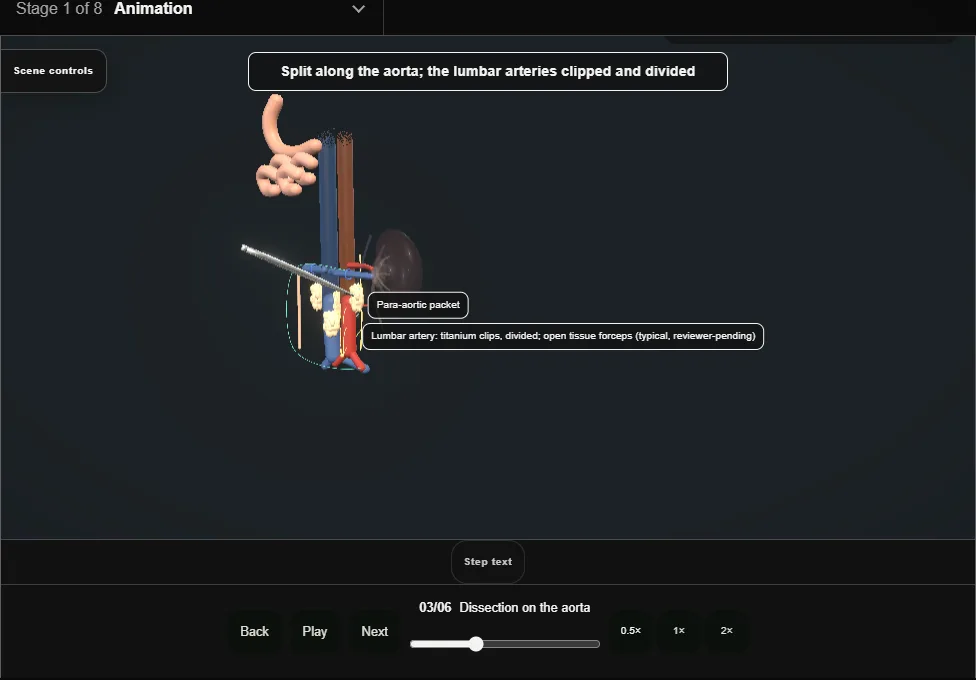

    Dissection on the aorta

    Retroperitoneal lymph node dissection. Step 3: Dissection on the aorta. Captured frame from the interactive animation.
    • The aorta is lifted and rolled and the lumbar arteries ligated or clipped as the packet comes off its wall.
    • The inferior mesenteric artery is preserved unless the template demands its division.
  4. 04

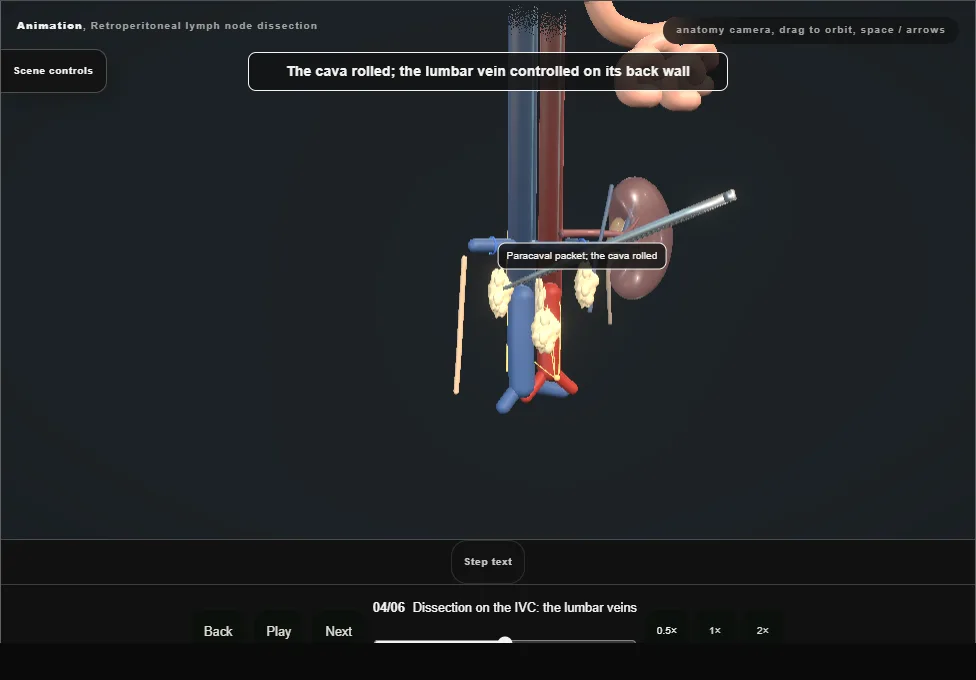

    Dissection on the IVC: the lumbar veins

    Retroperitoneal lymph node dissection. Step 4: Dissection on the IVC: the lumbar veins. Captured frame from the interactive animation.
    • The cava is rolled the same way.
    • The lumbar veins are the named pitfall of the operation: short, posterior, and they tear the cava at its back wall if pulled instead of controlled.
  5. 05

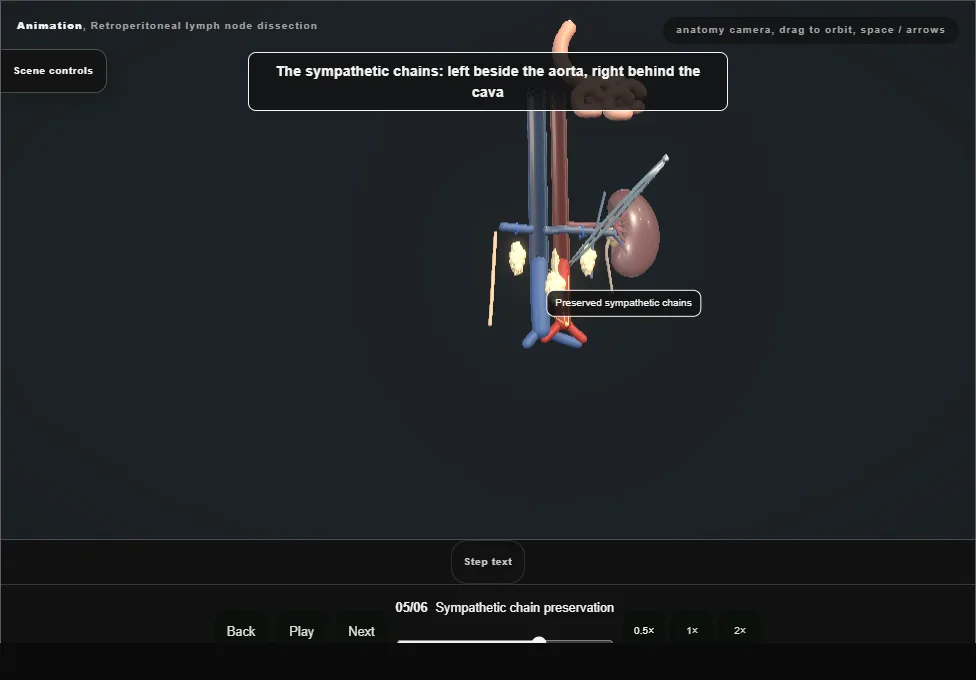

    Sympathetic chain preservation

    Retroperitoneal lymph node dissection. Step 5: Sympathetic chain preservation. Captured frame from the interactive animation.
    • The sympathetic chains are identified running longitudinal and lateral, picked up with the golden fibres of the postganglionic nerves, and preserved when the disease allows.
    • Ejaculation survives only if they do.
  6. 06

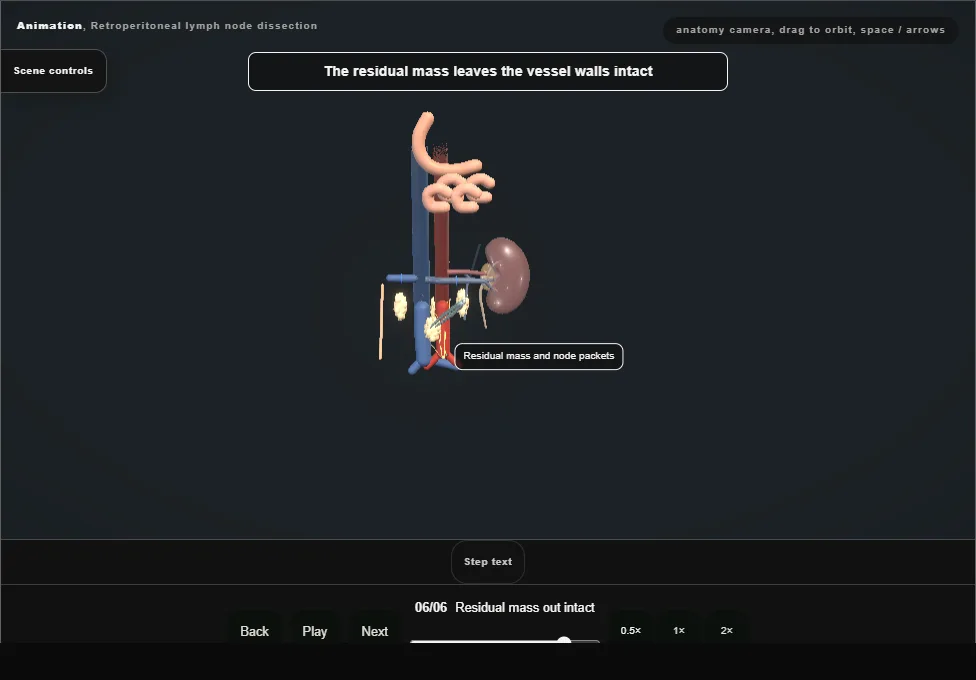

    Residual mass out intact

    Retroperitoneal lymph node dissection. Step 6: Residual mass out intact. Captured frame from the interactive animation.
    • The mass and all packets leave the vessel walls clean and intact.
    • Teratoma does not respond to chemotherapy: what is left behind grows, and malignant transformation is its endgame.
