Revision sheet

Hypospadias repair: TIP

7 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

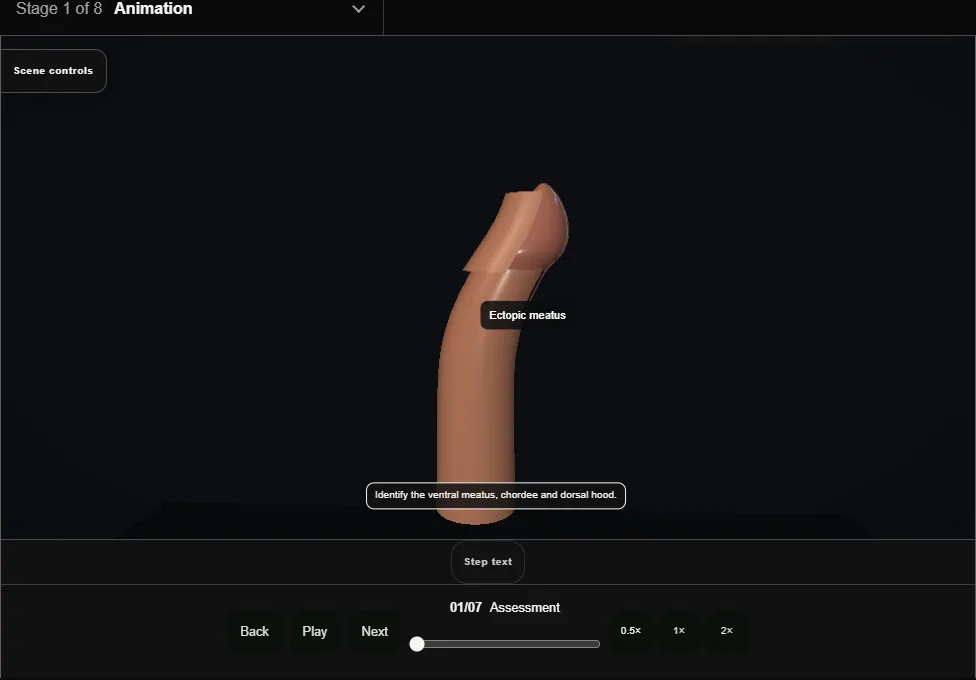

    Assessment

    Hypospadias repair: TIP. Step 1: Assessment. Captured frame from the interactive animation.
    • Three findings define the operation: the ectopic meatus on the ventral shaft, ventral chordee on the artificial erection test, and the hooded prepuce, deficient ventrally, which is the skin bank for cover.
  2. 02

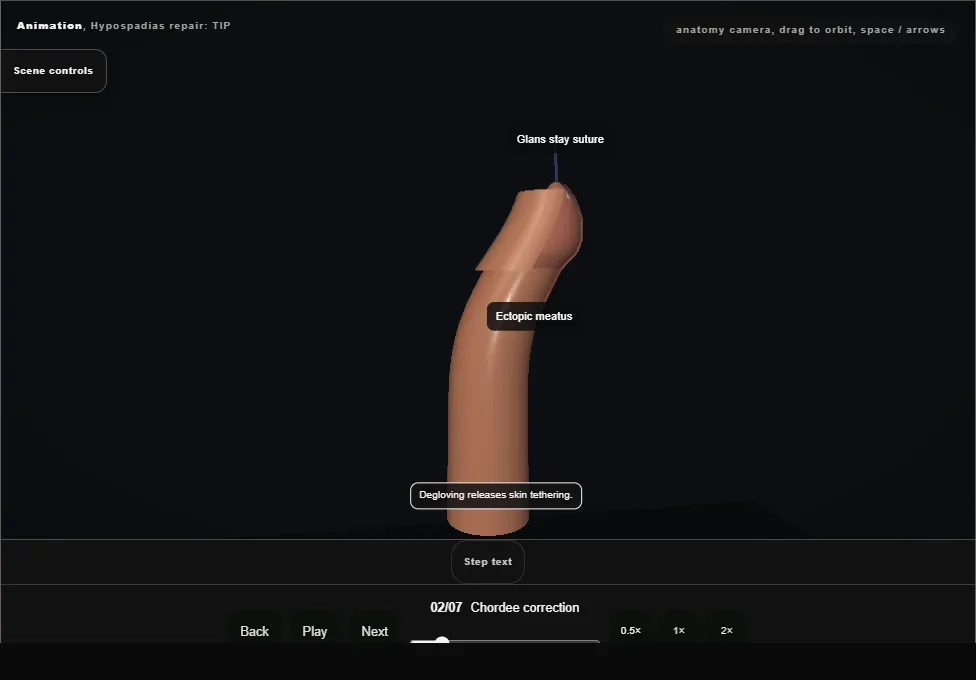

    Chordee correction

    Hypospadias repair: TIP. Step 2: Chordee correction. Captured frame from the interactive animation.
    • The penis is degloved to the root and erection repeated.
    • Residual bend after skin release is corrected by shortening the dorsal tunica at 12 o'clock, strictly midline, clear of the bundle either side.
  3. 03

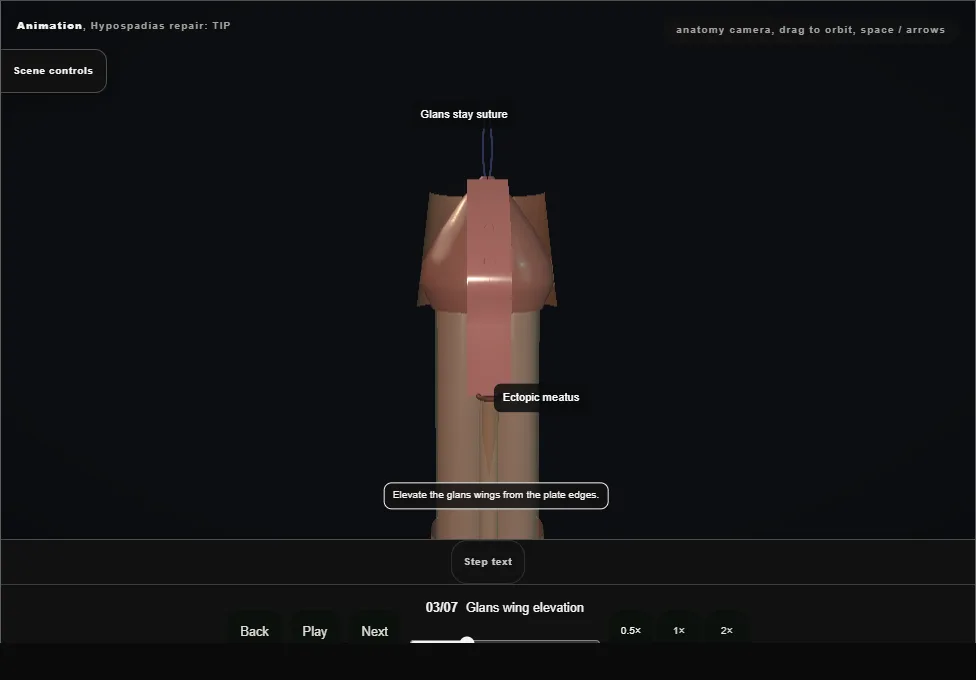

    Glans wing elevation

    Hypospadias repair: TIP. Step 3: Glans wing elevation. Captured frame from the interactive animation.
    • The glans wings are lifted off the lateral edges of the plate, so the plate is left standing as a bare midline strip from meatus to glans tip.
  4. 04

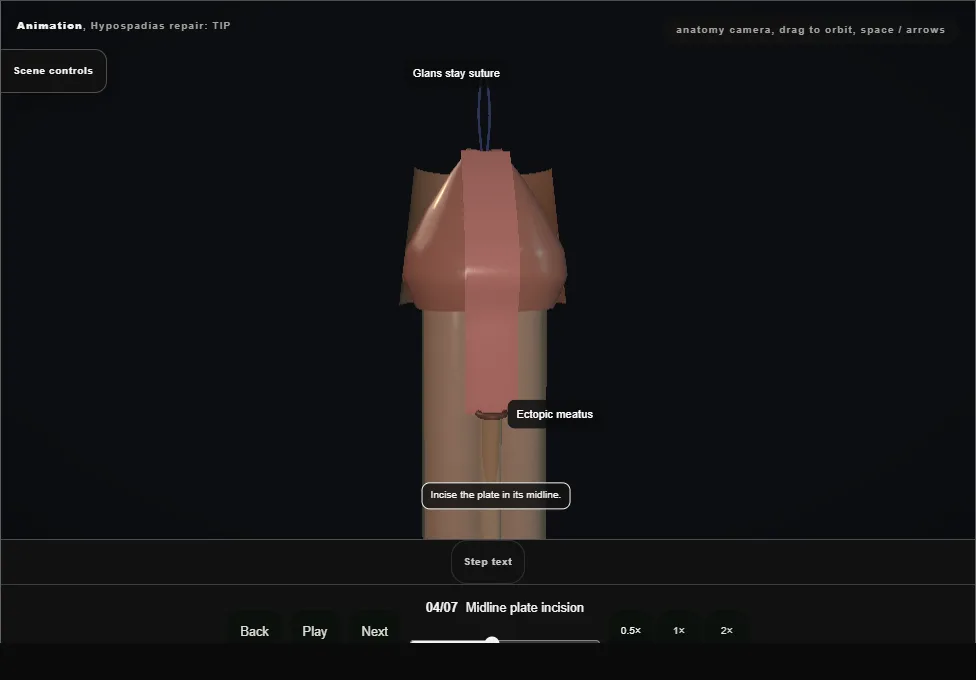

    Midline plate incision

    Hypospadias repair: TIP. Step 4: Midline plate incision. Captured frame from the interactive animation.
    • One deep midline incision along the plate relaxes and widens the strip.
    • Strictly in the midline: lateral cuts devascularise the plate the repair is built from.
  5. 05

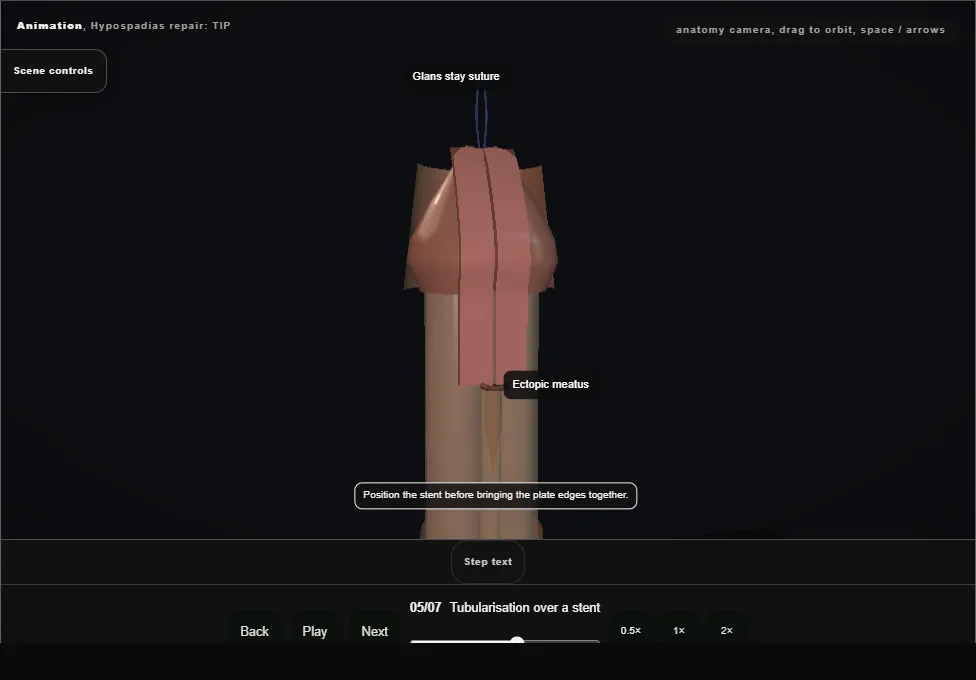

    Tubularisation over a stent

    Hypospadias repair: TIP. Step 5: Tubularisation over a stent. Captured frame from the interactive animation.
    • The lateral plate edges are brought together over a stent into a tube: a running subcuticular absorbable line, watertight and tension-free.
  6. 06

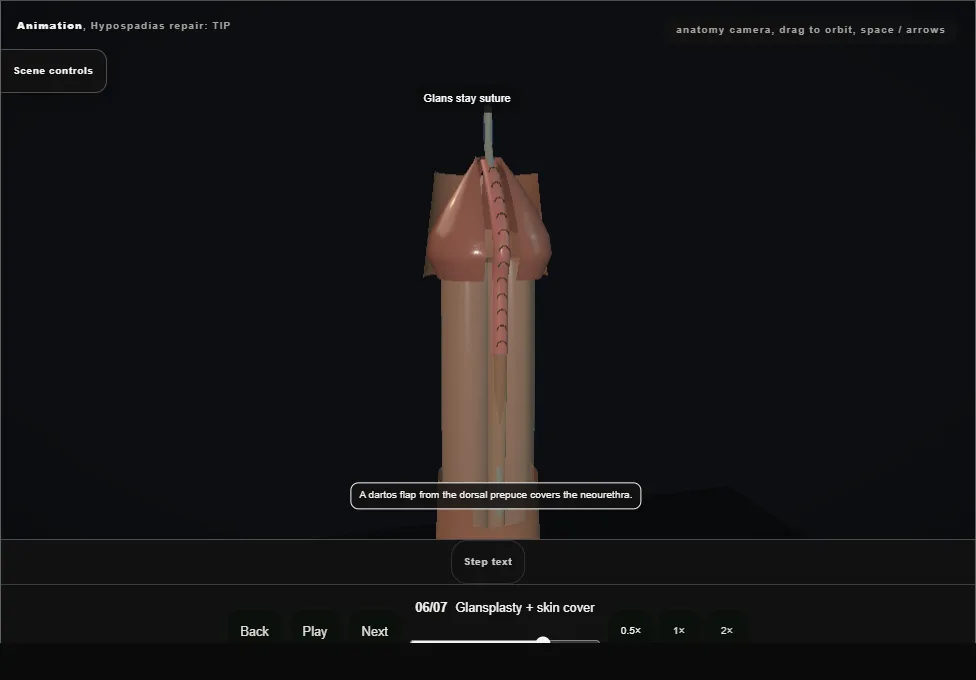

    Glansplasty + skin cover

    Hypospadias repair: TIP. Step 6: Glansplasty + skin cover. Captured frame from the interactive animation.
    • The glans wings fold back over the neourethra and the hooded skin is rotated ventrally to cover the shaft without tension.
  7. 07

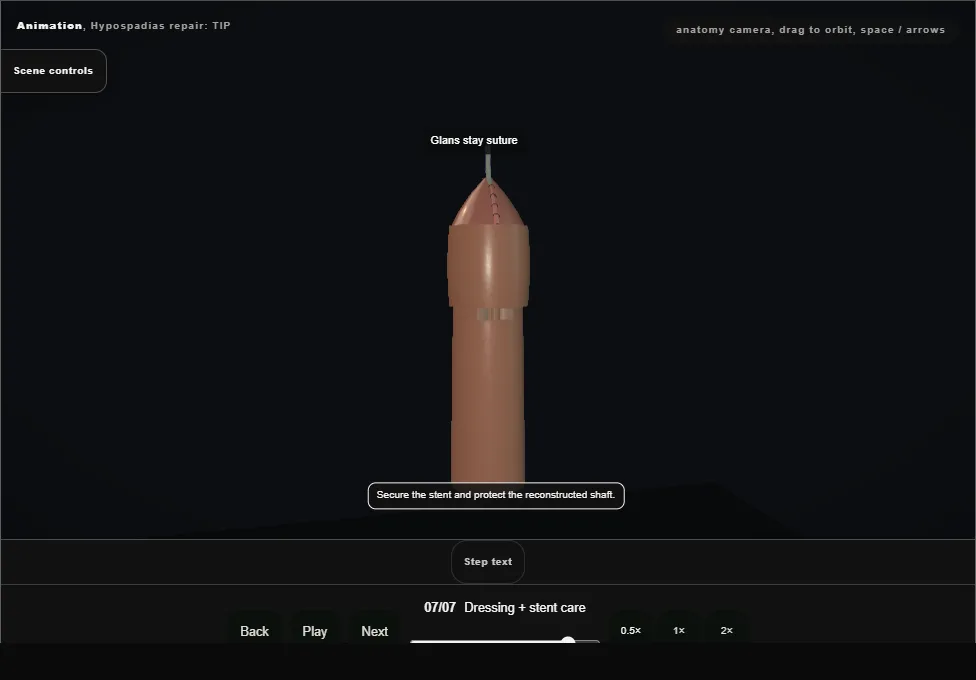

    Dressing + stent care

    Hypospadias repair: TIP. Step 7: Dressing + stent care. Captured frame from the interactive animation.
    • A firm dressing and the stent secured to stop traction on the repair.
    • The stent drains freely and comes out on the planned day, not before.

Derived from HypospadiasScene.tsx at build time: every step title and caption above is the authored ProcedureDef text, reproduced verbatim, and this page shares its readable-points renderer with the animation itself. 7 of 7 steps have a captured frame.

Text fingerprint 2a93de7014d1b472. A caption edit without a re-capture fails the production check, so the sheet and the animation cannot drift apart silently.
