Revision sheet

Partial penectomy

6 steps, each one the authored title and caption from the interactive animation, with the frame captured from that step. Read it before the case, or print it and work through the steps in order.

Teaching only, not for diagnosis or treatment decisions. The text on this sheet is the animation's own step copy, reproduced verbatim.

Open the animation All revision sheets Download the PDF

UrOops3D · UroRef · © Nity G

  1. 01

    Biopsy-proven glans tumour

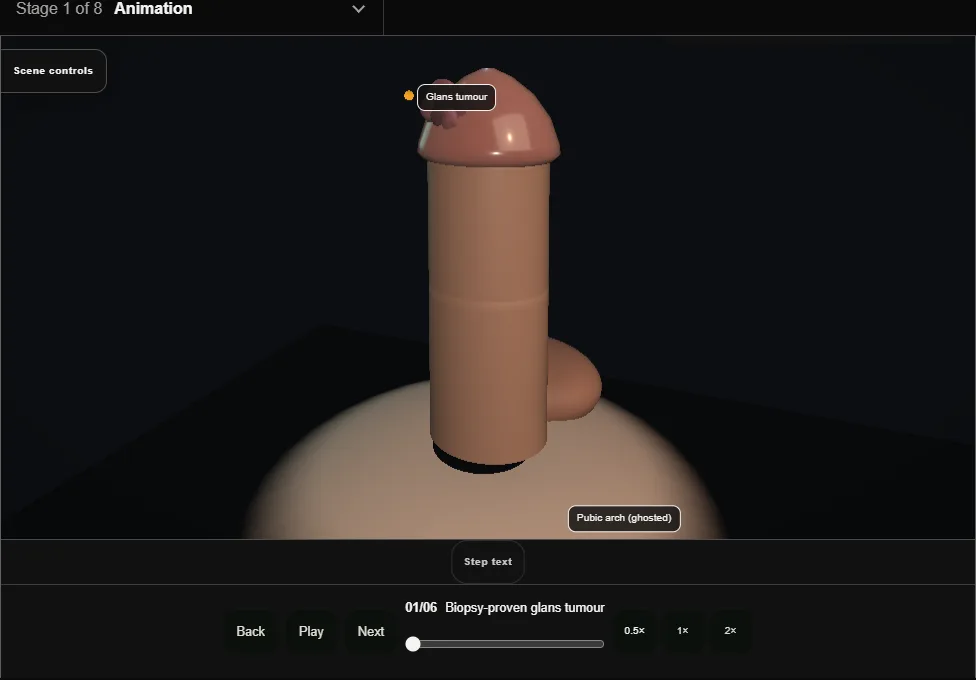

    Partial penectomy. Step 1: Biopsy-proven glans tumour. Captured frame from the interactive animation.
    • The diagnosis is confirmed on biopsy and staging imaging of the primary and groins is complete before theatre.
    • The tumour sits on the glans; the question the operation answers is how much penis must go with it.
  2. 02

    Proximal margin marked

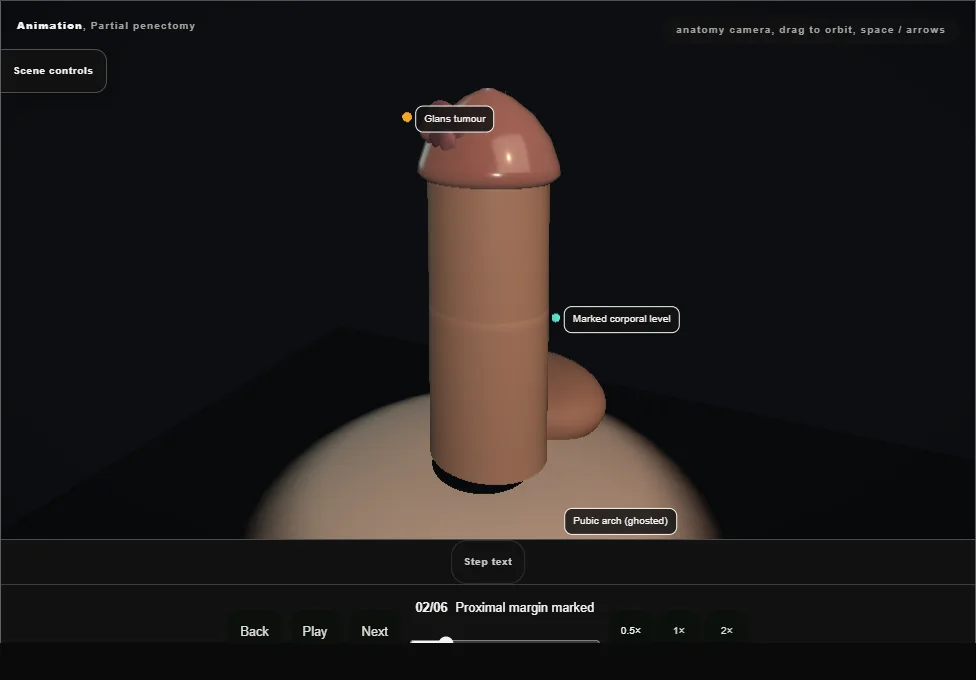

    Partial penectomy. Step 2: Proximal margin marked. Captured frame from the interactive animation.
    • A circumferential incision is marked proximal to the tumour with a clear margin in healthy skin.
    • The mark is the operation: it becomes the cut face, and the pathologist will judge the whole operation by it.
  3. 03

    Skin + corporal transection

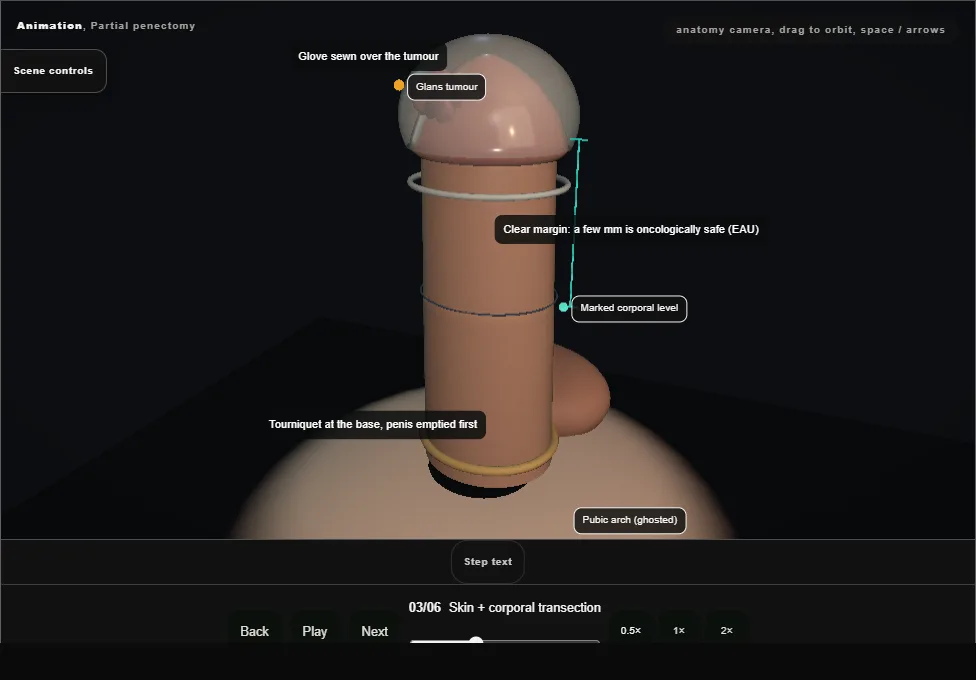

    Partial penectomy. Step 3: Skin + corporal transection. Captured frame from the interactive animation.
    • The skin is divided and the corpora cavernosa transected at the marked level, the dorsal bundle ligated as it is met.
    • Frozen section of the corporal margin is taken where available.
  4. 04

    Urethra divided with length

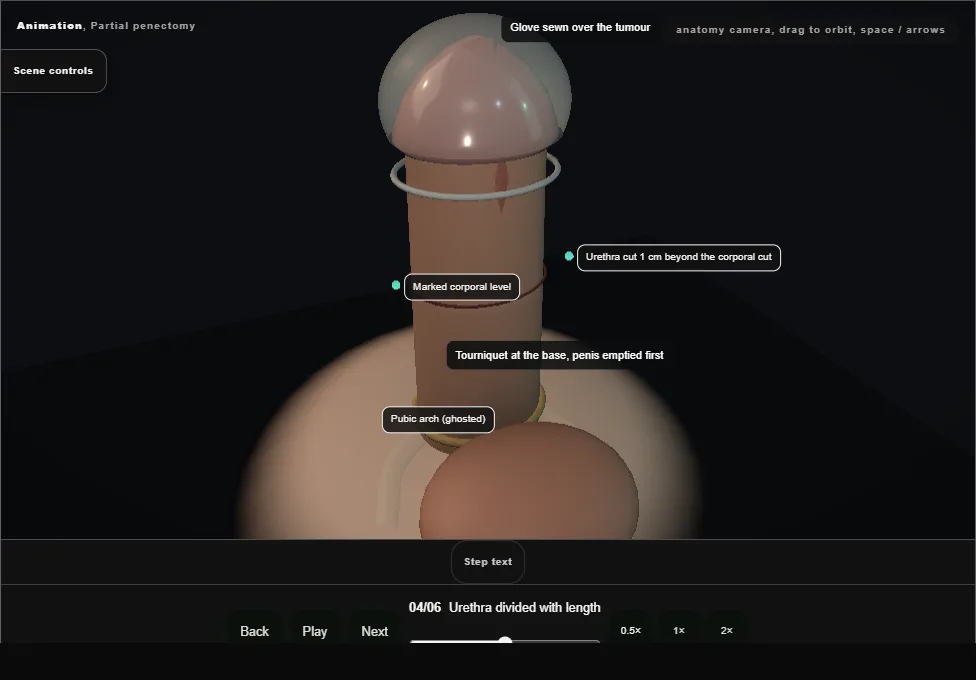

    Partial penectomy. Step 4: Urethra divided with length. Captured frame from the interactive animation.
    • The urethra is divided distal to the corporal stumps, keeping every spare millimetre of healthy urethra and spongiosum: length is what makes the new meatus reach the skin without tension.
  5. 05

    Spatulation + reconstruction

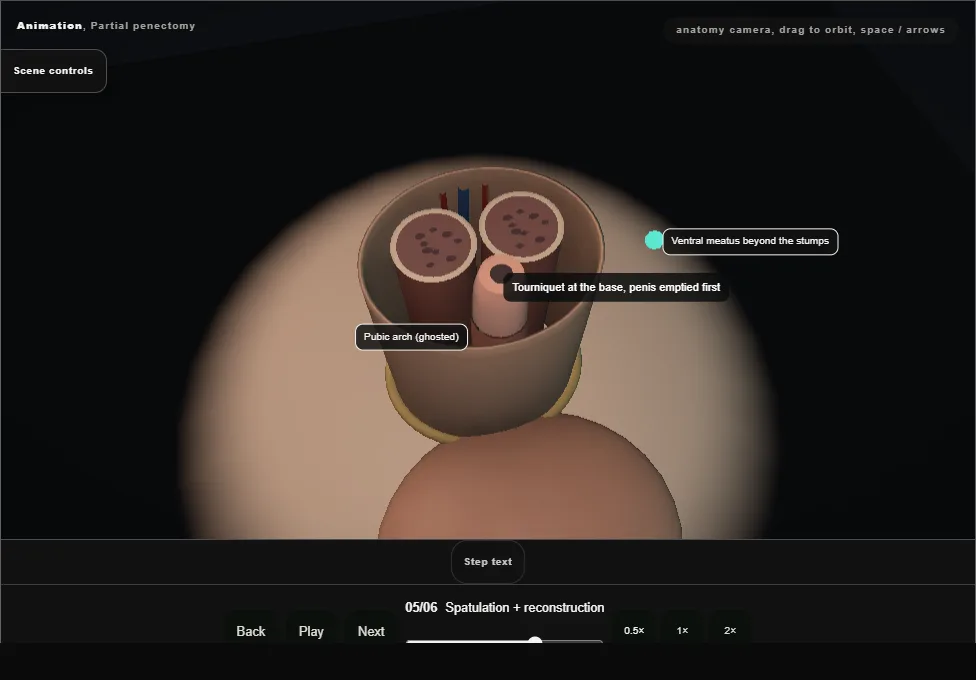

    Partial penectomy. Step 5: Spatulation + reconstruction. Captured frame from the interactive animation.
    • The corporal stumps are closed and the urethral tip is spatulated and sutured to the skin edge as a wide new meatus, with the skin closed over the stumps.
  6. 06

    Catheter + follow-up

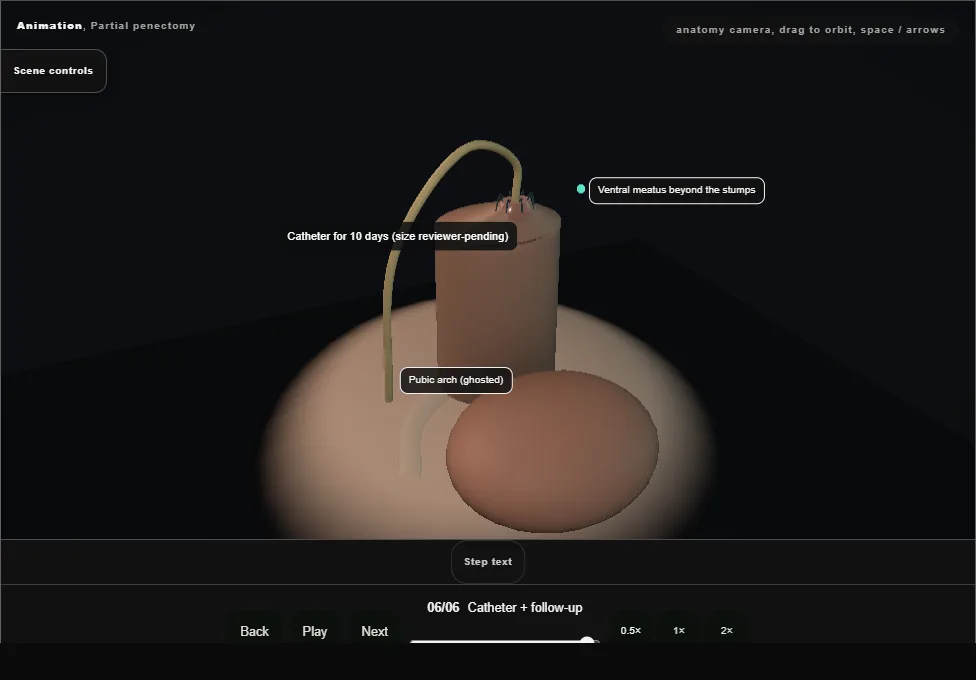

    Partial penectomy. Step 6: Catheter + follow-up. Captured frame from the interactive animation.
    • A catheter drains the reconstruction, and the groin nodes are staged on their own pathway: clinically impalpable groins are imaged or biopsied, not ignored.
